www.prolight.co.uk
Lil' Mix Controller
(Order code: LEDJ122)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lil’ Mix and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ledj Lil’ Mix

Summary of Contents for Ledj Lil’ Mix

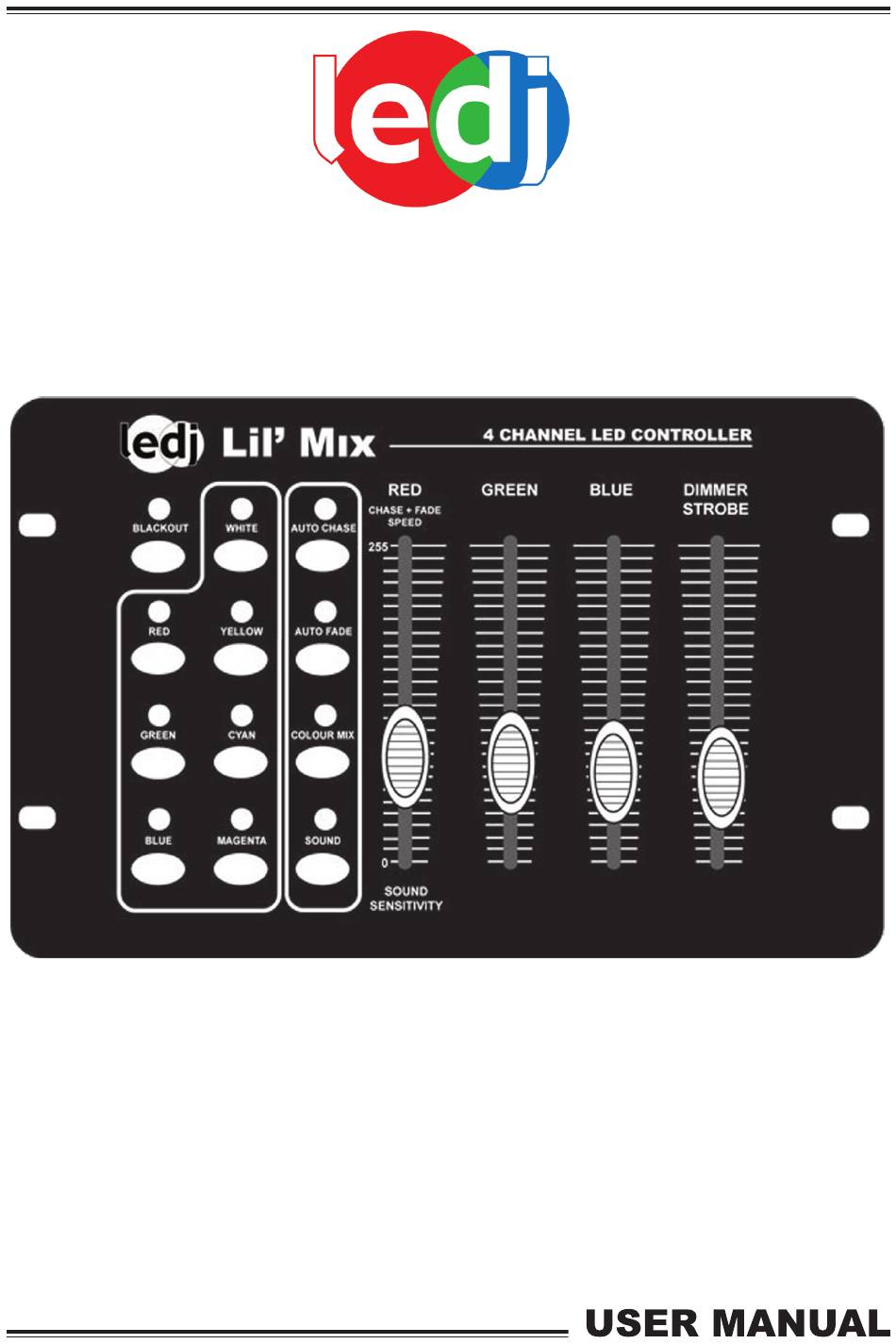

  • Page 1 www.prolight.co.uk Lil’ Mix Controller (Order code: LEDJ122)

  • Page 3: Operating Determinations

    IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! • Never remove warning or informative labels from the equipment. • Do not open the equipment and do not modify the equipment. • Do not switch the equipment on and off in short intervals, as this will reduce the system’s life. • Only use the equipment indoors. • Do not expose to flammable sources, liquids or gases. • Always disconnect the power from the mains when equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the power-cable. • Make sure that the available voltage is between 220v/240v. • Make sure that the power-cable is never crimped or damaged. Check the equipment and the power-cable periodically. • If the equipment is dropped or damaged, disconnect the mains power supply immediately.

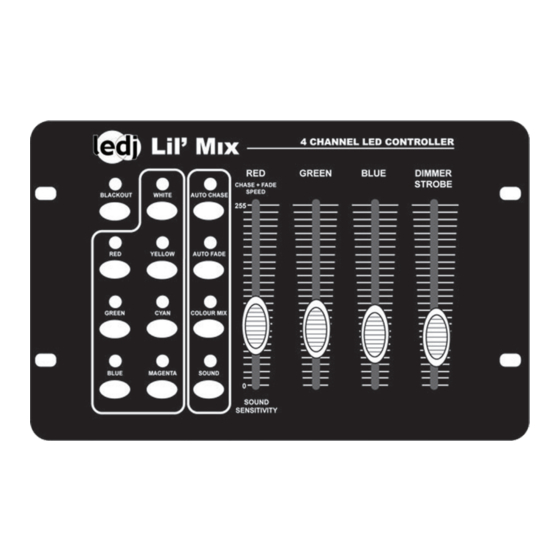

  • Page 4 Overview: Front: 4 CHANNEL LED CONTROLLER GREEN BLUE DIMMER STROBE CHASE + FADE SPEED BLACKOUT WHITE AUTO CHASE YELLOW AUTO FADE GREEN CYAN COLOUR MIX BLUE MAGENTA SOUND SOUND SENSITIVITY Rear: 1 = Ground 2 = Data- 3 = Data+ +9V-12V, 300mA min...

  • Page 5: Operation

    Features: For use with LEDJ 4 channel fixtures. 7 different hold colour buttons for instant colour selection, each colour with dimming control. 3 different buttons for Auto Chase, Auto Fade and Colour Mix. Each mode with speed control. Sound active function with adjustable sensitivity. Blackout & Strobe functions. Operation: 3, Colour Mix mode When you power up your Lil’ Mix, it will show “BLACKOUT” mode. In this mode you can create almost any colour by using the “RED”, “GREEN” and “BLUE” You are now ready to select any of the following modes of operation. sliders. You can then use the “DIMMER/ STROBE” slider to set the desired brightness 1, Colour Selection mode or strobe speed. In this mode you can select the colour us- ing one of the seven presets, you must use 4, Auto Fade mode the“DIMMER/STROBE” slider to set the desired brightness or strobe speed. In this mode the fade speed can be set by using the “RED” slider, you can also use the 2, Sound Active mode “DIMMER/STROBE”...
