Summary of Contents for Russell Hobbs RH9HPTD111

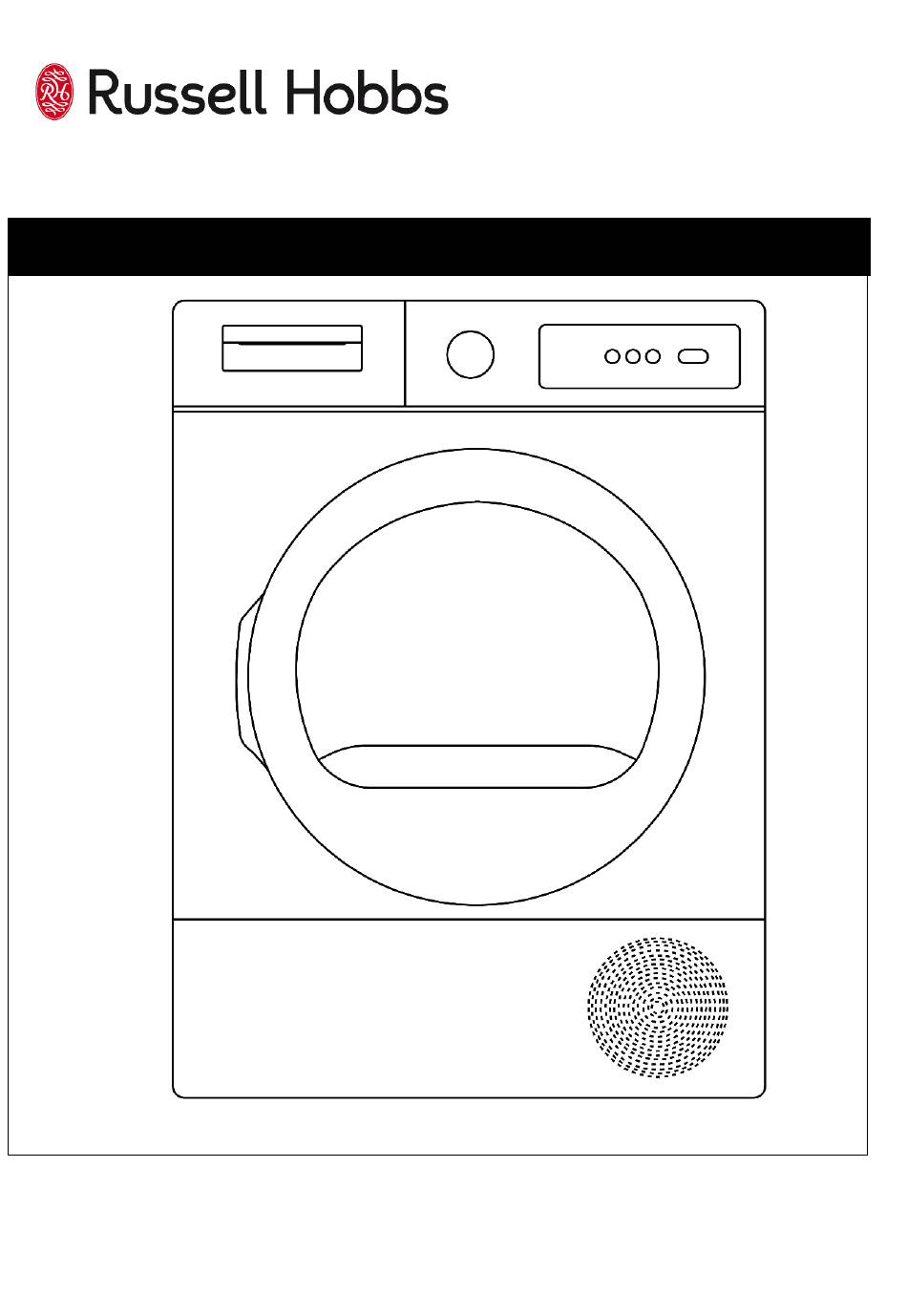

- Page 1 11 SERIES RH9HPTD111 Operating Manual HEAT PUMP DRYER...
-
Page 2: Guarantee
P a g e GUARANTEE At Russell Hobbs, we take all our customer feedback seriously. Feel free to contact our Customer Services Team who will be more than happy to assist you. This product is guaranteed for 12 months from the date of the original purchase. -
Page 3: Table Of Contents
P a g e CONTENTS Page Section Guarantee Safety Instructions Installation Guidance & Stacking Installation - Levelling Installation - Location Water Tank & Filter Heat Exchanger Functions & Buttons Operation Washing Symbols & Garment Care Cleaning Instructions Programs & Times Program Guide Problem Solving Error Codes... -
Page 4: Safety Instructions
P a g e IMPORTANT SAFETY INSTRUCTIONS • It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to electrical parts. •... - Page 5 P a g e IMPORTANT SAFETY INSTRUCTIONS DO NOT use appliance if it has been dropped, • damaged, left outdoors or dropped into water. Do not operate this appliance for anything other than its intended use • If unit is wet, do not plug unit into wall socket or turn unit on.
-
Page 6: Installation Guidance & Stacking
P a g e INSTALLATION CAUTION This appliance expels hot moist air, adequate ventilation must be provided around the appliance and in the room it is positioned. ALWAYS leave a minimum of 3cm around each side of the appliance (including the top). NEVER install this appliance behind a closable door as an integrated appliance, or in any other method which would result in blocking the tumble dryer door. -
Page 7: Installation - Levelling
P a g e INSTALLATION – LEVELLING THE FEET WARNING – we recommend a minimum of 2 people when moving or lifting the appliance. WARNING – only level the appliance with the feet supplied. DO NOT use cardboard, wood or similar materials to level the appliance. -
Page 8: Installation - Location
P a g e INSTALLATION – LOCATION Before installation ensure you have all parts and accessories as highlighted in the instruction manual. Ensure appliance is to be installed in a position it will remain above 0°C (32°F), storage below this temperature will lead to irreparable damage. -
Page 9: Water Tank & Filter
P a g e WATER TANK & FILTER ALWAYS empty the water tank after each cycle. ALWAYS clean the filter after each cycle. 11 Series Heat Pump Dryers Revision 1.9... -
Page 10: Heat Exchanger
P a g e | 10 HEAT EXCHANGER Regularly cleaning the heat exchanger prolongs the life of your dryer and prevents lint from building up and damaging the appliance. We recommend you clean the heat exchanger a minimum of every 1 month. Open the lower left door on the front of the appliance, and turn the two locks to remove. -
Page 11: Functions & Buttons
P a g e | 11 FUNCTIONS & BUTTONS Child Lock You can activate Child Lock on the appliance by simultaneously holding buttons ‘Drying Level’ and ‘Anti-Crease’ for at least 3 seconds. Once activated, ‘CL’ will flash on the display, and all functions will be locked. -
Page 12: Operation
P a g e | 12 OPERATION ALWAYS ensure the weight of the load does not exceed the maximum weight as outlined in this manual. Overloading will result in damage to the appliance. ALWAYS untangle laundry and remove any objects in pockets before placing in the appliance. -
Page 13: Washing Symbols & Garment Care
P a g e | 13 WASHING SYMBOLS & GARMENT CARE The below are a selection of the most common care label symbols that may appear on your clothing. Always follow the instructions on the care labels to ensure that there is no damage of shrinkage caused by incorrect drying. Machine Machine Machine... -
Page 14: Clean Filter
P a g e | 14 IMPORTANT! CLEAN THE FILTER EMPTY TANK ALWAYS LEAVE Empty the water tank after every drying cycle. DOOR ADJAR CLEAN FILTER AFTER CYCLE Remove lint from the filter CYCLE after every drying cycle. *Never remove the drawer during operation. 11 Series Heat Pump Dryers Revision 1.9... - Page 15 P a g e | 15 IMPORTANT! CLEAN THE FILTER EMPTY TANK ALWAYS LEAVE Empty the water tank after every drying cycle. DOOR ADJAR CLEAN FILTER AFTER CYCLE Remove lint from the filter after every drying cycle. CYCLE *Never remove the drawer during operation. 11 Series Heat Pump Dryers Revision 1.9...
-
Page 16: Clean Drum
P a g e | 16 IMPORTANT! CLEAN THE EXCHANGER CLEAN EXCHANGER ALWAYS LEAVE Vacuum the condenser at least every month. DOOR ADJAR CLEAN DRUM AFTER CYCLE Wipe the drum and seals with white vinegar. MONTH 11 Series Heat Pump Dryers Revision 1.9... - Page 17 P a g e | 17 IMPORTANT! CLEAN THE EXCHANGER CLEAN EXCHANGER ALWAYS LEAVE Vacuum the condenser at least every month. DOOR ADJAR CLEAN DRUM AFTER CYCLE Wipe the drum and seals with white vinegar. MONTH 11 Series Heat Pump Dryers Revision 1.9...
- Page 18 P a g e | 18 PROGRAMMES & TIMES 11 Series Prog. Time Function (mins)* Suitable for thick and multi-layer fabrics such as towels and Cotton Extra Dry pillowcases. Cotton Cupboard Suitable for underwear, pyjamas, tablecloths etc. Dries cotton laundry ready for ironing.
-
Page 19: Program Guide
P a g e | 19 PROGRAMME GUIDE 11 Series 9kg Max Load Energy Cons. Default Capacity** (kWh) Spin (RPM) Cotton Extra Dry 1000 Cotton Cupboard 2.12 1000 Cotton Iron Dry 1.86 1000 Synthetics Cupboard 4.5kg 0.98 Synthetics Iron Dry 4.5kg Delicates 1000... -
Page 20: Problem Solving
P a g e | 20 PROBLEM SOLVING Machine does not • Check it is plugged in turn on • Check the plug socket operates correctly using another appliance • Check the fuse • Check the dial is not in the ‘off’ position Drying takes a long •... -
Page 21: Error Codes
P a g e | 21 ERROR CODES Code Fault Solution Water Tank Full Remove and empty the water tank. Compressor connector is Contact customer services. disconnected Compressor NTC connector is Contact customer services. disconnected Door NTC connector is Contact customer services. disconnected If there is a storm or other electrical interference, wait until it is over... -
Page 22: Technical Specification
P a g e | 22 TECHNICAL SPECIFICATION RH9HPTD111 Heat Pump Tumble Dryer Dimensions (H)x(W)x(D) 9kg - 84.5 x 59.6 x 60.9cm Wattage 1000W Operating Voltage / Frequency 220-240V, 50Hz Current Max. Wet Load Capacity Energy Efficiency Rating Annual energy consumption... - Page 23 P a g e | 23 IMPORTANT! CLEAN DRAWER Wash the drawer with hot water at least once a month. CLEAN DRUM MONTH Wipe the drum and seals with white vinegar. This product is guaranteed for 12 months from the date of the original purchase.
- Page 24 Hindley Green, Wigan, WN2 4AY, United Kingdom Product Care (Ireland) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, T23 AT2P, Ireland. Russell Hobbs is the registered trademark of Spectrum Brands (UK) Ltd. The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
