Toto MA TX471MMAN Quick Start Manual

SPECIFICATIONS
Ø6
150±10
G½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2. Flow Regulator should not be remove because it could
damage the system
3. As the product model is constantly updated, the actual
product may not look the same as it shown in the
diagram, but the basic installation principles are the same.
4. The hot water supply side of the faucets is in a condition
of high temperature. Do not allow skin to contact with the
hardware surface directly. Otherwise,
scalding may occur.
S060413Z

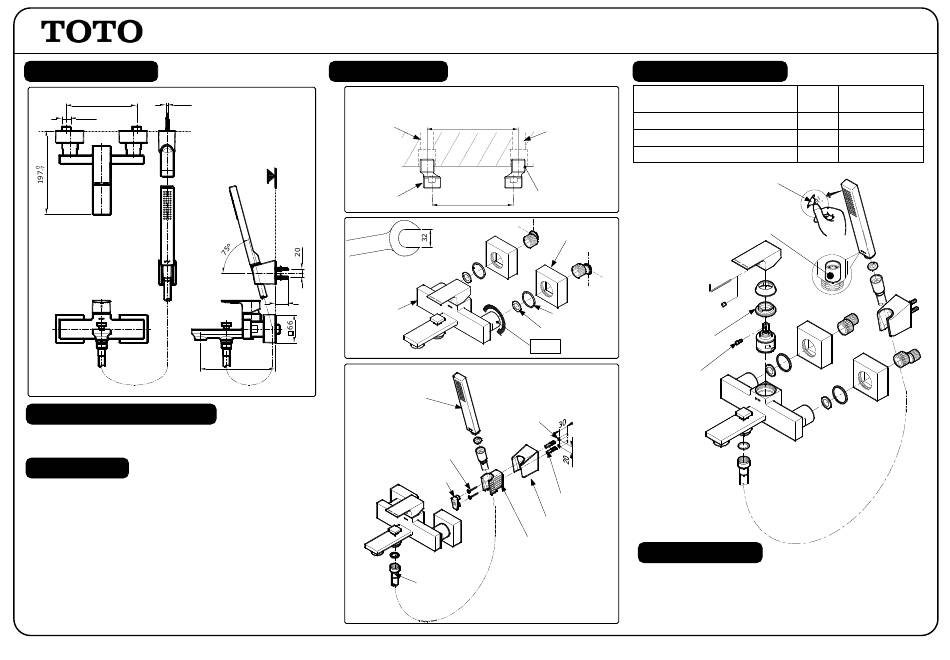

"MA" SINGLE LEVER BATH & SHOWER SET TX471MMAN
INSTALLATION
1
MOUNT CONNECTORS PARALLEL WITH THE WALL
Hot
Water
Supply
WALL
Leg
2
30
Body
*Tig the n the nut b y wrench.
0
176
-7
3
Hand Shower
Cold
150±10
Water
Supply
Use Seal tape
(Not Include)
150
Cover
O-Ring
Packing
Nut *
2 X Ø6 Ho les
Screw
Plug
Sleeve
Anchor
Bra cket
Hanger
Flexible Hose
w/ Packing
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory spray
Water leaks around the handle
Handle is loose
1. NOZZLES
Flow Regulator Inside
(Don t remove)
2. CONNECTING
NUT
3. BOLT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
SOLUTION
Clean
1
2 Tighten
3 Tighten
R6
