SPECIFICATIONS
150±10
G½
WALL
121
TX 471 SESM
"EGOII" Single Lever Bath & Shower Set
150±10
G½
121
TX 471 SESV1BR
"EGOII" Single Lever Bath & Shower Mi x er w/o Hand Shower Set
OPERATING CONDITIONS
1.
Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water.
Wipe entire surface completely dry with clean soft cloth. Many
cleaners may contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect the finish and
are not recommended for cleaning
S06249MS
"EGO II" SINGLE LEVER BATH & SHOWER SET TX471SESM

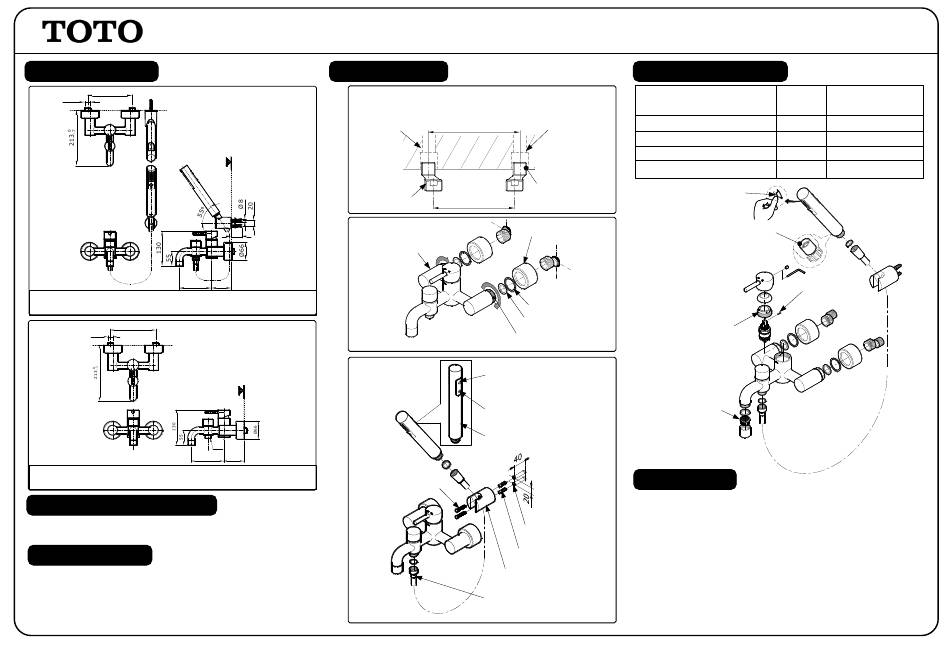

INSTALLATION
1
MOUNT CONNECTORS PARALLEL WITH
Hot
Water
Supply
Leg
2
40
Body
0
79
-7
*Tig the n the nut with wr ench
3
WALL
G½
0
79
-7
THE WALL
Cold
150±10
Water
Supply
Use Seal tape
(not i n clude)
150
Cover
O-Ring
Packing
Nut *
Massage
Spray Button
Rain Spray
Button
Hand Shower
Screw
2 X Ø 8
Holes
Sleeve
Anchor
Hanger
Flexible Hose
w/ Packing
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory spray
1
Flow rate unsatisfactory
2
Water leaks around the handle
3
Handle is loose
4
1. NOZZLES
Flow Regulator Inside
(Don t remove)
4. BOLT
3. CONNECTING
NUT
2. AERATOR
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2. Flow Regulator should not be remove because it could
damage the system
3. As the product model is constantly updated, the actual
product may not look the same as it shown in the
diagram, but the basic installation principles are the same.
4. The hot water supply side of the faucets is in a condition
of high temperature. Do not allow skin to contact with the
hardware surface directly. Otherwise,
scalding may occur.
SOLUTION
Clean
Remove and clean
Tighten
Tighten
