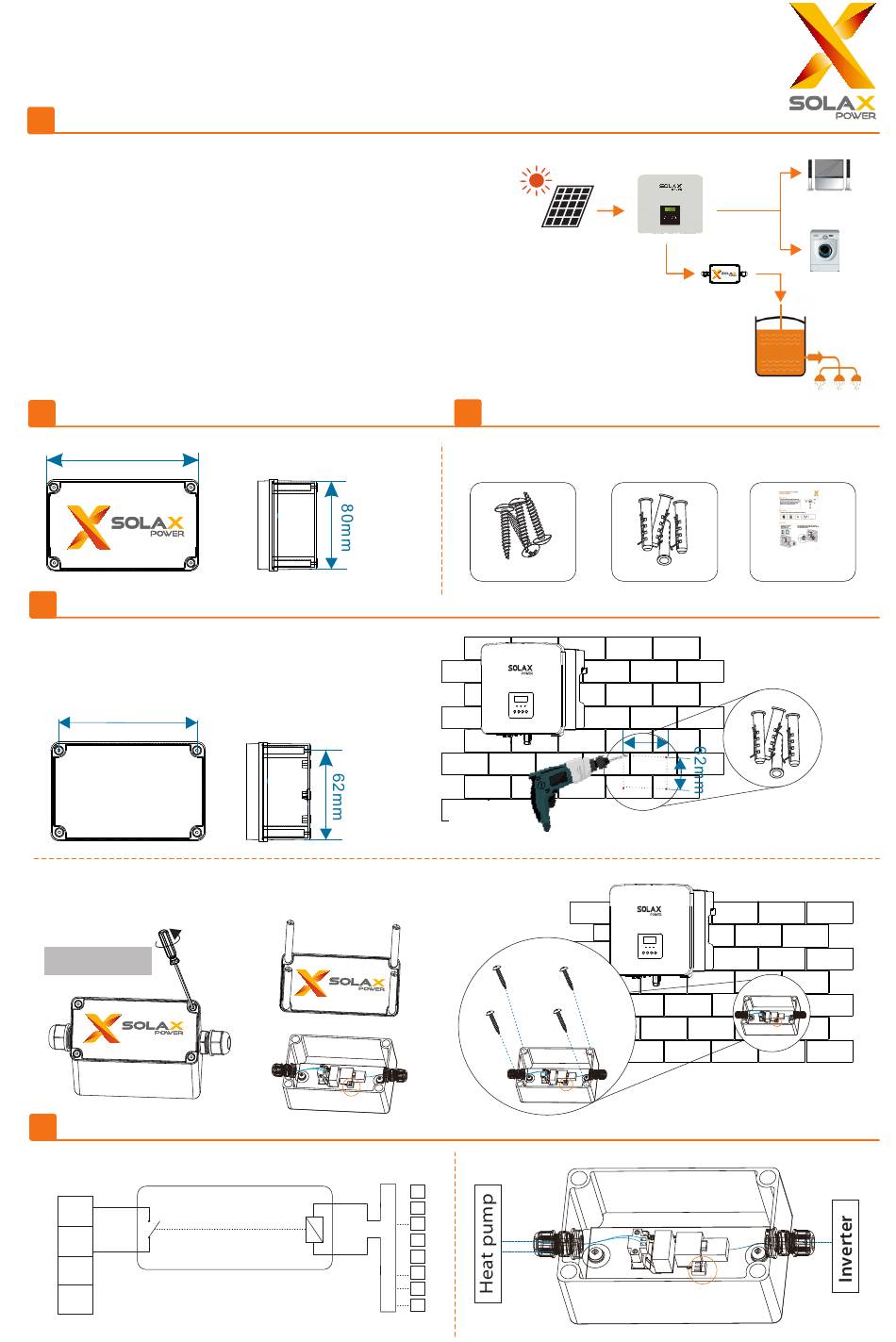

Solax Adapter Box Quick Installation Manual

Quick Installation Guide

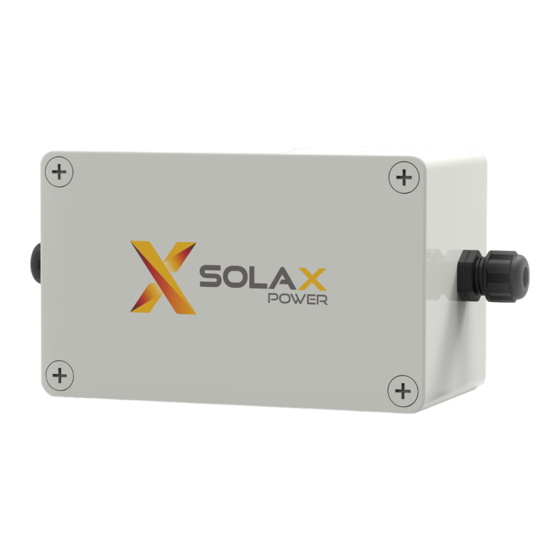

SolaX Adapter Box
Introduction
I
SolaX Adapter box is matched with a heat pump with dry
contact function, which can realize heat pump integrated
photovoltaic inverter energy system management. The
inverter can control the Adapter box to use solar energy
efficiently according to the requirements set by the user (grid
power, battery capacity, time, etc.) Supplying heat pumps is
generally applicable when there is surplus solar energy and
battery storage capacity. This part of the energy can be used
to heat the heat pump within the required temperature
range. Please read this guide carefully before using.
Overview
II
130mm
Mounting
IV
- Drill holes withφ6 drill.
Depth: at least 30mm.
- Tighten the expansion tubes.
113mm
- Dismantle the upper cover of the SolaX Adapter Box.
- Pass the expansion screws through box installation channels.
Screw the expansion screws.
Slotted screwdriver
torque:1.5±0.1Nm
V Wiring
Pictorial wiring diagram:
K4
K3
K2
Note: Adapter Box is generally suitable for heat
pumps with dry contact function. K3/K4 needs
K1
to be connected to the dry contact on the heat
Heat pump
pump to control it.
Packing List
III
- Check that if there is any distortion or impaired during
transportation.
Expansion screws X4
φ6 Drill
(Depth :30 mm)
1 1
2 2
3 3
K4
4 4
5 5
K3
6 6
7 7
8 8
Inverter
Heat pump
Quick installation
Expansion tubes X4 guide X1
113mm
Hot water
01
