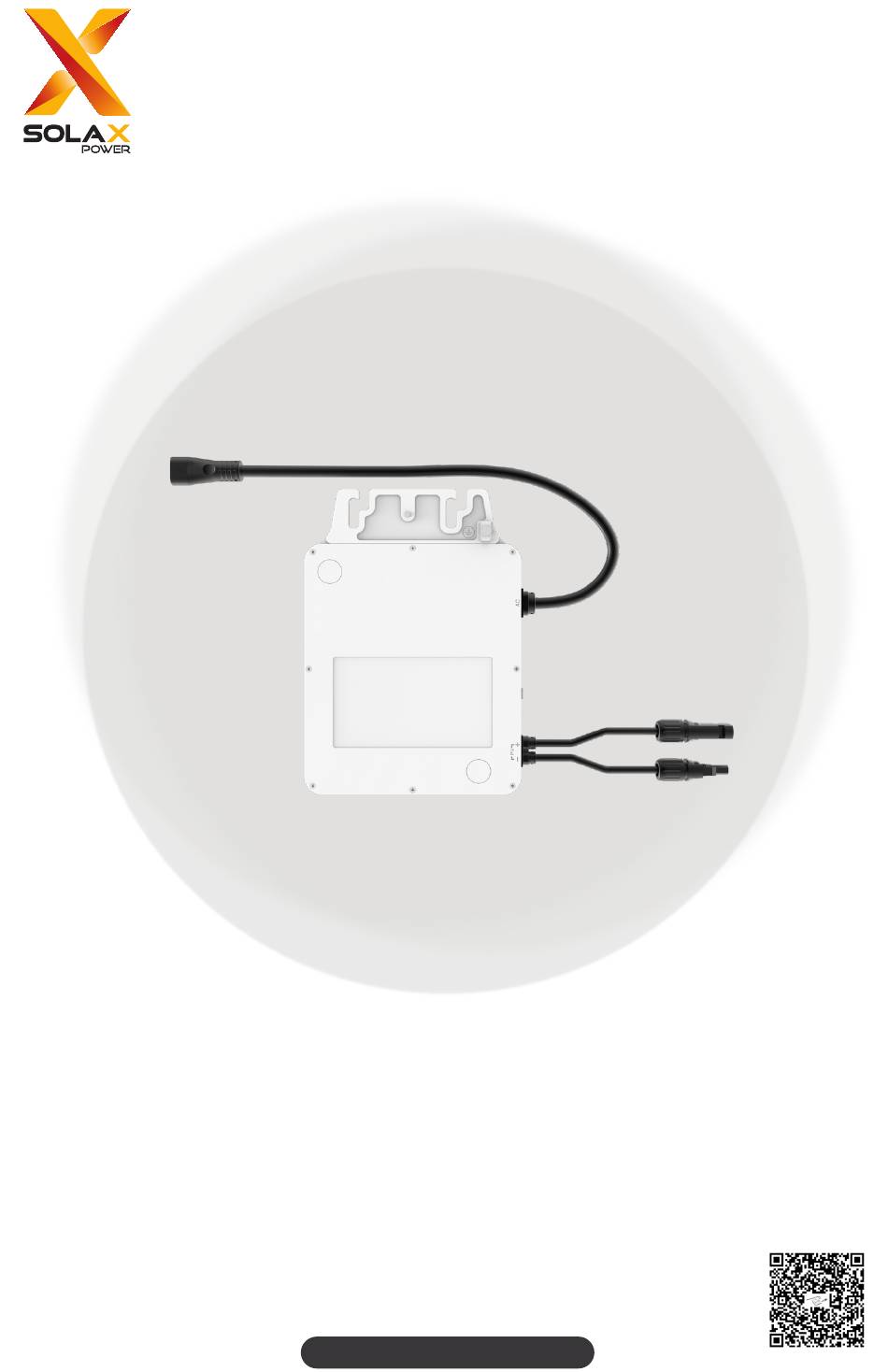

- Page 1 A1-Micro 1 in 1 300 W / 400 W / 450 W / 500 W/ 600 W Installation Manual Version 1.0 www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/...
- Page 2 North American and International safety standards. However, like all electrical and electronic equipment, safety precautions must be observed and followed during installation and operation of the A1-Micro 1 in 1 series microinverter to reduce the risk of personal injury and to ensure a safe installation. Installation, commissioning, service, and maintenance of A1-Micro 1 in 1 series microinverter must only be performed by authorized personnel that are licensed and/or satisfy state and local jurisdiction regulations.
- Page 3 • This document does not replace and is not intended to replace any local, state, provincial, including without limitation applicable in the jurisdiction of installation. SolaX assumes no responsibility for the compliance or non-compliance with such laws or codes in connection with the installation of the product.
- Page 4 GFDI device as required by the Article 690 of the NationalElectrical Code for the installation location. CAUTION! • A1-Micro 1 in 1 series microinverter only supports a certain type of lithium-ion battery! (Manufacturer certified battery) CAUTION! •...
- Page 5 CAUTION! • The unit contains capacitors that remain charged to a potentially lethal voltage after the MAINS , battery and PV supply have been disconnected. Hazardous voltage will be present for up to 5 minutes after disconnection from the power supply. CAUTION! •...
-
Page 6: Packing List
NOTICE! • GFDI is installed outside the microinverter and connected between the DC input negative terminal and the PE terminal to achieve negative grounding of the photovoltaic module NOTICE! • Overcurrent protection for the ac output circuit is to be provided by the user, installer and agent and installed on the end of the bus in the distributor box. -
Page 7: Installation Site
Installation Site -40°C to 70°C (-40°F to 158°F) TYPE 6 0-100%RH No snow lay up No direct sunlight No rain exposure Near combustibles Near antenna Installation Tools Cable tie Multimeter Measuring tape Utility knife Torque screwdriver Marker (Phillips head: M8) Diagonal pliers Allen key Wire cutter... - Page 8 Installation Angle Parallel to PV module Additionally Required Materials Required Material Requirements Current: 50A for 10 AWG/40 A for 12 AWG (If there AC circuit breaker are additional safety regulations, please refer to the local safety regulations) Guide rail At least two guid rails Sliding block Matching with the guide rail Screw...
- Page 9 Maximum over A1-Micro 4500P A1-Micro 500P current protection device Maximum number per 10 AWG branch Maximum number per 12 AWG branch Maximum over current A1-Micro 600P protection device Maximum number per 10 AWG branch Maximum number per 12 AWG branch An AC branch can connect to 1-in-1/2 in 1/4-in-1 microinverters at the same time, provided that the total current is less than the AC branch circuit capacity stipulated in local rules and regulations.
- Page 10 Terminal Description Item Description Earth lug A connection component for electrical devices which need grounding. AC terminal For AC connection. Indicator Show the status of the equipment. PV terminals For PV connection.
-
Page 11: Mechanical Installation
Mechanical Installation 9±0.1 N·m NOTICE! • Choose the screwdriver according to the corresponding screws of the rail. NOTICE! • In order to better fix the AC trunk cable, it is recommended to use more cable ties to band the AC trunk cable. •... - Page 12 NOTICE! • When connecting AC cables in the middle, please follow the diagram below. Female Male Female Male Male Click...
- Page 13 NOTICE! • Avoid placing AC connectors nearby any drainage channels. • If you need to disconnect the AC connector from the AC cable, use the AC Trunk Port Disconnect Tool (see packing list). paste PE Connection NOTICE! • Choose the suitable grounding method according to local safety regulations. Method 1 (major grounding method): Let the earth lug touch the rail.
-
Page 14: Dc Side Connection
DC Side Connection WARNING! • Please connect PV terminals in the correct way. Reverse connection may damage the microinverter! NOTICE! • The PV line length should be less than 3 m. • If the pannels are too far from the microinverter, please use DC extension cable for connection. -
Page 15: On-Site Inspection
Power on the System Step 1: First turn on the AC breaker on the branch circuit and then the main AC breaker of the house. Step 2: Wait for about 2 minutes until the system is initiated. Please install microinverters in the middle of pv modules as much as possible . AC junction box Red-L Black-N... - Page 16 Step 2: Register an account and log in . XXXXXXXXX XXXXXXXXX NOTICE! • Before configurating network, please make sure that A1-Micro 1 in 1, ECC and ECC- PLC have been connected as a system. Step 3: Add a site. XXXXXXX...
- Page 17 NOTICE • Click the corresponding notice to know more details about how to Add Site. If you don't need reading these notices, click Skip. Step 4: Bind ECC in the added site.
- Page 18 Step 5: Cofigurate network for ECC. xxxxxxxxxxxxxx xxxxxxxxxxxxxx XXXXXXXXXXXX xxxxxxxx 是非成败转头 WIFI_XXXXXXX WIFI_XXXXXXX NOTICE • After ECC configuration succeeds, the connected ECC-PLC will show on the Gateway list. • Remember to switch to your home WiFi for the subsequent operation.
- Page 19 Step 6: Enter the Device Detail interface, click Manage sub devices and collecting sub devices to bind A1-Micro 1 in 1.
- Page 20 Step 7: After binding A1-Micro 1 in 1, click Chart to see more detail information. XXXXXXXXXXXXXX XXXXXXXXXXXXXX XXXXXXXXXXXXXX XXXXXXXXXXXXXX XXXXXXXXXXXXXX XXXXXXXXXXXX Step 8: Click Expand to check the data and graphics. XXXXXXXXXXXXX XXXXXXXXXXXXX XXXXXXXXXXXXX...
- Page 21 LED Indicator Status LED Indicator Status Description Microinverter startup. If the light flashes twice in 1s, flashes in 10s or still flashes Yellow light flash after 10s, microinverter startup fails. Yellow light steady on Microinverter standby/self-checking. Green light flash (5s) Normal operation;...
- Page 22 • AC Output A1-Micro A1-Micro A1-Micro A1-Micro A1-Micro Model 300P 400P 450P 500P 600P Rated output apparent power [VA] Maximum continuous output power [VA] Nominal AC voltage [a.c. 240/211-264 V]¹ Nominal AC frequency / 60/55-65 range [Hz]¹ Rated output current [a.c. 1.25 1.67 1.88...
-
Page 23: Contact Information
Contact Information AUSTRALIA UNITED KINGDOM Unit C-D Riversdale House, Riversdale 21 Nicholas Dr, Dandenong South VIC 3175 Road, Atherstone, CV9 1FA +61 1300 476 529 +44 (0) 2476 586 998 service@solaxpower.com service.uk@solaxpower.com TURKEY GERMANY Fevzi Çakmak mah. aslım cd. no 88 A Am Tullnaupark 8, 90402 Nürnberg, Karatay / Konya / Türkiye Germany... - Page 24 Add: Unit C-D Riversdale House, Riversdale Road, Atherstone, CV9 1FA Tel: +44 (0) 2476 586 998 E-mail: service.uk@solaxpower.com Authorised Representative (AUS) Name: SolaX Power AUS Pty Ltd Add: 21 Nicholas Dr, Dandenong South VIC 3175 Tel: +61 1300 476 529 E-mail: service@solaxpower.com...
-
Page 26: Warranty Registration Form
Date of Delivery Signature Please visit our warranty website: https://www.solaxcloud.com/#/warranty or use your mobile phone to scan the QR code to complete the online warranty registration. For more detailed warranty terms, please visit SolaX official website: www.solaxpower.com to check it. - Page 27 SolaX Power Network Technology (Zhejiang) Co., Ltd. ADD.: No. 278, Shizhu Road, Chengnan Sub-district, Tonglu County, Hangzhou, Zhejiang, China E-mail: info@solaxpower.com www.solaxpower.com Copyright © SolaX Power Network Technology (Zhejiang) Co., Ltd. All rights reserved. 320102118101...
