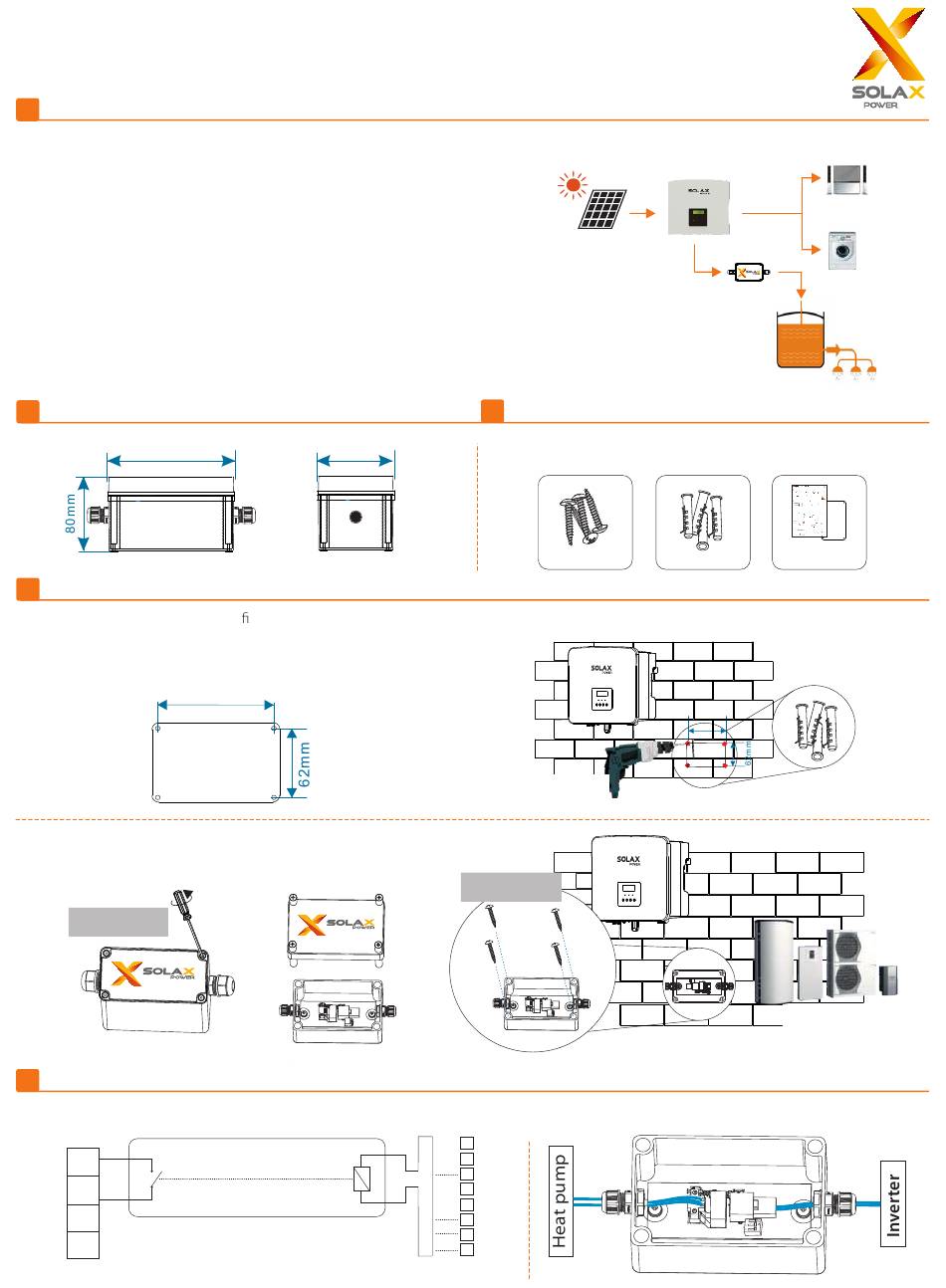

Solax Adapter Box Quick Installation Manual

Quick Installation Guide

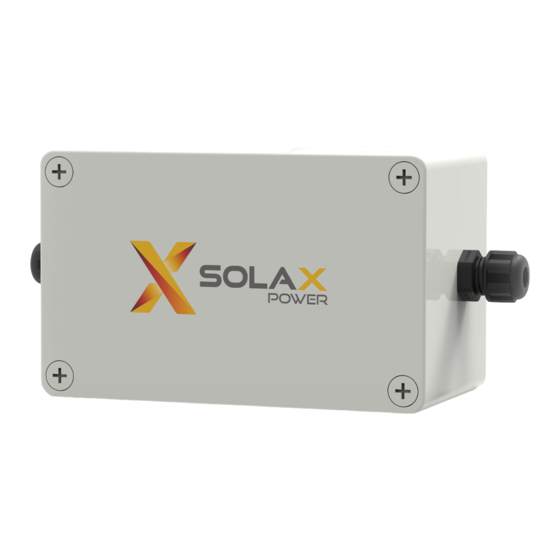

SolaX Adapter Box
Introduction
I
SolaX Adapter box is matched with a heat pump with dry
contact function, which can realize heat pump integrated
photovoltaic inverter energy system management. The inverter
can control the Adapter box to use solar energy efficiently
according to the requirements set by the user (grid power,
battery capacity, time, etc.) Supplying heat pumps is generally
applicable when there is surplus solar energy and battery
storage capacity. This part of the energy can be used to heat
the heat pump within the required temperature range. Please
read this guide carefully before using.
Overview
II
130mm
Mounting
IV
- Use the marking cardboard to x it on the wall and determine the location of the hole.
Drill holes withφ6 drill.
Depth: at least 30mm.
- Tighten the expansion tubes.
112mm
- Dismantle the upper cover of the SolaX Adapter Box.
- Pass the expansion screws through box installation channels.
Screw the expansion screws.
Slotted screwdriver
torque: 0.5±0.1Nm
Wiring
V
Connection diagram of the external relay for the Smart Grid Ready control of a heat pump.
(For the dry contact K3/K4 wiring on the heat pump, please refer to the heat pump quick installation guide)
K4
K3
K2
Note: Adapter Box is usually suitable for heat pumps
with dry contact function. The connection of the Inverter's
K1
communication 3/6/7/8pin dry contact and the dry
Heat pump
contact K3/K4 on the heat pump is controlled.
Packing List
III
- Check that if there is any distortion or impaired during
71mm
transportation.
Slotted screwdriver
torque: 1.2±0.1Nm
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
Inverter
Expansion screws X4 Expansion tubes X4
112mm
φ6 Drill
(Depth: 30 mm)
Note: Please choose a place where the Adapter
box is not directly exposed to the sun.
K4
K3
Hot water
Heat pump
Quick installation
guide X1
Marking cardboard X1
Heat pump
01
