CODES - THE BASICS

• The KitLock has four code levels available:
  1. Master Code
  2. Sub-Master Code
  3. User Code
  4. Technician Code
• The KitLock is supplied with two factory set codes:
  Master Code: 11335577
  User Code: 2244
• When fitted, immediately change the Master Code and User Code.
• All Master Codes and Sub-Master Codes are 8 digits long.
• All User Codes are 4 digits long.
• All Technician Codes are 6 digits long.
• The lock 'open' time is set at 4 seconds.

FUNCTIONS

Before programming, select the most appropriate function for the application:
A) or B) - See special Master Code set up commands.

1. PRIVATE USE

   This is the default function and is already pre-programmed in new locks.
   This is the most common function and is used where the same code will be repeatedly used.
2. PUBLIC USE
   The user enters their own personal four-digit code.

   This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next new user.

   This function is used for short term, multi occupancy applications, e.g. a locker in a leisure centre.

OPERATING INSTRUCTIONS

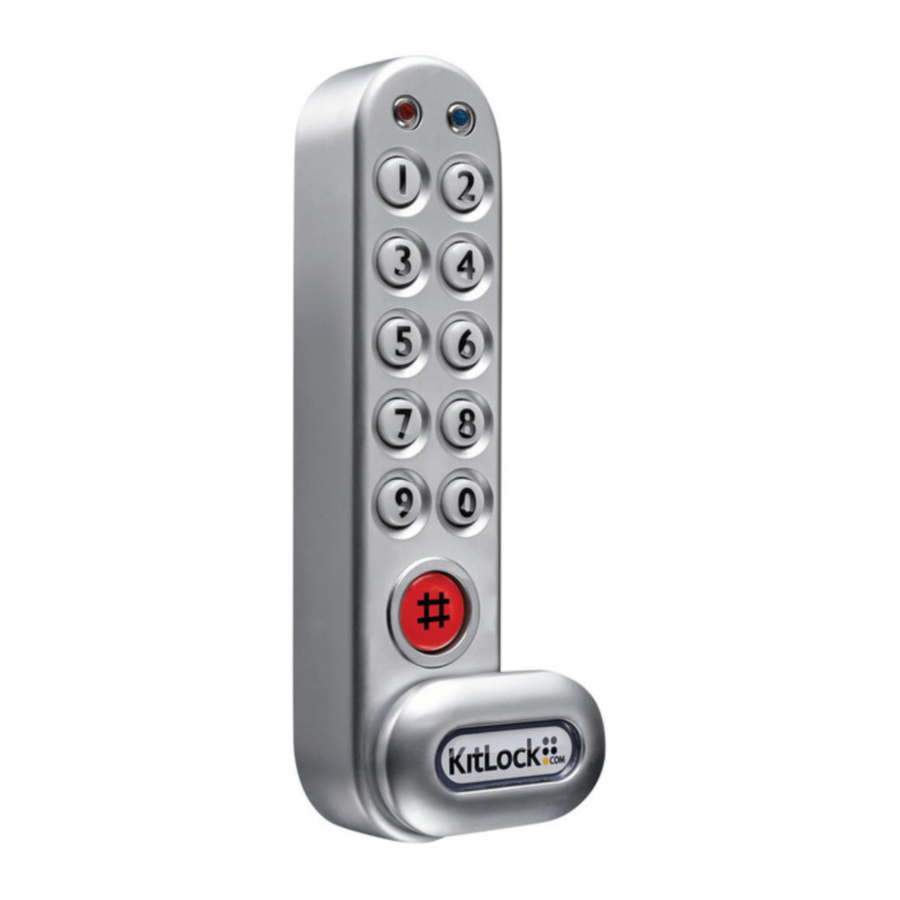

Note: The KitLock has a 10 button Blue LED = Code accepted keypad and a # button.
The # button is hidden beneath the Red LED = Code rejected handle when in the locked position.

Blue LED = Code accepted
Red LED = Code rejected

CODES

The lock has the following code levels:

MASTER CODE

The Master Code can:

• Open the lock
• Change the Master Code
• Set / Change / Delete the Sub-Master and User Code
• Select between Private and Public Functions
• Activate/deactivate Technician Code

SUB-MASTER CODE

The Sub-Master Code can:

• Open the lock
• Change the Sub-Master
• Set / Change / Delete / the User Code

USER CODE

The User Code can:

• Open the lock
• Change the User Code

TECHNICIAN CODE

The Technician Code can:

• Open the lock

A code cannot be programmed into more than one level.

LOST CODE PROCEDURE

Note: The procedure requires the door to be open

• Remove the rear-fixing bolt and swing the lock over the edge of the door to reveal the battery compartment.
• Remove one battery.
• Press and hold the 1 button, replace the battery, the Blue LED will flash twice, release the 1 button. Within three seconds press the 1 button three times. The Blue LED will flash twice and the lock will have reverted to the factory Master Code 11335577 and all other stored settings will be erased.

PENALTY TIME

• Entering three incorrect codes will cause the lock to shutdown for 10 seconds.

BATTERY POWER

• The KitLock should provide well in excess of 15,000 openings, of 4 seconds each, from 2 x AAA 1.5v cells.

LOW BATTERY

• When the battery power is low the
  Red LED will flash 3 times before the
  Blue LED lights, accepting the code. Fit new batteries as soon as this happens. The lock will operate for 100 times with low battery.

BATTERY FAILURE OVERRIDE

The KitLock has been designed so an external PP3 battery can be placed against the contact points surrounding the Blue and Red LED's so the lock can be opened to replace the batteries should they fail.

The procedure is as follows:

• Place the contact points of the PP3 battery against the contact points surrounding the Blue and Red LED's.
• The positive + PP3 terminal against the Red LED contact point and the negative – PP3 terminal against the Blue LED.
• Enter the Master Code.
• The motor will withdraw the locking pin allowing the lock to be opened.
• Fit new batteries by removing the upper fixing bolt and swinging the lock down over the edge of the door. Refit the lock.

PROGRAMMING

To program – the lock must be in the open position with the # button visible.
Every program command must commence by pressing the # button, followed by either the Master Code, Sub-Master Code or User Code.

MASTER CODE COMMANDS

CHANGE THE MASTER CODE

#Master Code 01 New Master Code New Master Code
Example: #11335577 01 12345678 12345678
Result: Master Code has been changed to 12345678.

SET OR CHANGE THE USER CODE

#Master Code 02 User Code
Example: #11335577 02 9999
Result: New User Code 9999 now operative.

DELETE USER CODE

#Master Code 03
Example: #11335577 03
Result: User Code deleted.

SET OR CHANGE THE SUB-MASTER CODE

#Master Code 04 Sub-Master Code Sub-Master Code
Example: #11335577 04 87654321 87654321
Result: Sub-Master Code 87654321 now operative.

DELETE THE SUB-MASTER CODE

#Master Code 05 05
Example: #11335577 05 05
Result: Sub-Master Code deleted.

SUB-MASTER CODE COMMANDS

CHANGE THE SUB-MASTER CODE

#Sub-Master Code 06 New Sub-Master Code
New Sub-Master Code
Example: #87654321 06 10101010 10101010
Result: Sub-Master Code has been changed to 10101010.

SET OR CHANGE THE USER CODE

#Sub-Master Code 07 User Code
Example: #87654321 07 6666
Result: New User Code 6666 now operative.

DELETE USER CODE

#Sub-Master Code 08
Example: #87654321 08
Result: User Code deleted.

USER COMMAND

CHANGE THE USER CODE

#User Code New User Code New User Code
Example: #2244 6688 6688
Result: User Code now 6688.

BATTERY LEVEL CHECK

#Master Code 09
Example: #11335577 09

Result:

Both Red LED and Blue LED will flash to indicate current battery status.

More than 80% charged
Between 50%-80% charge
Between 20%-50% charged
Less than 20% charged
