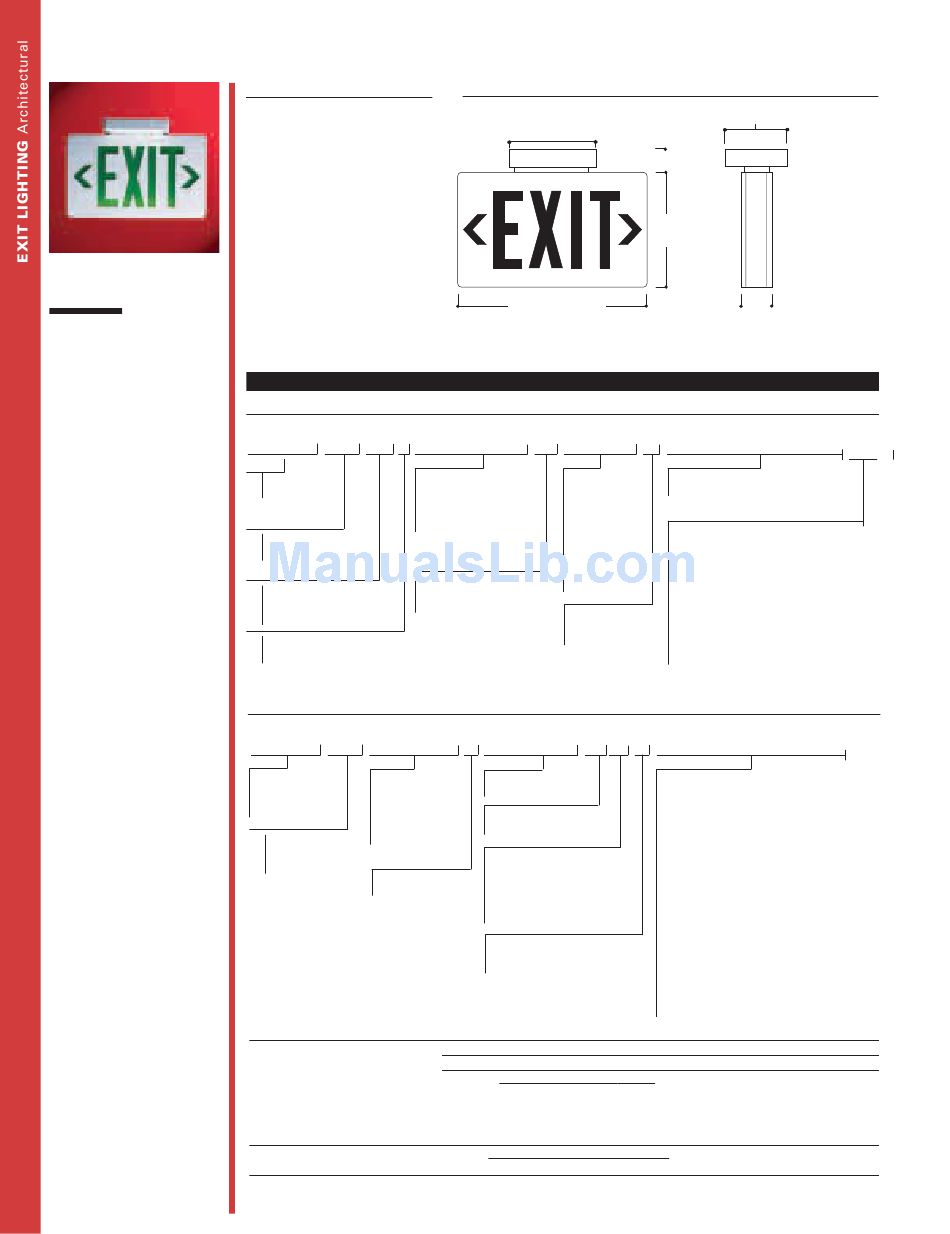

Cooper Lighting Sure-Lites CAX Series Specification Sheet

COOPER LIGHTING - SURE-LITES
CAX SERIES
A C O n l y
L E D L a m p i n g
E X I T L I G H T I N G
• 120 VAC or 277 VAC Input
wattage
• Die cast aluminum
housing with hinged face
plate and die cast canopy
for ceiling or end
mounting
• Screw-In LED Lamps: two
1W long life T6 1/2
intermediate base lamps
• Universal pattern
knockouts on rear of single
face housing for direct
mounting to junction box
• NFPA 101 compliant
knockout chevrons allow
quick conversion to
directional signs
• Damp Location Listed
(except exits with "2C"
Option), UL 924 Listed, Life
Safety NFPA 101, CSA
certified, NEC/OSHA, UL
FTBR Listed (consult your
Cooper Lighting
Representative for
applicable fixture types),
most state and local codes
634
COOPER LIGHTING
D E S C R I P T I O N
The Sure-Lites Pinnacle Family
of Surface Mounted Die Cast
Aluminum Exits combine
strength, durability and
aesthetics. The pleasing lines
and the range of
architecturally compatible
finishes will add a new
dimension to any design.
Unlike competitive units that
have a pronounced dot effect
from protruding diodes, the
Pinnacle LED offers unequalled
uniform illumination and
brightness.
O R D E R I N G I N F O R M AT I O N - L E D L A M P E X I T S
S A M P L E N U M B E R : C A X 6 1 0 0 6 5 R B
CAX
Family
Factory
CAX=Die Cast
Options
Aluminum Exit
00=No Options
Surface Mount
65=Tamperproof Screws
85=Vandal Shield
Series
6=AC Only,LED
Letter Colors
Face Options
R=Red
1=Single
G=Green
2=Double
Battery
00=No Battery
O R D E R I N G I N F O R M AT I O N - S C R E W - I N L E D E X I T S
S A M P L E N U M B E R : C A X 1 L E D A C R
CAX
Family
Factory
CAX=Die Cast
Options
Aluminum Exit
65=Tamperproof
Surface Mount
Screws
85=Vandal Shield
Face Options
95=AC Only Fire
1=Single
Alarm Interface
2=Double
Lamp Type
LED=LED Lite Stix™
Screw-in LED Lamps
E n e r g y D a t a
Red Letters Single Face
Red Letters Double Face
Green Letters Single Face
Green Letters Double Face
Red Letters
®
D I M E N S I O N S
6 1/4" (159mm)
8 1/4" (210mm) (277V)(conversion kit)
1 1/4" (32mm)
2 5/8" (67mm) (277V)
13 5/8" (346mm)
Housing
Finishes
Blank=Brushed
Aluminum
Face with
Black
Housing
W=White
B=Black
BZ=Bronze
Voltage
Blank=120/277V
47=120/347V
Emergency Operation
AC=AC Only
Letter Color
R=Red
Housing Finishes
Blank=Brushed Aluminum
Face with Black Housing
W=White
B=Black
BZ=Bronze
Voltage
Blank=120V
77=277V
Input Power: Input Current(Max.):
120V 277V 347V 120V 277V
Standard Power - LED Exits
5.6W 5.7W 6.0W .07A .03A
7.3W 7.5W 8.3W .07A .03A
6.7W 6.8W 6.8W .07A .03A
9.5W 9.7W 9.9W .09A .04A
LED Lite-Stix™ Screw-In Lamps
2.0W 4.3W .09A
4 1/4" (108mm)
5 3/4" (146mm) (277V)(conversion kit)
(conversion kit)
8 1/4"
(210mm)
2 1/4"
(57mm)
Factory Options
2C= Two Circuit Operation
Accessories (Order Separately)
Screwdrivers
059012SP=Tamperproof Screwdriver Bit
VRSD=Vandal Resistant Screwdriver
WG10=Surface, Mount Wire Guard
WGS11=Ceiling, End Mount Wire Guard
VS1=polycarbonate vandal shield
Pendant Kits
CAX18PK=Pendant Kit, white
CAX18PKHT="Hang-true" Pendant Kit,
white
Accessories (Order Separately)
DC Socket Kit
PDC6=Two 6V, 3.6W DC lamps
PDC12=Two 12V, 3.6W DC lamps
Emergency Power Pack
CAX3PP=Black
CAX3PPW=White
CAX3PPBZ=Bronze
277V Conversion Kit
AD277CAX=Black
AD277CAXW=White
AD277CAXBZ=Bronze
Vandal Resistant Screwdrivers
059012SP=Tamperproof
Screwdriver Bit
VRSD=Vandal Resistant Screwdriver
WG10=Surface, Mount Wire Guard
WGS11=Ceiling, End Mount Wire Guard
VS1=Polycarbonate Vandal Shield
Power Factor: T.H.D.:
347V 120V 277V 120V
.02A >.71 >.71 <36%
.03A >.83 >.83 <33%
.02A >.79 >.79 <30%
.03A >.90 >.90 <26%
.03A >.19 >.58 <19%
277V
<36%
<34%
<31%
<27%
<22%
