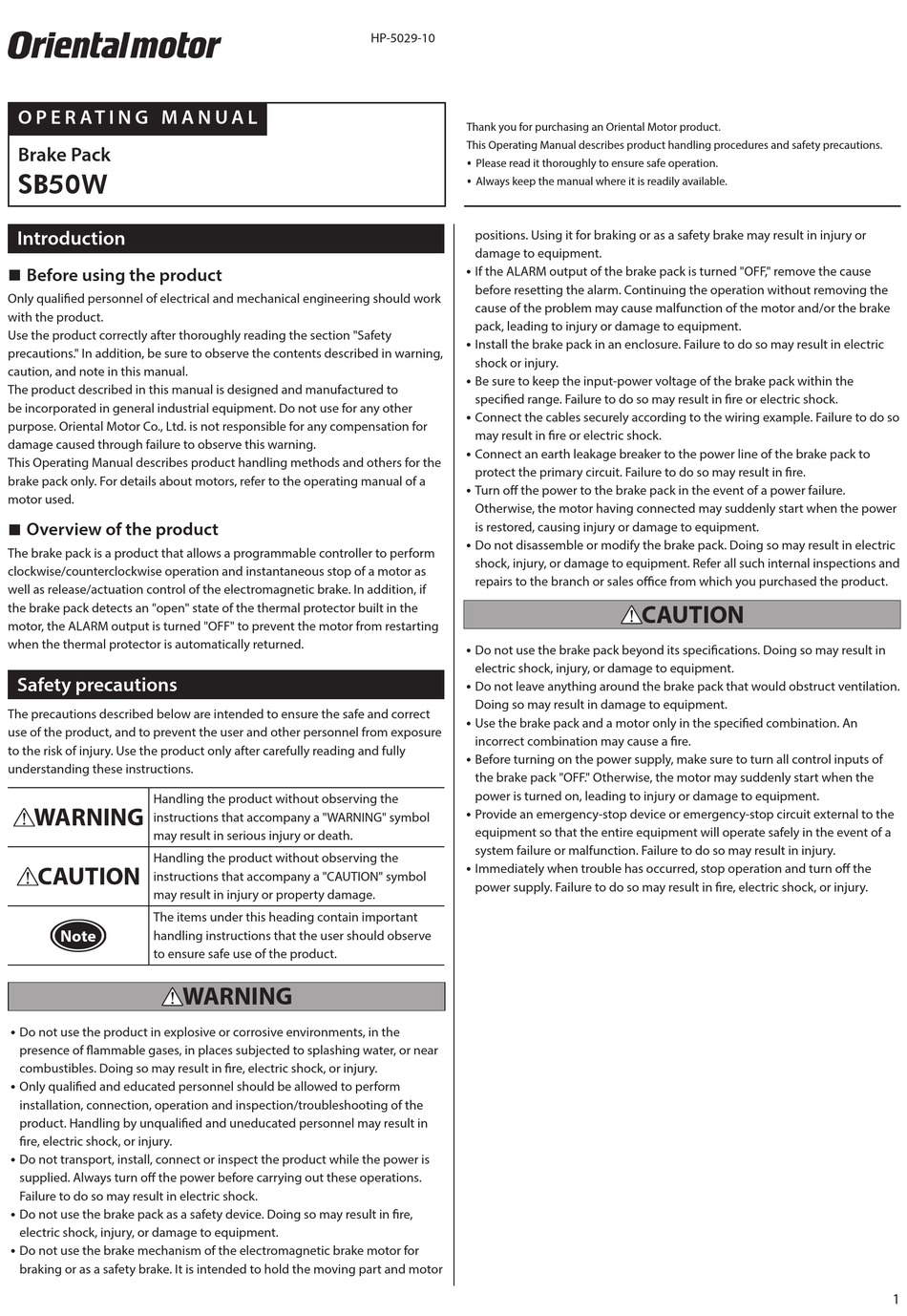

O P E R A T I N G M A N U A L

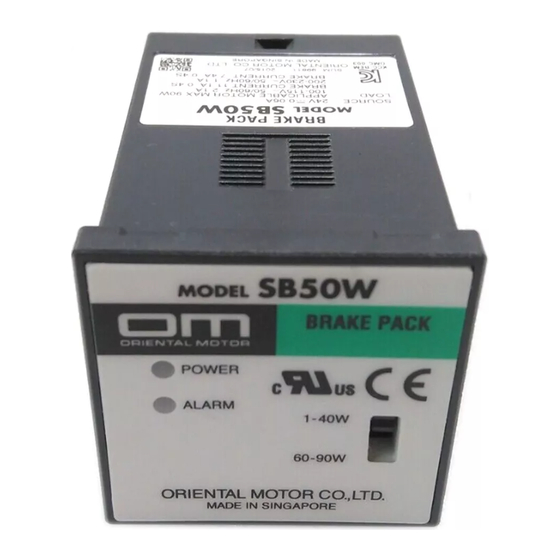

Brake Pack
SB50W
Introduction
„ Before using the product
Only qualified personnel of electrical and mechanical engineering should work
with the product.
Use the product correctly after thoroughly reading the section "Safety
precautions." In addition, be sure to observe the contents described in warning,
caution, and note in this manual.
The product described in this manual is designed and manufactured to
be incorporated in general industrial equipment. Do not use for any other
purpose. Oriental Motor Co., Ltd. is not responsible for any compensation for
damage caused through failure to observe this warning.
This Operating Manual describes product handling methods and others for the
brake pack only. For details about motors, refer to the operating manual of a
motor used.
„ Overview of the product
The brake pack is a product that allows a programmable controller to perform
clockwise/counterclockwise operation and instantaneous stop of a motor as
well as release/actuation control of the electromagnetic brake. In addition, if
the brake pack detects an "open" state of the thermal protector built in the
motor, the ALARM output is turned "OFF" to prevent the motor from restarting
when the thermal protector is automatically returned.
Safety precautions
The precautions described below are intended to ensure the safe and correct
use of the product, and to prevent the user and other personnel from exposure
to the risk of injury. Use the product only after carefully reading and fully
understanding these instructions.
Handling the product without observing the
WARNING
instructions that accompany a "WARNING" symbol
may result in serious injury or death.
Handling the product without observing the
CAUTION
instructions that accompany a "CAUTION" symbol
may result in injury or property damage.
The items under this heading contain important
Note
handling instructions that the user should observe
to ensure safe use of the product.
y Do not use the product in explosive or corrosive environments, in the
presence of flammable gases, in places subjected to splashing water, or near
combustibles. Doing so may result in fire, electric shock, or injury.
y Only qualified and educated personnel should be allowed to perform
installation, connection, operation and inspection/troubleshooting of the
product. Handling by unqualified and uneducated personnel may result in
fire, electric shock, or injury.
y Do not transport, install, connect or inspect the product while the power is
supplied. Always turn off the power before carrying out these operations.
Failure to do so may result in electric shock.
y Do not use the brake pack as a safety device. Doing so may result in fire,
electric shock, injury, or damage to equipment.
y Do not use the brake mechanism of the electromagnetic brake motor for
braking or as a safety brake. It is intended to hold the moving part and motor
WARNING
HP-5029-10
Thank you for purchasing an Oriental Motor product.
This Operating Manual describes product handling procedures and safety precautions.
y Please read it thoroughly to ensure safe operation.
y Always keep the manual where it is readily available.
positions. Using it for braking or as a safety brake may result in injury or
damage to equipment.
y If the ALARM output of the brake pack is turned "OFF," remove the cause
before resetting the alarm. Continuing the operation without removing the
cause of the problem may cause malfunction of the motor and/or the brake
pack, leading to injury or damage to equipment.
y Install the brake pack in an enclosure. Failure to do so may result in electric
shock or injury.
y Be sure to keep the input-power voltage of the brake pack within the
specified range. Failure to do so may result in fire or electric shock.
y Connect the cables securely according to the wiring example. Failure to do so
may result in fire or electric shock.
y Connect an earth leakage breaker to the power line of the brake pack to
protect the primary circuit. Failure to do so may result in fire.
y Turn off the power to the brake pack in the event of a power failure.
Otherwise, the motor having connected may suddenly start when the power
is restored, causing injury or damage to equipment.
y Do not disassemble or modify the brake pack. Doing so may result in electric
shock, injury, or damage to equipment. Refer all such internal inspections and
repairs to the branch or sales office from which you purchased the product.
y Do not use the brake pack beyond its specifications. Doing so may result in
electric shock, injury, or damage to equipment.
y Do not leave anything around the brake pack that would obstruct ventilation.
Doing so may result in damage to equipment.
y Use the brake pack and a motor only in the specified combination. An
incorrect combination may cause a fire.
y Before turning on the power supply, make sure to turn all control inputs of
the brake pack "OFF." Otherwise, the motor may suddenly start when the
power is turned on, leading to injury or damage to equipment.
y Provide an emergency-stop device or emergency-stop circuit external to the
equipment so that the entire equipment will operate safely in the event of a
system failure or malfunction. Failure to do so may result in injury.
y Immediately when trouble has occurred, stop operation and turn off the
power supply. Failure to do so may result in fire, electric shock, or injury.
CAUTION
