NRS Healthcare N29222 User Instructions

User Instructions

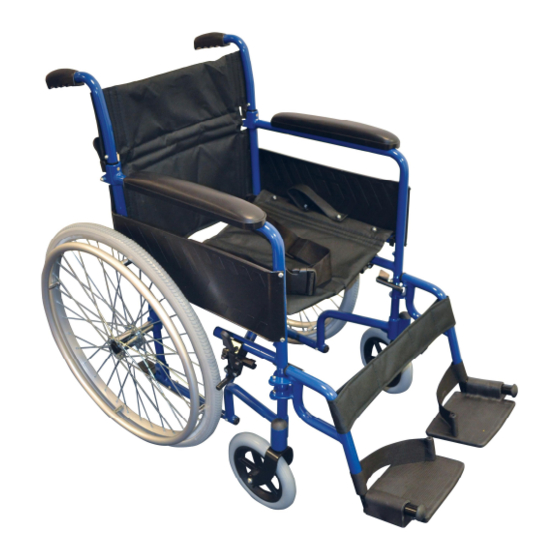

N29222 Transit Lite Self Propelled Wheelchair
Maximum
Weight
General Safety Warning
Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury to
the user. Retain in a safe place for future reference.
Intended Use
The Transit Lite Self Propelled Wheelchair is
designed to transport a person either self propelled or
with assistance from a carer. It can be used both
indoor and outdoor. It is not intended for use as a
seat in a motor vehicle
Unpacking
Remove the product from its packaging, check all
parts thoroughly, if you see any damage or suspect a
fault do not assemble the product, contact your
supplier immediately.
Contents
Wheelchair (folded)
Calf Strap
Footrest Assembly (x2)
Multi Function Spanner
Allen Key
User Instructions
Rear Wheel (x2)
Rear Axle (x2)
Specification
Maximum User Weight:
Product Weight:
Assembly
·
Before assembling the wheelchair ensure the
floor area will not damage the vinyl armrests, If
necessary place a protective cover on the floor .
·
Remove all parts from the packaging and place
the chair upside down resting on the armrest -
take care not to damage the vinyl cover on the
armrests
User
110kg (17st)
14kg
·
Assemble the wheel axle to the wheel as
shown in diagram 2A. Note The axle knob
(black) at the end of the axle needs to be
pressed in - this will retract the spring locking
buttons and allow the axle to pass through the
wheel hub
Axle Knob
·
Align the wheel hub with the hub on the frame
and push the axle through the frame hub.
Diagram 2B
Axle
Diag: 2A
