Model # HDFP72-44E
OMSID # 308824432
# HDFP72-44AE
OMSID # 312727371

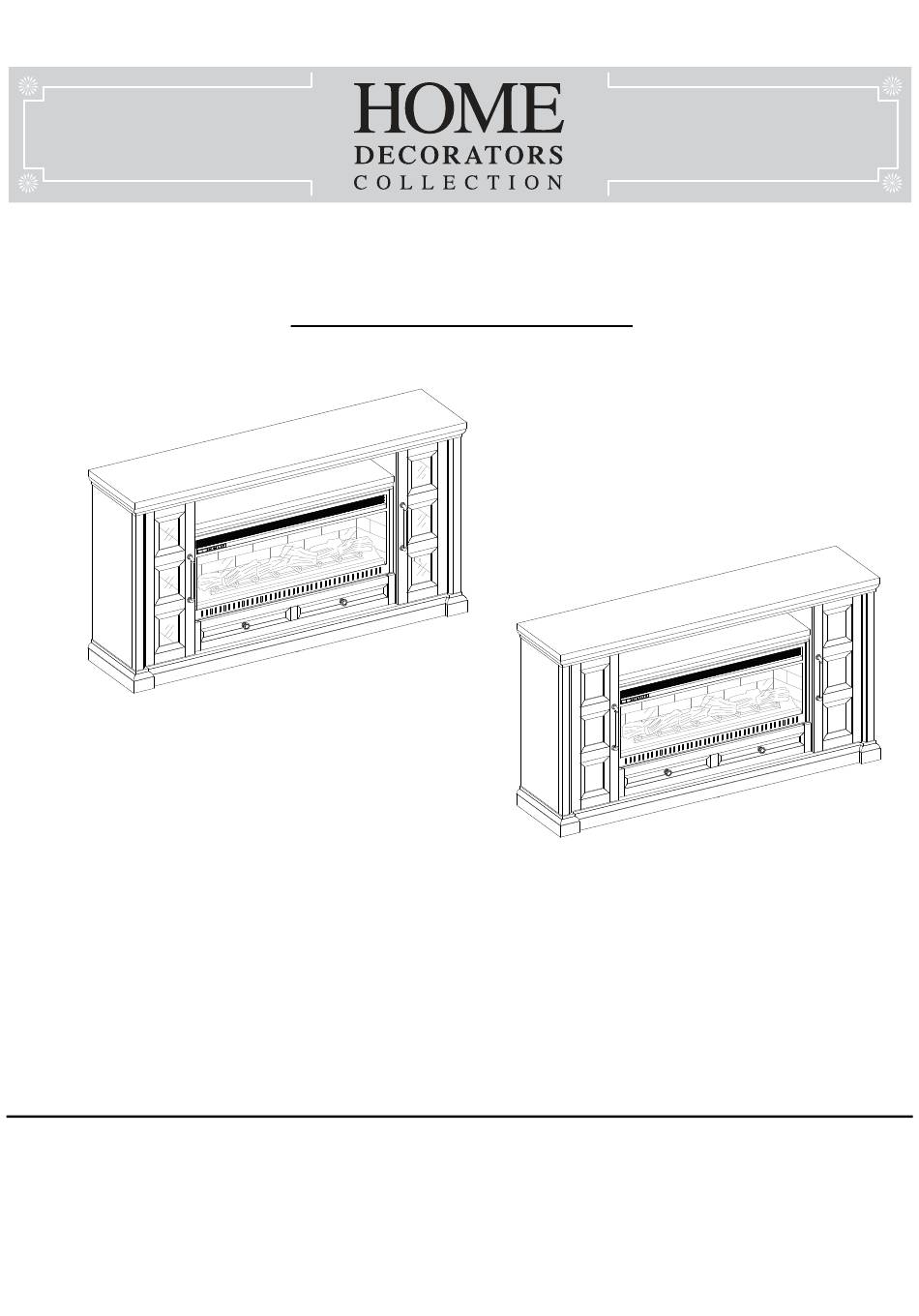

ASSEMBLY INSTRUCTIONS

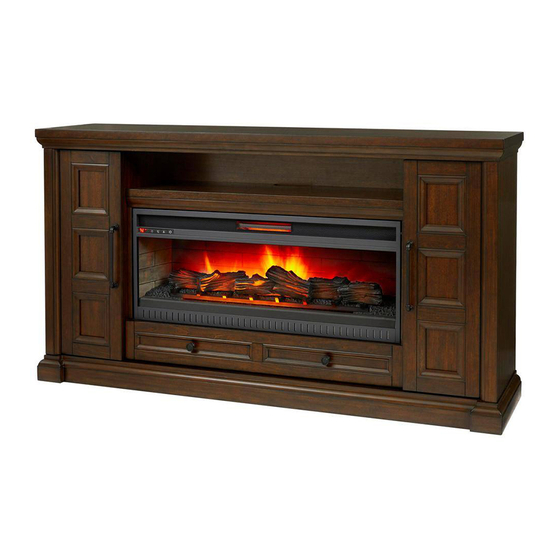

Cecily 72in Media Console Infrared Electric Fireplace
OR
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Related Manuals for Home Decorators Collection Cecily HDFP72-44E
Summary of Contents for Home Decorators Collection Cecily HDFP72-44E
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
- Page 2 Table of Contents Table of Contents ..............2 Hardware Included ..............3 Safety Information ..............2 Package Contents ..............4 Warranty ................2 Assembly................5 Pre-Assembly ............... 2 Care and Maintenance ............16 Planning Assembly ..............2 Tools required ................. 2 Safety Information Fits up to most 208.3 cm / 82 in.
- Page 3 Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Large wood dowel 26+1 extra Acrylic stopper Cam lock 28+1 extra Cam lock cover 16+1 extra Cam bolt 28+1 extra Handle Short flat head screw 16+1 extra Bolt Long flat head screw...
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Box 1 Part Description Quantity Fireplace insert Remote control with battery Box 2 Box 3 Part Description Quantity Part Description Quantity Left side panel Top panel Left partition panel Upper fixed shelf Right partition panel Lower fixed shelf Right side panel Base Adjustable shelf...
- Page 5 Assembly Screwing the cam bolts NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. □ Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratches.
- Page 6 Assembly (continued) Attaching the middle stiles NOTE: Refer to the dowel assembling guide drawings in this step for further clarification on how to properly glue in the wooden dowels. Apply this method whenever instructed to install wood dowels □ Glue two small wood dowels (TT) into the inner holes of one middle stile (K) and attach it to the left partition panel (G) with three medium flat head screws (XX).
- Page 7 Assembly (continued) Attaching the lower fixed shelf support and the chain □ Using the pilot holes as a guide, attach the lower fixed shelf support (O) to the lower fixed shelf (C) with five long flat head screws (EE). □ Using the pilot holes as a guide, fasten two chains (SS) to the lower fixed shelf (C) with two short pan head screws (FF).
- Page 8 Assembly (continued) Attaching the partition panels □ Glue four large wood dowels (AA) into the inner holes of the fixed shelves (B and C) at both ends. □ Align the large holes on right partition panel (H) with the inserted wood dowels (AA) and press them together. Attach the partition panel (H) in place by engaging four cam locks (BB).
- Page 9 Assembly (continued) Attaching the side panels □ Glue four large wood dowels (AA) into the inner holes on the side panels (F and I) and attach them to the base (D) by engaging four cam locks (BB). Attaching the top panel □...
- Page 10 Assembly (continued) Attaching back panels □ Flip the assembled unit around at its front edges. □ Now, go back and securely tighten all the cam locks and screws. Make sure that all the parts are tight and there are no gaps between the parts.
- Page 11 Assembly (continued) Attaching the handles □ Attach one handle (OO) to the front side of each door (R) with the provided bolts (PP). Installing the doors □ Loosen the screws on the hinge arms and plates pre-attached on the side panels (F and I). □...
- Page 12 Assembly (continued) Attaching the rubber bumpers and cam lock covers □ Stick rubber bumpers (LL) at the outer corners of both doors (R) where they meet the partition panels (G and H). □ Plug the cam lock covers (NN) onto the visible cam locks to conceal the cams. Installing the drop lid door □...
- Page 13 Assembly (continued) Fasten two chains to the drop lid door □ Using the pilot holes as a guide, fasten two chains (SS) to the drop lid door (E) using two short pan head screws (FF). Attaching the knobs □ Attach two knobs (QQ) to the front side of the drop lid door (E) with the provided bolts (PP). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
- Page 14 Assembly (continued) Installing fireplace insert and support □ Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO NOT drag the insert across the lower fixed shelf (C) as it may scratch the unit. □...
- Page 15 Assembly (continued) Interchanging door insert panels □ To change door panels, loosen the screws on the inside of the doors (R) and rotate the clips to remove the insert panel. Replace with desired panel, then rotate clips to secure the panel within the door frame and tighten screws. NOTE: The glass door panels are pre-attached when shipping.
- Page 16 Care and Maintenance A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during assembly or shipping. To clean and care for your furniture: □ Use a soft, clean cloth that will not scratch the surface when dusting. □...
- Page 17 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
