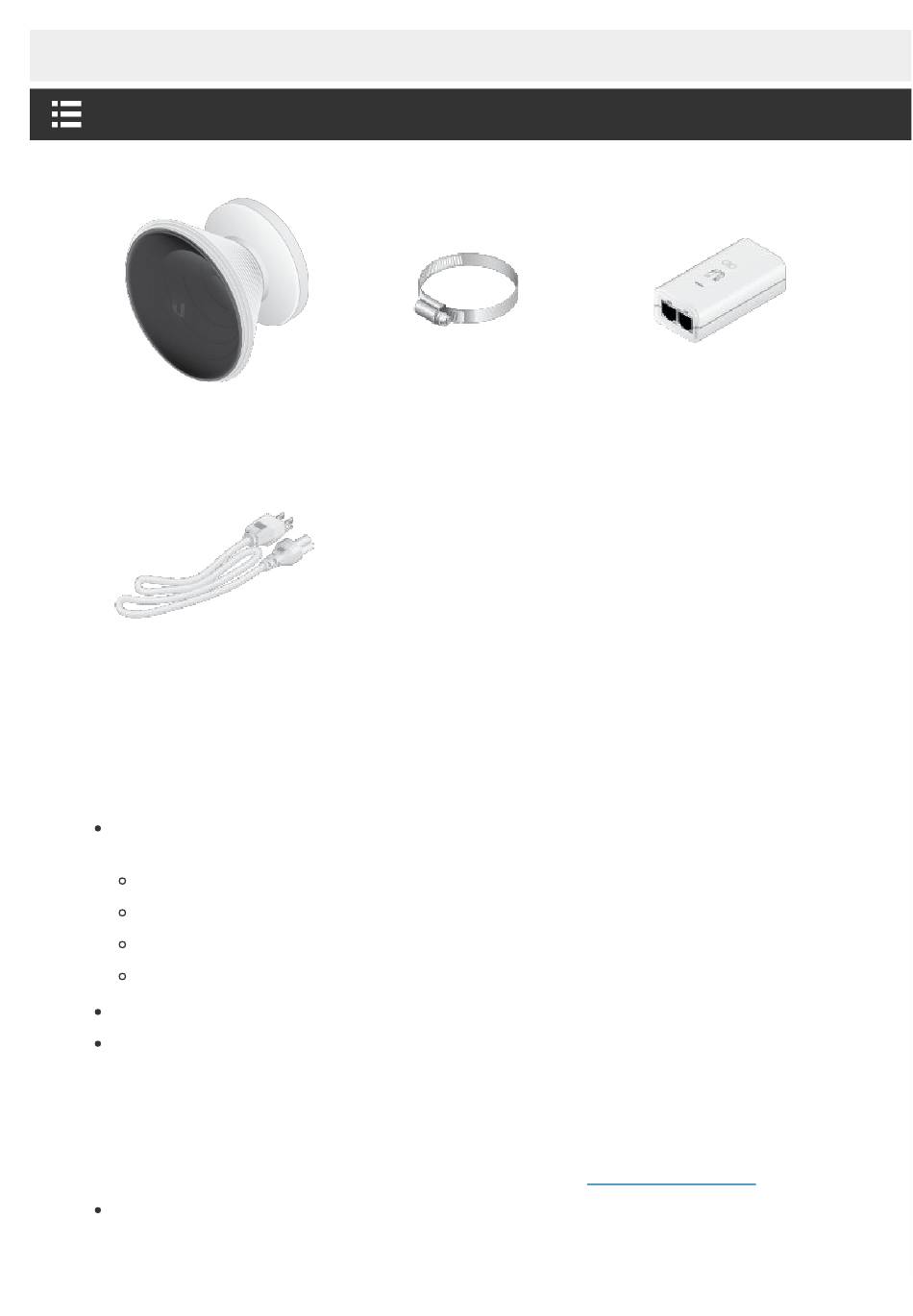

Package Contents

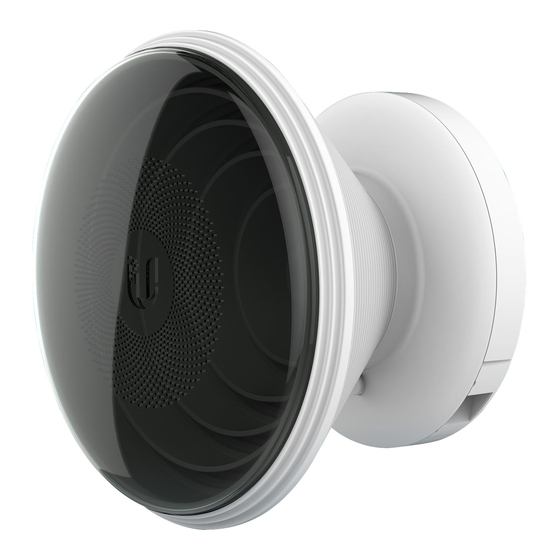

IsoStation M5
Power Cord
Installation Requirements
The IS­M5 comes with a default horn antenna, Horn­5­45, and is compatible
with the following options:
Horn­5­30
Horn­5­60
Horn­5­90
U­OMT­Dish
7 mm socket wrench or screwdriver
Shielded Category 5 (or above) cabling with drain wire should be used for all
wired Ethernet connections and should be grounded through the AC ground of
the PoE.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial­grade, shielded
Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable
Surge protection should be used for all outdoor installations. We recommend
that you use two Ethernet Surge Protectors, model ETH­SP, one near the
IsoStation and the other at the entry point to the building. The ETH­SP will
IS­M5 Quick Start Guide
Metal Strap
Gigabit PoE (24V, 0.5A) with
Mounting Bracket

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IsoStation M5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti IsoStation M5

  • Page 1 IS­M5 Quick Start Guide Package Contents IsoStation M5 Metal Strap Gigabit PoE (24V, 0.5A) with Mounting Bracket Power Cord Installation Requirements The IS­M5 comes with a default horn antenna, Horn­5­45, and is compatible with the following options: Horn­5­30 Horn­5­60 Horn­5­90 U­OMT­Dish 7 mm socket wrench or screwdriver Shielded Category 5 (or above) cabling with drain wire should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial­grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH­SP, one near the IsoStation and the other at the entry point to the building. The ETH­SP will...
  • Page 2: Hardware Overview

    absorb power surges and safely discharge them into the ground. Hardware Overview...
  • Page 3: Hardware Installation

    Power LED The LED will light green when the device is connected to a power source. Ethernet Port This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on. Alternatively, the device may be reset remotely via a Reset button located on the bottom of the Gigabit PoE Adapter. Release Button The default horn antenna (beamwidth: 45°) can be swapped out for an optional horn with a different beamwidth. To remove it, rotate the horn antenna counterclockwise while depressing the Release Button. Hardware Installation 1.  2. ...
  • Page 4 Pole­Mounting 1.  2.  Connecting Power...
  • Page 5: Connecting Power

    Connecting Power 1.  2.  3. ...
  • Page 6 4.  5. ...
  • Page 7 6. Connect the power using: included Gigabit PoE Adapter PoE switch WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide. Connecting to the PoE Adapter 1. Connect the Ethernet cable from the device to the POE port of the PoE adapter. 2. Connect an Ethernet cable from your LAN to the LAN port of the PoE adapter. 3. Connect the Power Cord to the adapter, and then plug the Power Cord into a power outlet. Mounting the PoE Adapter (Optional) 1. Remove the PoE Mounting Bracket from the adapter, place the bracket at the desired location, and mark the two holes. 2. Pre­drill the holes if necessary, and secure the bracket using two fasteners (not included). 3. Align the adapter’s slots with the tabs of the PoE Mounting Bracket, and then slide the adapter down.
  • Page 8: Installer Compliance Responsibility

    Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host system is connected via Ethernet to the device. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3. Launch your web browser and type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of Use to use the product. Click Login. The airOS Configuration Interface will appear, allowing you to customize your settings as needed. For details, refer to the User Guide available at ui.com/download/airmax You can also manage your device using the Ubiquiti® Network Management System. Setup using the UNMS™ app requires the U­Installer, sold separately. Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements.
  • Page 9: Specifications

    The Output Power field is provided to the professional installer to assist in meeting regulatory requirements. Specifications IS­M5 Dimensions 174 x 174 x 150 mm   (6.85 x 6.85 x 5.91") Without Horn 131 x 131 x 65 mm (5.16 x 5.16 x 2.56") Weight 725.7 g   (1.60 lb) Without Horn 408.2 g (0.90 lb) Beamwidth 45° (Default Horn) Networking Interface (1) 10/100/1000 Ethernet Port Power Max. Power Consumption 6.5W Power Supply 24V, 0.5A Gigabit PoE Adapter (Included) Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage Range 20 to 26VDC Wind Loading 36 N @ 200 km/h (8.09 lbf @ 125 mph)
  • Page 10: Safety Notices

    IS­M5 Wind Survivability 200 km/h (125 mph) Operating Temperature ­40 to 70° C (­40 to 158° F) Operating Humidity 5 to 95% Noncondensing Mounting Pole­Mount (Kit Included) ESD/EMP Protection ± 24kV Contact/Air Certifications CE, FCC, IC Operating Frequency (MHz) Worldwide 5150 ­ 5875 US/CA U­NII­1 5150 ­ 5250 U­NII­2A 5250 ­ 5350 U­NII­2C 5470 ­ 5725 U­NII­3 5725 ­ 5850 Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  • Page 11: Limited Warranty

    ground wire intended for connection to a grounded safety outlet. a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2­wire outlet as this will defeat the continuity of the grounding wire. b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death. c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment. d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short­circuit backup protection. e. Protective bonding must be installed in accordance with local national wiring rules and regulations. Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This radio transmitter (FCC ID: SWX­ISM5) has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Horn antenna, Gain: 19 dBi ISED Canada CAN ICES­3(A)/NMB­3(A)
  • Page 12: Important Note

    This device complies with ISED Canada licence­exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A­ISM5) has been approved by ISED Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Horn antenna, Gain: 19 dBi The device for operation in the band 5150­5250 MHz is only for indoor use to reduce the potential for harmful interference to co­channel mobile satellite systems. CAN ICES­3(A)/NMB­3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. l’appareil ne doit pas produire de brouillage; 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Le présent émetteur radio (IC : 6545A­ISM5) a été approuvé par ISDE Canada pour l’exploitation avec l’antenne types énumérés ci­dessous avec le gain maximal admissible et requis l’impédance de l’antenne pour chaque type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil. Antenne corne, Gain : 19 dBi Les dispositifs fonctionnant dans la bande 5150­5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. IMPORTANT NOTE Radiation Exposure Statement This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 32 cm between the radiator and your body. This transmitter must not be co­located or operating in conjunction with any other antenna or transmitter. AVIS IMPORTANT Déclaration sur l’exposition aux rayonnements Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé. Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez­vous qu’il y ait...
  • Page 13: Australia And New Zealand

    une distance minimale de 32 cm entre l’élément rayonnant et vous. Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre émetteur, et ne doit être utilisé conjointement à aucun autre de ces appareils. Australia and New Zealand Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Brazil Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Country List BFWA (Broadband Fixed Wireless Access) members noted in blue Note: This device meets Max. TX power limit per ETSI regulations. The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 ­ 5350 MHz frequency range within all member states. Note: All countries listed may operate at 30 dBm. BFWA member states may operate at 36 dBm. Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement...
  • Page 14: Declaration Of Conformity

    Declaration of Conformity Online Resources © 2021 Ubiquiti Inc. All rights reserved.
