Summary of Contents for Ubiquiti PBE-5AC-400-ISO-EU

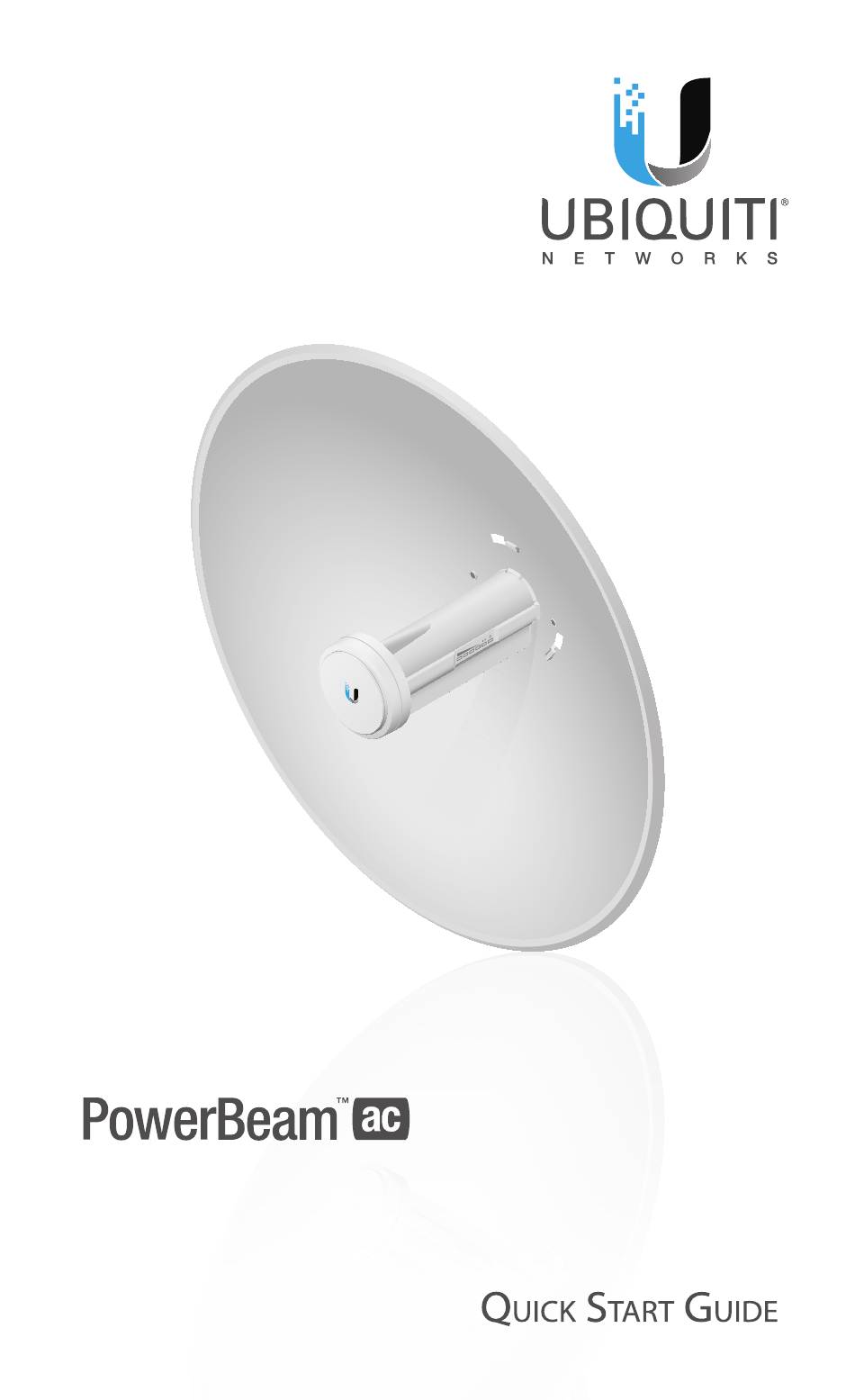

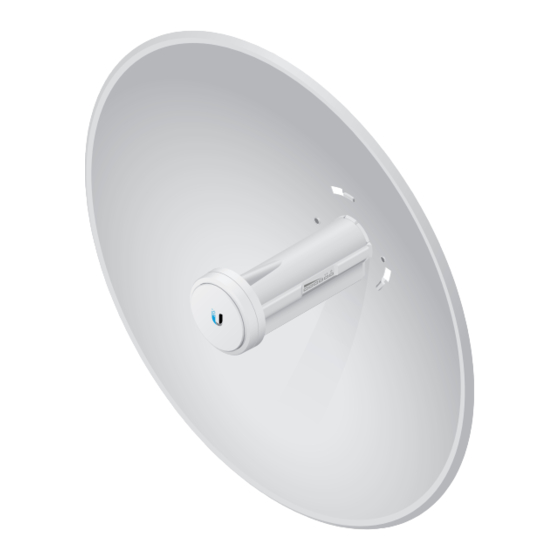

- Page 1 High-Performance Integrated InnerFeed ™ airMAX ac Bridge ® Models: PBE-5AC-400...
-
Page 2: Package Contents
* The PBE-5AC-400 Antenna Feed has a thin gray ring around the center of the cap to differentiate it from the PBE-5AC-300 Antenna Feed. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™... -
Page 3: Hardware Overview
Hardware Overview Bottom View Antenna Feed Technology Ethernet Port Reset Button Release Button Dish Reflector Dish Bracket Alignment Pins Rear Housing Release Button Slot Cable Door Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the PowerBeam is already powered on. - Page 4 LEDs Signal In airOS, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds. The default values are shown below: LED will light blue when the wireless signal strength is above -65 dBm. LED will light blue when the wireless signal strength is above -73 dBm.
-
Page 5: Application Examples
Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable... -
Page 6: Installation
Installation 1. Align and insert the tabs of the Dish Bracket into the slots of the Dish Reflector. Rotate the Dish Bracket counter-clockwise until the tabs lock into place. 2. Line up the Alignment Pins of the Rear Housing with the alignment holes of the Dish Bracket. - Page 7 3. Push in the sides of the Cable Door and detach it from the Rear Housing. 4. Attach the Antenna Feed: a. I nsert the Antenna Feed into the Rear Housing, and push until it locks into place with a click. b.
- Page 8 5. Connect the Ethernet cable: a. Connect an Ethe rnet cable to the Ethernet Port of the Antenna Feed. b. Re-attach the Cable Door to the Rear Housing. 6. Slide the Pole Clamp onto the Dish Bracket.
- Page 9 7. Insert the U-Bolt into the Pole Clamp and Dish Bracket. Secure each end of the U-Bolt with a Flange Nut. 25 N-m Note: The mounting assembly can accommodate a Ø 32 - 56 mm pole. 8. Optional: If you have the PowerBeam Radome (optional accessory), then align the arrows on the bottoms of the Radome and Dish Reflector so the Drain Holes on the Radome point downward.
- Page 10 9. Connect the Ethernet cable from the PowerBeam’s Ethernet port to the POE port of the Gigabit PoE adapter. 10. Connect an Ethernet cable from your LAN to the adapter’s LAN port. 11. Connect the Power Cord to the adapter’s power port. Connect the other end of the Power Cord to a power outlet.
- Page 11 Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host system is connected via Ethernet to the PowerBeam. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.
-
Page 12: Installer Compliance Responsibility
Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements. -
Page 13: Specifications
Specifications PowerBeam ac PBE-5AC-400 Dimensions 420 x 420 x 275 mm (16.54 x 16.54 x 10.83") Weight (Mount Included) 1.753 kg (4.789 lb) Operating Frequency Worldwide: 5150 - 5875 MHz USA: 5725 - 5850 MHz Gain 25 dBi Networking Interface (1) 10/100/1000 Ethernet Port Enclosure Outdoor UV Stabilized Plastic... -
Page 14: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 15: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 16: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 17 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 18: Industry Canada
Industry Canada CAN ICES-3(A)/NMB-3(A) This Class [A] digital apparatus complies with Canadian CAN ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. - Page 19 RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé...
- Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 22: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις βασικές [Greek] απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. -
Page 23: Online Resources
[Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. - Page 24 Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, InnerFeed, PowerBeam, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
