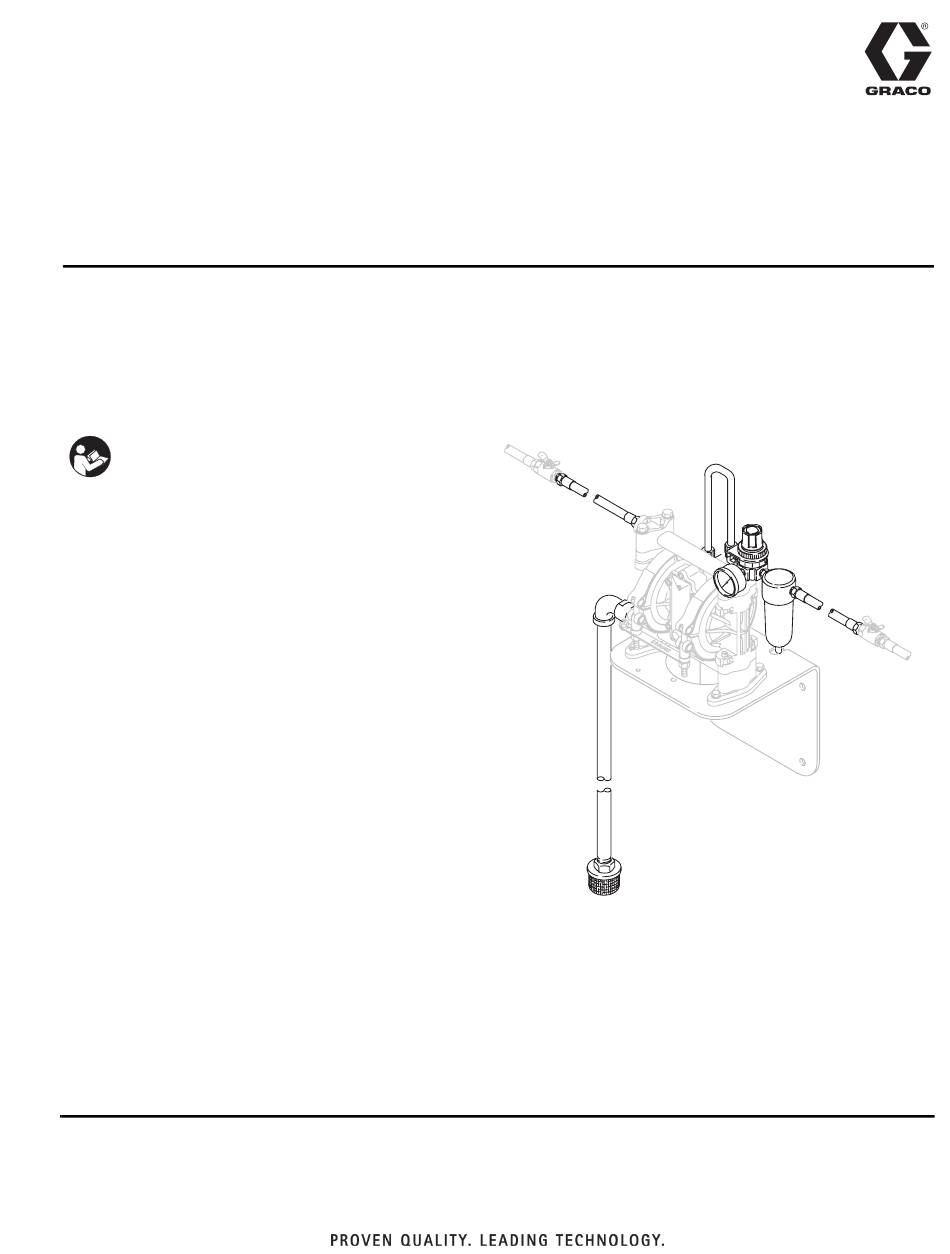

Instructions - Parts list
Air Regulator, Filter,
and 55 Gallon
Suction Kit
For use in applications using windshield washer solvent. For professional use only.
Model No. 237160, Series A
100 psi (0.7 MPa, 7 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
308426D
EN
Advertisement
Related Manuals for Graco 237160
Summary of Contents for Graco 237160
- Page 1 55 Gallon Suction Kit 308426D For use in applications using windshield washer solvent. For professional use only. Model No. 237160, Series A 100 psi (0.7 MPa, 7 bar) Maximum Working Pressure Important Safety Instructions Read all warnings and instructions in this...
- Page 2 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
-
Page 3: Installation
Installation Installation 1. Remove both screws (A) from the top of the pump. 6. Connect an air hose (4) and a bleed-type air shutoff Secure the mounting bracket (13) of the regulator valve (E) at the inlet of the air filter (5). (F . -
Page 4: Pressure Relief Procedure
Operation Operation Pressure Relief Procedure Operation Procedure Follow the Pressure Relief Procedure whenever 1. Place the suction tube in the windshield washer you see this symbol. fluid. 2. Close the fluid shutoff valve (D). 3. Turn on the air to the pump. Slowly open the air reg- ulator until the pump is running smoothly. - Page 5 Parts Parts Part No./Description Ref. Part Description Qty. Ref. Part Description Qty. 156971 NIPPLE, 1/4-18 npt 100611 ELBOW, 1/2-14 npt(m) x 3/4-14 187479 TUBE. 3/8 inch ID, 15 inch (381 npt(f) mm) long 108190 AIR GAUGE, 0-100 psi 190125 MOUNTING BRACKET (0-0.7 MPa, 0-7 bar) range 223888 SUCTION HOSE KIT, includes 109125 AIR HOSE, 6 ft (1.83 m)
-
Page 6: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
