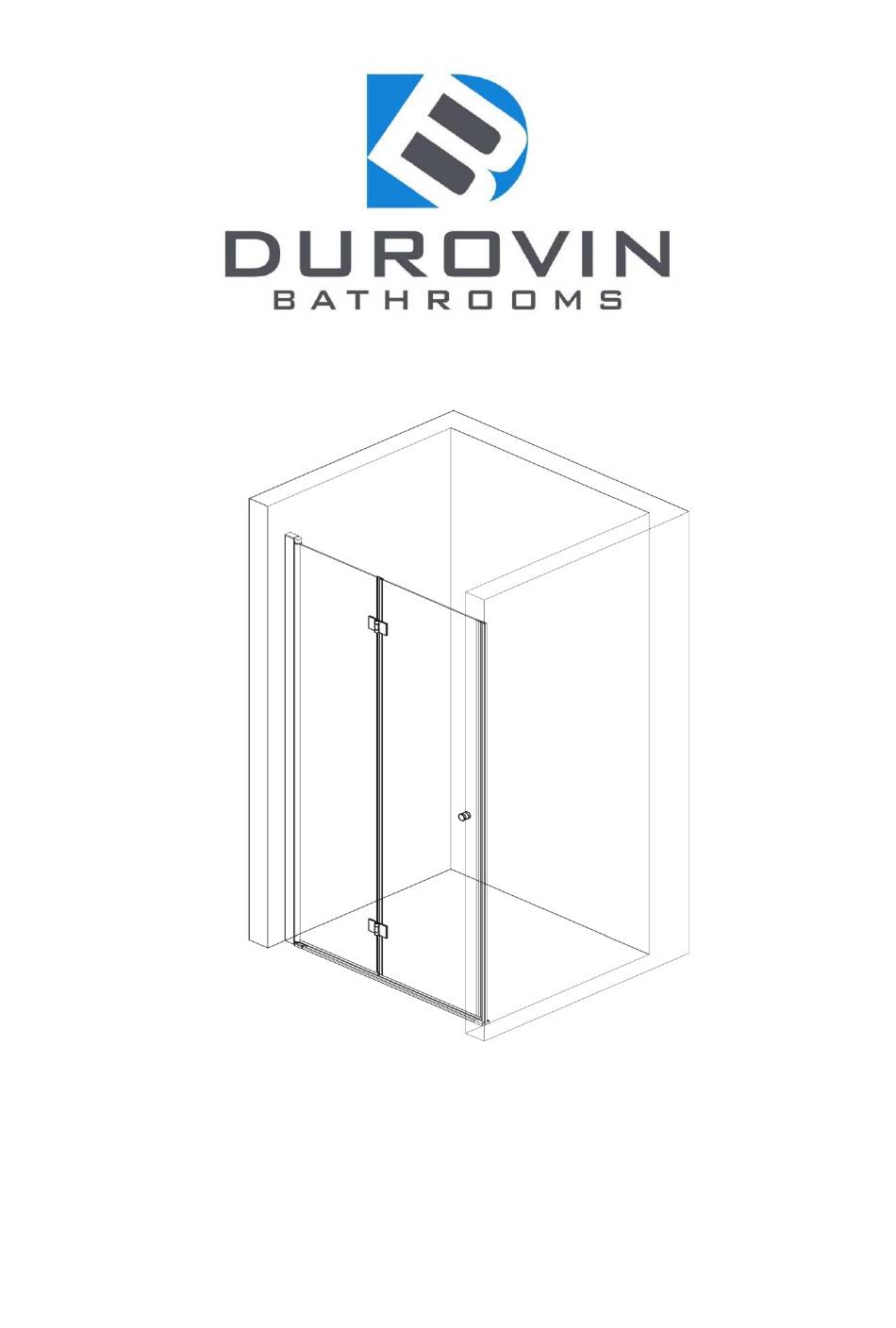

- Page 1 Ravenna 26 Single Door...
-
Page 2: Included Parts
Included Parts Description Illustrations Description Illustration ① Weather Bar ⑩ Door Seal ② Fixing Piece ⑪ Hinges ③ Bottom Seals ⑫ Glass Door Glass Fixed ④ ⑬ Handle Piece Aluminium ⑤ ⑭ Seal Profile ⑥ Wall Plugs ⑮ ST4*30 ⑦ ST4*30 ⑯... -
Page 3: Tools Required
Tools Required Two people required. We recommend that a technically competent installer should undertake this installation. Be sure you have all included parts and tools required before beginning installation and that you have plenty of space for assembly. If you have ordered this shower enclosure with one of our shower trays, please note that tiling should be done before the shower tray is installed. - Page 4 1. Measure where your shower door will be installed.
- Page 5 2. Place the aluminium profiles against the walls, marking where holes will be drilled.
- Page 6 3. Drill holes and insert wall plugs. 4. Screw the aluminium profiles onto the walls.
- Page 7 the glass fixed panel into the aluminium profile. Insert 6. Attach the glass door to the glass fixed panel with the hinges.
- Page 8 7. Drill pilot holes into the aluminium profile, screwing it to the fixed panel. 8. Insert caps over the holes. 9. Slide side seals onto the glass door. 10. Slide the bottom seals on the door and panel.
- Page 9 11. Position the fixing pieces, marking where holes will be drilled. 12. Drill holes and insert plugs. 13. Position the weather bar and screw the fixing pieces into position. 14. Insert the cap on top of the aluminium profile.
- Page 10 15. Attach the handle. 16. Silicone and allow to dry for 24 hours.
