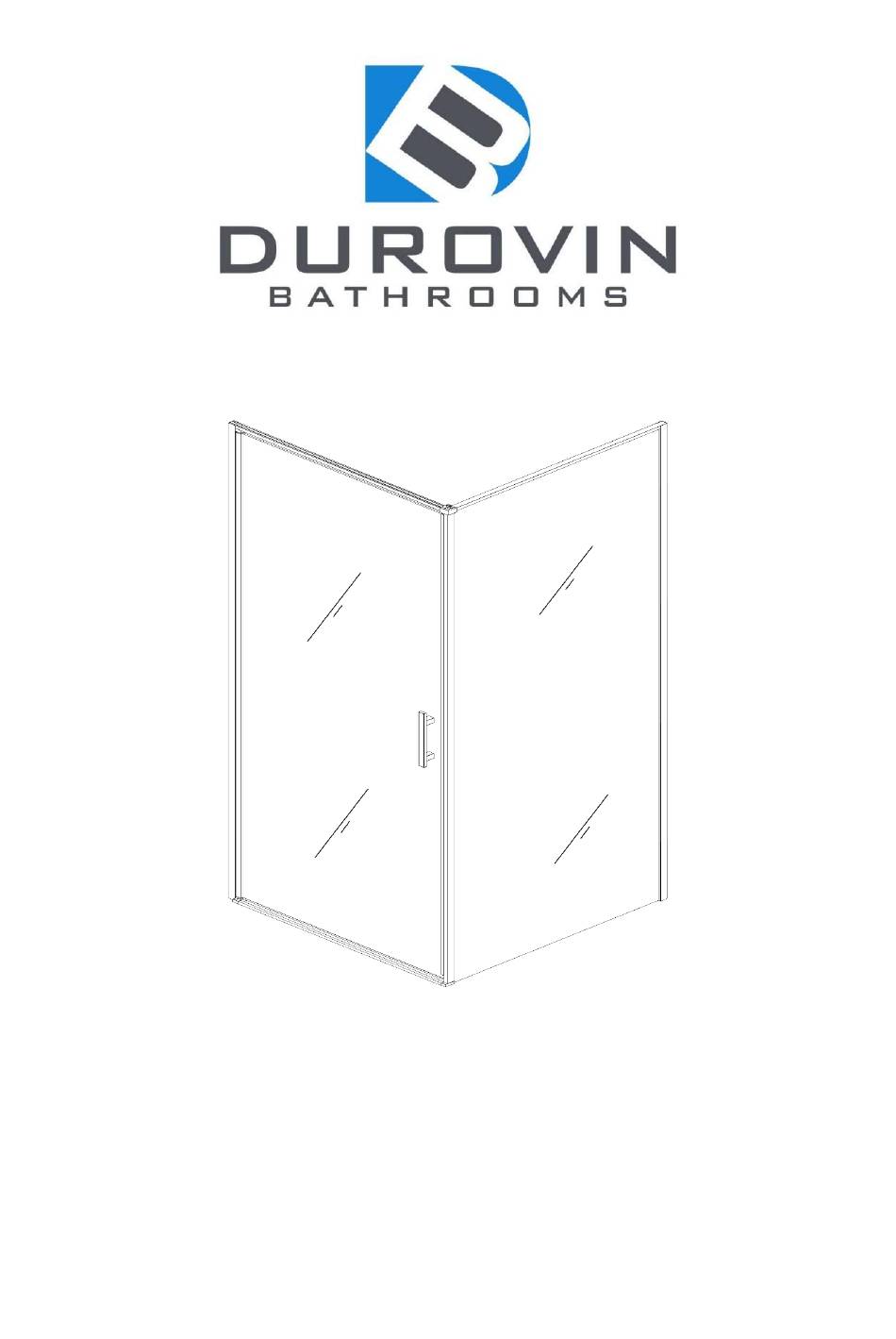

- Page 1 Ravenna 56 L Shape...
-
Page 2: Included Parts
Included Parts Description Illustrations Description Illustration Aluminium Profile ① Weather Bar ⑪ ② Fixing Piece (R/L) 1 ⑫ Door Piece ③ Seal ⑬ Top Rail ④ Door Piece ⑭ Magnetic Seal ⑤ Glass Door ⑮ Top Rail Bracket ⑥ Door Profile ⑯... -
Page 3: Tools Required
Tools Required Two people required. We recommend that a technically competent installer should undertake this installation. Be sure you have all included parts and tools required before beginning installation and that you have plenty of space for assembly. PRE-INSTALLATION AND TECHNICAL REQUIREMENTS •... - Page 4 1. Measure the size of your shower enclosure against your walls, marking where it will be installed.
- Page 5 2. Place the aluminium profiles against the walls, marking where holes will be drilled.
- Page 6 3. Drill holes and insert wall plugs, screwing the aluminium profiles onto the walls.
- Page 7 4. Attach part 4 to the pivot hinge attached to the glass door. 5. Slide the glass fixing pieces on either side of the door into position, screwing them into place. 6. Carefully lift the side panel and glass door into place. 7.
- Page 8 9. Slide seals onto the glass side panel and glass door. 10. Attach the top rails.
- Page 9 11. Drill pilot holes in the aluminium profile. Screw the aluminium profile onto the profile along the glass door, inserting caps over holes. 12. Mark where holes for the fixing pieces should be drilled. Drill holes and insert plugs, screwing the fixing pieces into position. 13.
- Page 10 14. Attached the door handle. 15. Silicone and allow to dry for 24 hours.
