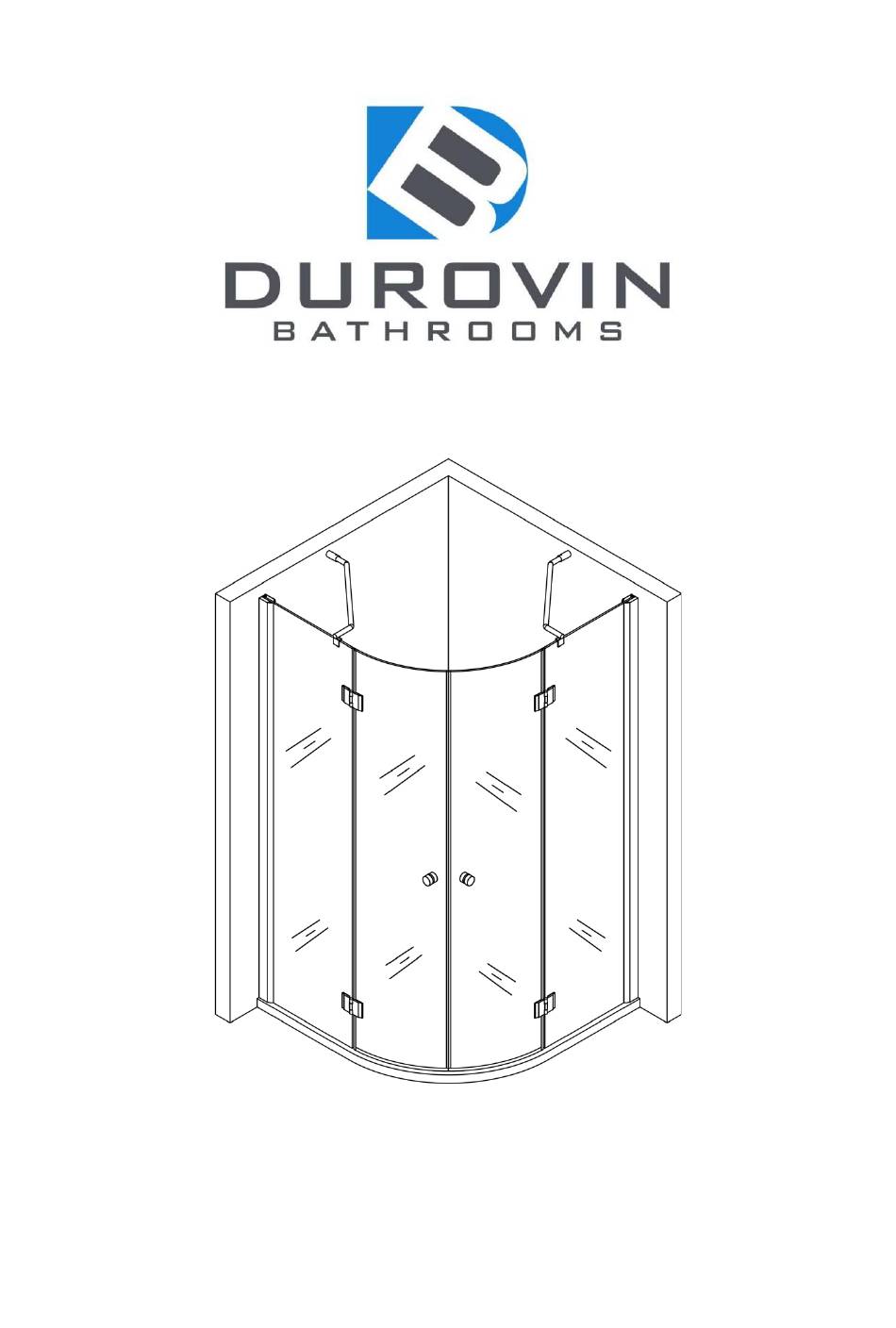

- Page 1 Ravenna 2 Instructions...
-
Page 2: Table Of Contents
Table of Contents Included Parts ....................3 Tools Required ....................4 Glass side panel assembly .................. 7 Glass door panel assembly ................. 8 Supporting bar assembly ................... 9 Profile cap assembly ..................10... -
Page 3: Included Parts
Included Parts Description Description Description ① Wall facing aluminium ⑦ Magnetic stripe ⑬ Stainless steel pads Side water retaining ② Decorative aluminium ⑧ ⑭ Pourable resin chock strip ③ Left fixed glass ⑨ Water under the door ⑮ Glass fixing piece ④... -
Page 6: Tools Required
Tools Required Two people required. We recommend that a technically competent installer should undertake this installation. Be sure you have all included parts and tools required before beginning installation and that you have plenty of space for assembly. If you have ordered this shower enclosure with one of our shower trays, please note that tiling should be done before the shower tray is installed. -
Page 7: Glass Side Panel Assembly
Glass side panel assembly 1. Check with a spirit level that the aluminium profile is level with the wall. 2. Mark with a pencil where holes will be drilled. 3. Drill holes and insert wall plugs. 4. Screw the aluminium profile onto the wall. 5. -
Page 8: Glass Door Panel Assembly
Glass door panel assembly 7. Carefully install both glass doors. 8. Insert the magnetic strips onto the glass doors. 9. Attach handles to the glass doors. 10. Attach the door seal strips to the bottom of each door. -
Page 9: Supporting Bar Assembly
Supporting bar assembly 11. Adjust the magnetic door strips if needed, making sure that they are level. 12. Place supporting bars onto the side panels, using a pencil to mark where holes will be drilled. 13. Drill holes and insert wall plugs. 14. -
Page 10: Profile Cap Assembly
Profile cap assembly 17. Tighten the fixed glass screws. 18. Attach the decorative aluminium bar.
