Durovin Bathrooms Teramo 22 Manual

Double door shower
Hide thumbs Also See for Teramo 22:

Advertisement

Quick Links

Download this manual
Teramo 22 Double Door

Advertisement

loading
Need help?

Need help?

Do you have a question about the Teramo 22 and is the answer not in the manual?

Questions and answers

Related Manuals for Durovin Bathrooms Teramo 22

Summary of Contents for Durovin Bathrooms Teramo 22

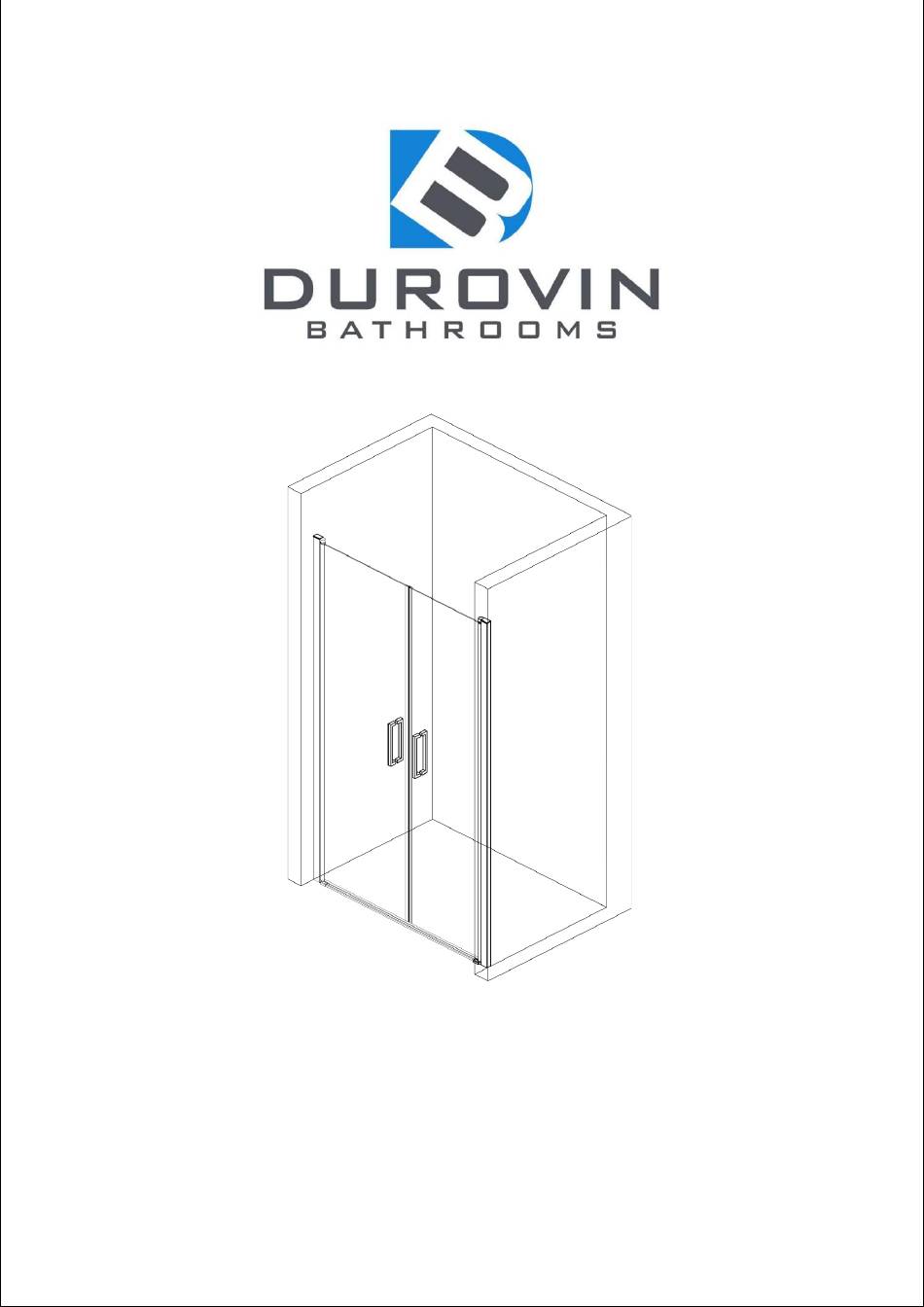

  • Page 1 Teramo 22 Double Door...

  • Page 2: Table Of Contents

    Table of Contents Included Parts ....................3 Tools Required ....................4 Aluminium Profile assembly................5 Glass door panel assembly ................8 Apply silicone sealant ..................11...

  • Page 3: Included Parts

    Included Parts Description Illustrations Description Illustration ① Weather Bar ⑦ Screws Aluminium Profile ② Fixing Pieces (R/L) 2 ⑧ Caps ③ Seals ⑨ Handles ④ Glass Doors ⑩ Seals Aluminium ⑤ ⑪ Caps Profiles ⑥ Plugs ⑫ Screws...

  • Page 4: Tools Required

    Tools Required Two people required. We recommend that a technically competent installer should undertake this installation. Be sure you have all included parts and tools required before beginning installation and that you have plenty of space for assembly. If you have ordered this shower enclosure with one of our shower trays, please note that tiling should be done before the shower tray is installed.

  • Page 5: Aluminium Profile Assembly

    Aluminium Profile assembly 1. Measure how far forwards your shower door will sit.
  • Page 6 2. Using a spirit level, place the aluminium profiles against each wall, marking where holes will be drilled.
  • Page 7 3. Drill holes and insert wall plugs. 4. Screw the aluminium profiles onto each wall.

  • Page 8: Glass Door Panel Assembly

    Glass door panel assembly 5. Carefully lift the glass doors, sliding them into the aluminium profiles.
  • Page 9 6. Slide seals onto both glass doors. 7. Carefully drill pilot holes into the aluminium profiles, screwing the aluminium profile onto the profile against the glass door, inserting caps over the screws. 8. Slide the bottom seals onto each glass door.
  • Page 10 9. Insert caps on top of both aluminium profiles. 10. Slide fixing pieces into place, marking where holes will be drilled. 11. Drill holes and insert plugs, screwing the fixing pieces into place. 12. Attach weather bar to the fixing pieces.

  • Page 11: Apply Silicone Sealant

    Apply silicone sealant 13. Attach the handles to the glass doors. 14. Silicone and allow to dry for 24 hours.
