Durovin Bathrooms Ravenna 6 MMD06 Manual

Quadrant shower

MMD06

Ravenna 6 Quadrant

Table of Contents

Need help?

Do you have a question about the Ravenna 6 MMD06 and is the answer not in the manual?

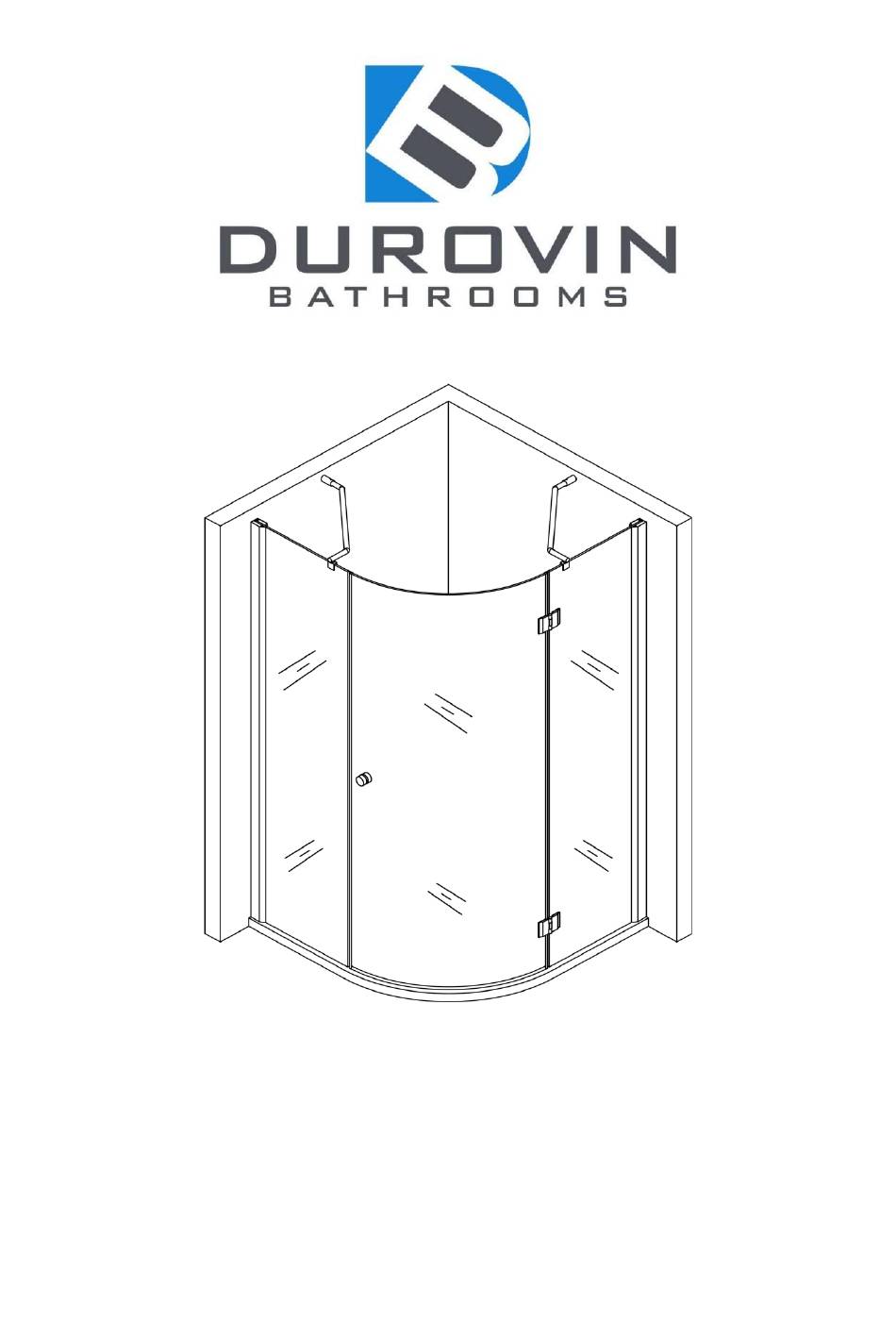

Page 1 MMD06 Ravenna 6 Quadrant...
Page 2 Included Parts...
Page 4 Tools Required Two people required. We recommend that a technically competent installer should undertake this installation. Be sure you have all included parts and tools required before beginning installation and that you have plenty of space for assembly. PRE-INSTALLATION AND TECHNICAL REQUIREMENTS •...
Page 5 1. Place the aluminium profiles against the walls, marking where holes will be drilled. 2. Drill the holes and insert wall plugs. 3. Screw the aluminium profile onto the wall. 4. Carefully lift the glass side panels into place, screwing them onto the aluminium profile.
Page 6 6. Carefully lift the glass door into place, attaching it to the hinges. 7. Slide seals onto the glass side panels and glass door. 8. Slide the magnetic strip onto the glass door. 9. Slide the bottom seal onto the glass door.
Page 7 10. Mark where the holes for the supporting brackets will be drilled. 11. Drill holes and insert wall plugs. 12. Screw the supporting brackets into place. 13. Mark and drill holes for the glass fixing pieces, screwing them into place.
Page 8 14. Tighten the glass panels onto the aluminium bar. 15. Attach the decorative strips of the over screws.
