Summary of Contents for Durovin Bathrooms DR04

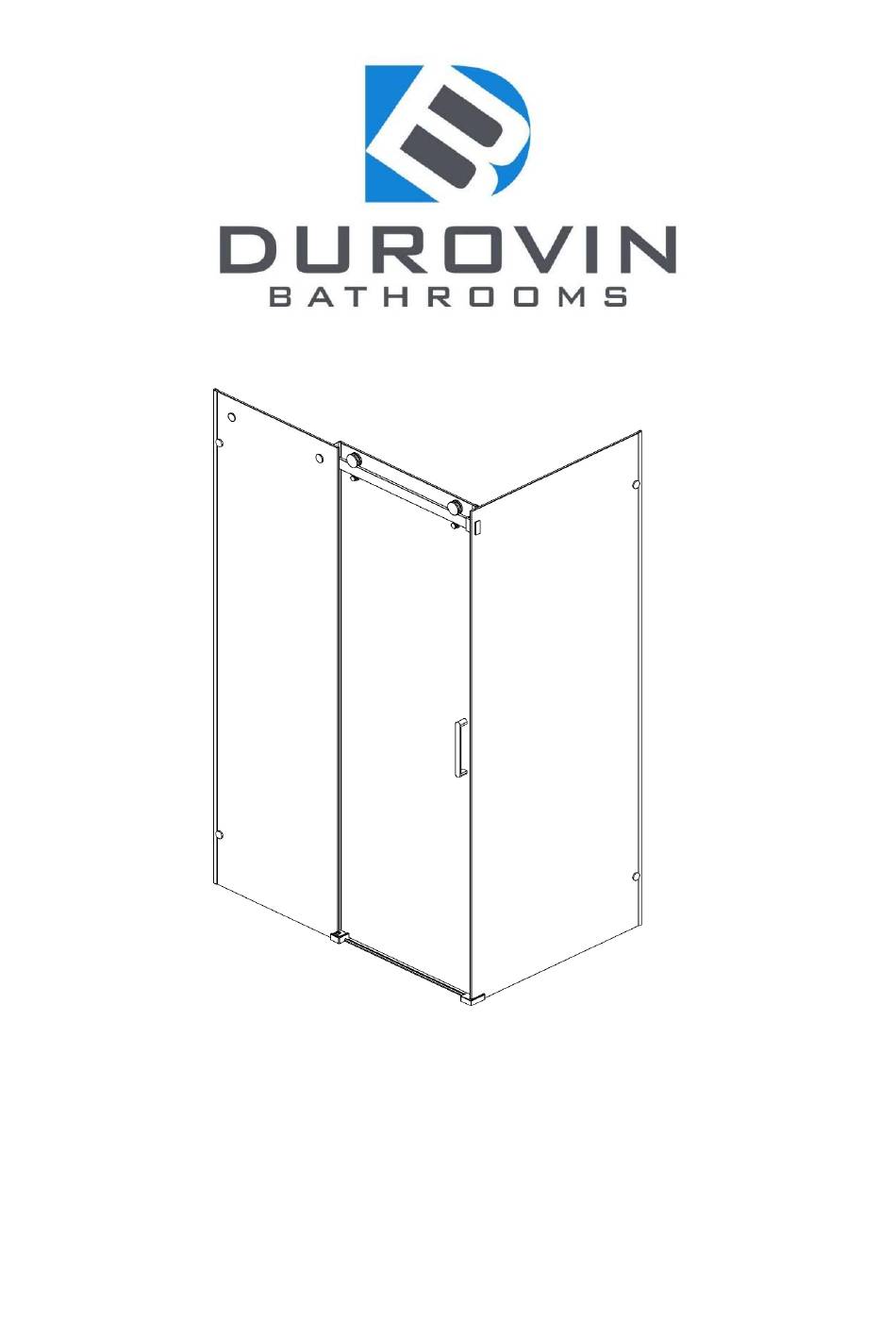

- Page 1 DR04 Ravenna 17-2nd L shape...
-
Page 2: Table Of Contents
Table of Contents Included Parts ..................3 Tools Required ..................4 Sealing strip and brackets assembly ............5 Glass side panel assembly ................ 6 Glass door panel assembly ..............10 Apply silicone sealant ................12... -
Page 3: Included Parts
Included Parts Description Illustrations Description Illustration ① Bottom Seal Glass Door ⑫ ② Fixing Pieces (R/L) 1 Caps ⑬ ③ Screws Door Seal ⑭ ④ Door Seal Top Rail Brackets ⑮ ⑤ Glass Panel Top Rail End Plate ⑯ ⑥ Brackets Glass Panel ⑰... -
Page 4: Tools Required
Tools Required Two people required. We recommend that a technically competent installer should undertake this installation. Be sure you have all included parts and tools required before beginning installation and that you have plenty of space for assembly. If you have ordered this shower enclosure with one of our shower trays, please note that tiling should be done before the shower tray is installed. -
Page 5: Sealing Strip And Brackets Assembly
Sealing strip and brackets assembly 1. Attach both side panel seals to the glass side panels. 2. Attach the four brackets to the glass side panels. -
Page 6: Glass Side Panel Assembly
Glass side panel assembly 3. Measure and mark where the glass side panels will be positioned. - Page 7 4. Using a spirit level and a pencil, be sure that the side panels will be level before marking where holes will be drilled for the brackets and top rail.
- Page 8 5. Drill holes and insert wall plugs. 6. Carefully lift and screw the glass side panels onto the walls.
- Page 9 7. Screw the top rail brackets to the wall and opposite glass side panel, attaching the top rail and tightening into place. 8. Attach the top rail to the glass panel is it sitting against for added support. 9. Drill holes into the shower tray or floor for the side panel fixing pieces, insert plugs and screw the fixing pieces into place.
-
Page 10: Glass Door Panel Assembly
Glass door panel assembly 10. Attach the rollers to the door. 11. Carefully lift the glass door onto the top rail, being sure that it slots into the fixing piece on the floor. - Page 11 12. Attach seal to the glass door. 13. Attach handles to the glass door.
-
Page 12: Apply Silicone Sealant
Apply silicone sealant 14. Attach caps onto brackets and rollers. 15. Silicone around the bottom of the glass, allowing it to dry for 24 hours.
