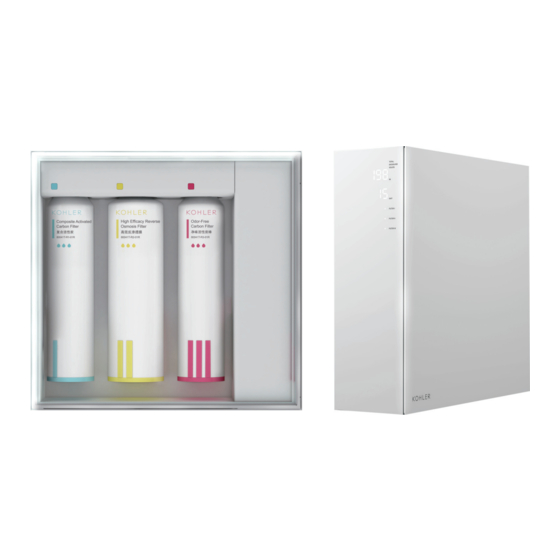

- Page 1 Installation Guide Kitchen Water Filtration System Carafe Series K-80021T-KP040-01R/K-80021T-KP050-01R K-80021T-KPC40-01R/K-80021T-KPC50-01R K-80021T-KPD40-01R/K-80021T-KPD50-01R K-80021T-KPE40-01R/K-80021T-KPE50-01R KP040 /KP050 KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 © Copyright Kohler China Investment Co., Ltd. 1276024-T01-G ©...
-
Page 2: Before You Begin
Inlet Pressure Range: 0.1-0.4MPa, If water pressure exceeds 0.4MPa, please install pressure 0.4MPa limiting valve. (Please consult plumbing professionals authorized by Kohler for water pressure measurement). CAUTION! Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. - Page 3 Unit: mm Reference Value Refer to Service Parts Page for the Exploded Diagram. Kohler reserves the right to change marked dimensions without prior notice. WATERWAY FIGURE High Pressure Switch Low Pressure Switch Pure Water Inlet Solenoid Valve Water Supply Outlet TDS...
-
Page 4: Performance Data Sheet
K-80021T-KPC50-01R K-80021T-KPD40-01R K-80021T-KPD50-01R K-80021T-KPE40-01R K-80021T-KPE50-01R Kitchen Water Filtration System Kitchen Water Filtration System Carafe 400GPD Carafe 500GPD Description 400GPD 500GPD Name Kohler Reverse Osmosis Purifier KP040 KP050 RO400-C RO500-C Model RO400-D RO500-D RO400-E RO500-E Product Rate 1.05L/min 1.31L/min Inlet Pressure/Operation Temperature 0.15~0.4MPa/0.6~0.8MPa/5~38... - Page 5 PERFORMANCE DATA SHEET PERFORMANCE DATA SHEET Key Components Specification Key Component Unit Name KP040 RO-400-C/D/E KP050 RO-500-C/D/E Particles: 6-40meshes Weight: 240g Granular Activated Carbon 6-40 240g µ Composite PE Cotton Filter Aperture 50 m Activated 76mm 25.4mm Carbon Filter µ Foldable Membrane Filter Aperture 10 m...
-
Page 6: Getting Started
GETTING STARTED GETTING STARTED Packaging List Installation Guide & Service Parts Page & Compliance Certification Power Adaper: Transform 220VAC, 50Hz into 24VDC 220V 50Hz CAUTION! The system works on 24VDC electrical power only. Be sure to use the included Power Adapter. -
Page 7: Installation
Faucet Installation Manual for tools and detailed installation G1/2" steps of water filtration faucet. For water filtration faucet other than Kohler brand, please make sure the inlet dimension is G1/2" or with a 1/4" adapter). 1. Make sure cold water supply line under the sink is turned off;... - Page 8 1/4" x 1/2" Male Thread Faucet Adapter Hot Water Supply Valve accept the drain tubing from the RO system. Kohler offers a saddle kit, PN 1275904, designed for 40mm undersink 1/4" Plastic Tubing-Product Water drain plumbing (Figure 13).
- Page 9 Change new filter matched the button colour. Aim at the dot, rotate 90 degrees to fix. Fig.#9 Please replace filter when prompted by the indicator. K-80021T-KP040-01R System Model KP040/KP050 K-80021T-KPD50-01R K-80021T-KPD40-01R K-80021T-KPC40-01R K-80021T-KP050-01R K-80021T-KPC50-01R K-80021T-KPE50-01R K-80021T-KPE40-01R First Stage K-80031T-R1-01R K-80041T-R1-01R Second Stage K-80031T-R2-01R K-80031T-LR2-01R...
- Page 10 CAUTION! If the power cord from the transformer to the unit looks or becomes damaged, the cord and transformer should be replaced by a Kohler Service Agent or similarly qualified person in order to avoid a hazard. CAUTION! Do not touch the power plug with a wet hand.
-
Page 11: Performance Indicator
PERFORMANCE INDICATOR PRODUCE: When first time Start-up procedure is finished, each time open the water filtration faucet to get the pure water in&out water TDS value will light on shut off the faucet, all lights black out When filter life is running low or out each time open the filtration faucet filter LEDs will change to orange with normally lighting on or blinking. - Page 12 TDS LED "Err" ERROR: When system error is detected, the influent water TDS value LED change to display an "Err" symbol, and the effluent water TDS value LED will display an error code to show a type of errors. System Alarm (One long beep) Error 01: Leaking issue Error 02: EEPROM When the leaking issue...
- Page 13 5 minutes before reusing it; If leaks occur and persist on system, please first turn off the water supply valve. Call Kohler -Free Technical Support line directly or your local distributor authorized by Kohler;...
-
Page 14: Troubleshooting Guide
Check all fittings for tightness. Tubing abraded in seal area. Recut tubing and redo connection. System inside leakage. Contact Kohler service. "Err1" Note: all the leakage (including not the system Note: after above steps, please unplug the leakage) could be detected and system will force power first ,then wipe &... - Page 15 X: Indicates that at least one of the homogeneous substance in the material composition is below the high limits of the current requirements in GB/T 26572. The product "service life for environment protection" is 10 years; Kohler Company will specify product service life based on product characteristics. The product "service life for environment protection" is only effective when the product is used as described in the product specification.
- Page 16 NSF Test Data Sheet The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 58. System tested and certified by NSF International against NSF/ANSI Standard 58 for the reduction of Total Dissolved Solids.
- Page 17 KP040 KP040 ( TDS-IN TDS-OUT) RO400-L ( TDS-OUT) RO400-A TDS-IN TDS-OUT) RO400-X ( TDS-IN TDS-OUT) RO400-C ( TDS-OUT) RO400-D ( TDS-IN TDS-OUT) RO400-E ( TDS-OUT) KP050 KP050 ( TDS-IN TDS-OUT) RO500-L ( TDS-OUT) RO500-A TDS-IN TDS-OUT) RO500-X ( TDS-IN TDS-OUT) RO500-C ( TDS-OUT) RO500-D...
