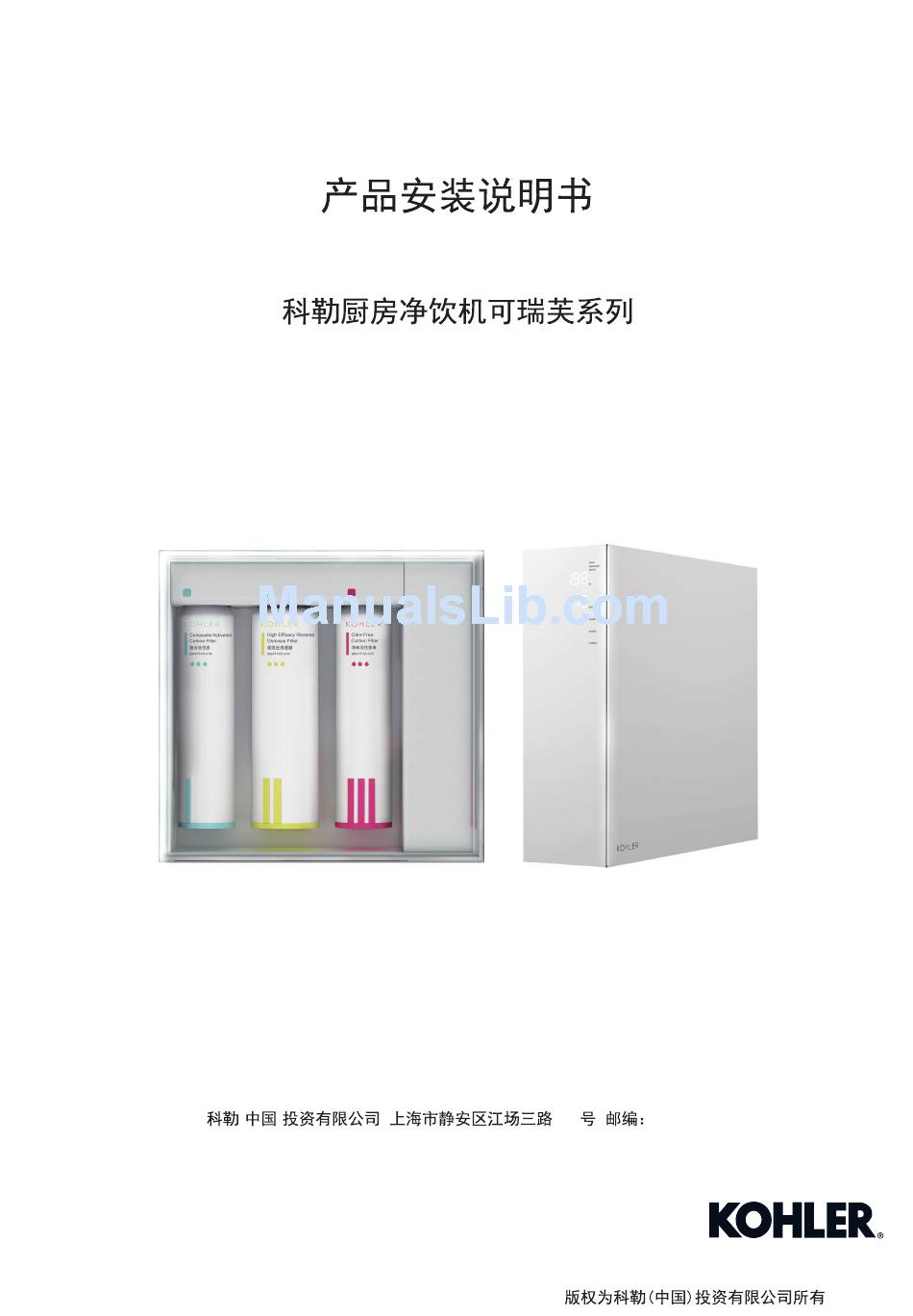

Installation Guide

Kitchen Water Filtration System Carafe Series
K-80021T-KP040-01R/K-80021T-KP050-01R
KOHLER CHINA INVESTMENT CO., LTD
NO.158, JIANG CHANG SAN ROAD,
JING'AN DISTRICT, SHANGHAI, PRC
POST CODE: 200436
(
)
158
200436
©
Copyright Kohler China Investment Co., Ltd. 2016
1276024-T01-D
©
2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-80021T-KP040-01R and is the answer not in the manual?

Questions and answers

Summary of Contents for Kohler K-80021T-KP040-01R

  • Page 1: Installation Guide

    Installation Guide Kitchen Water Filtration System Carafe Series K-80021T-KP040-01R/K-80021T-KP050-01R KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 © Copyright Kohler China Investment Co., Ltd. 2016 1276024-T01-D © 2016...
  • Page 2: Before You Begin

    CAUTION! Inlet Pressure Range: 150-400 kPa, If water pressure exceeds 400kPa, please install pressure limiting valve. (Please consult plumbing professionals or dealers authorized by Kohler for water pressure measurement). CAUTION! Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester.
  • Page 3 Unit: mm Reference Value 482.5 149.4 Kohler reserves the right to change marked dimensions without prior notice. WATERWAY FIGURE High Pressure Switch Low Pressure Switch Pure Water Inlet Solenoid Valve Water Supply Outlet TDS Inlet TDS Composite Activated High Efficacy Reverse...
  • Page 4: Performance Data Sheet

    PERFORMANCE DATA SHEET PERFORMANCE DATA SHEET Model 80021T-KP040-01R( KP040 80021T-KP050-01R( KP050 Production Rate 400 gpd (1500 500 gpd (1900 Standard Applications Standard Applications Ratio of Product to Flush Flow 1400gal (Chlorine reduction) 1600gal (Chlorine reduction) Composite Activated Carbon Filter Total product water & drain Total product water &...
  • Page 5: Getting Started

    GETTING STARTED GETTING STARTED Packaging List Installation Guide & Service Parts Page & Compliance Certification Power Adaper: Transform 220VAC, 50Hz into 24VDC 220V 50Hz CAUTION! The system works on 24VDC electrical power only. Be sure to use the included Power Adapter.
  • Page 6: Installation

    Faucet Installation Manual for tools and detailed installation G1/2" steps of water filtration faucet. For water filtration faucet other than Kohler brand, please make sure the inlet dimension is G1/2" or with a 1/4" adapter). 1. Make sure cold water supply line under the sink is turned off;...
  • Page 7 1/4" x 1/2" Male Thread Faucet Adapter Hot Water Supply Valve accept the drain tubing from the RO system. Kohler offers a saddle kit, PN 1275904, designed for 40mm undersink 1/4" Plastic Tubing-Product Water drain plumbing (Figure 13).
  • Page 8 Rotate 90 degree & Pull out the old filter. Change new filter matched the button colour. Aim at the dot, rotate 90 degrees to fix. Fig.#9 Please replace filter when prompted by the indicator. System Model K-80021T-KP040-01R K-80021T-KP050-01R First Stage 80031T-R1-01R 80041T-R1-01R Second Stage...
  • Page 9 CAUTION! If the power cord from the transformer to the unit looks or becomes damaged, the cord and transformer should be replaced by a Kohler Service Agent or similarly qualified person in order to avoid a hazard. CAUTION! Do not touch the power plug with a wet hand.
  • Page 10: Performance Indicator

    PERFORMANCE INDICATOR PRODUCE: When first time Start-up procedure is finished, each time open the water filtration faucet to get the pure water in&out water TDS value will light on shut off the faucet, all lights black out When filter life is running low or out each time open the filtration faucet filter LEDs will change to orange with normally lighting on or blinking.
  • Page 11 TDS LED "Err" ERROR: When system error is detected, the influent water TDS value LED change to display an "Err" symbol, and the effluent water TDS value LED will display an error code to show a type of errors. System Alarm (One long beep) Error 01: Leaking issue Error 02: EEPROM When the leaking issue...
  • Page 12 5 minutes before reusing it; If leaks occur and persist on system, please first turn off the water supply valve. Call Kohler -Free Technical Support line directly or your local distributor authorized by Kohler;...
  • Page 13: Troubleshooting Guide

    Check all fittings for tightness. Tubing abraded in seal area. Recut tubing and redo connection. System inside leakage. Contact Kohler service. "Err1" Note: all the leakage (including not the system Note: after above steps, please unplug the leakage) could be detected and system will force power first ,then wipe &...
  • Page 14 80021T-KP040-01R( KP040 80021T-KP050-01R( KP050 220V/50Hz 5-38 1.31L/min 1.05L/min 3900L 3800L 0.15-0.4Mpa 302-303 307-308 Q31/0108000050C001 (2015) 0123 1276024-T01-D...
