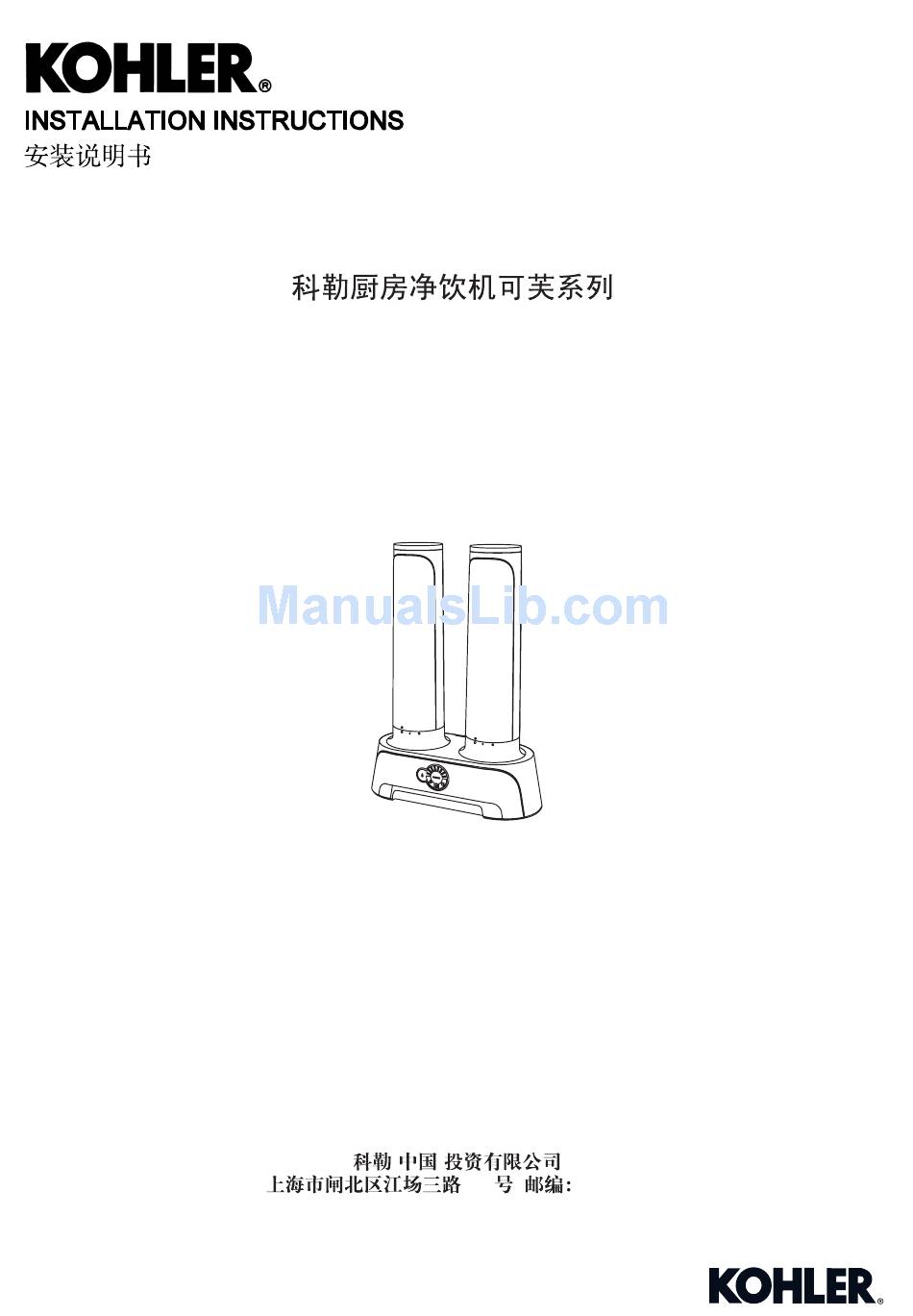

- Page 1 Cuff Water Filtration System K-5339T-KT100/K-5339T-KT200 K-5339T-KT400/K-5339T-KT500 200436 1211428-T01-A...
-
Page 2: Before You Begin
Pressure Range: 100-400 kPa, If water pressure exceeds 400kPa, please install pressure limiting valve. Otherwise, the ultrafiltration membrane may not achieve best filtration effect due to long time overpressure. (Please consult plumbing professionals or dealers authorized by Kohler for water pressure measurement). · ·... - Page 3 Adjustable wrench · · Utility knife or tube cutter Other Materiel (for use if necessary) · · Thread Sealant Tape · · Adapter ROUGHING-IN Unit: mm Reference Value Kohler reserves the right to change marked dimensions without prior notice. 1211428-T01-A...
-
Page 4: Installation
Installation Manual for tools and detailed installation steps of G1/2" water filtration faucet. For water filtration faucet other than Kohler brand, please make sure the inlet dimension is G1/2" or with a 3/8" adaptor). 1. Make sure cold water supply line under the sink is turned off;... - Page 5 Tap Faucet Step 2: Making connections Water Filtration Faucet · (KT100 KT200 KT400) According to the corresponding colors, insert the black 3/8" Plastic tubing into the filter inlet port and 3/8" x 1/2" the water supply adapter, insert the blue Male Thread Faucet Adapter 3/8"...
- Page 6 Step 3: Installing Filter Cartridge & Replacing Filter Cartridges · · Remove and discard the dustproof cap (sanitary protective cap) from the cartridge; · · Verify both O-rings are present and positioned correctly in the grooves; · · Push the filter cartridge Leve1 (blue color matching icon ) into the filter base on the left side and the filter cartridge Leve2 (orange color matching icon ) on the right side, align the hollow icon of the cartridge with the hollow icon...
- Page 7 Step 6: Install Batteries · · Remove the back cover, install three AA batteries ( 9) according to directions for positive and negative poles, put the cover back. (Figure 9) Figure 9 Step 7: Display Confirmation · · Push and hold the reset button for approximately 5 seconds until all lights are on ( Figure 10 ( 10)
- Page 8 5 minutes before reusing it; · · If leaks occur and persist on system, please first turn off the water supply valve. Call Kohler -Free Technical Support line directly or your local distributor authorized by Kohler; · ·...
-
Page 9: Troubleshooting Guide
Service life of carbon block cartridge Replace the cartridge. chlorine bleach. runs out. PERFORMANCE DATA SHEET · System tested by Kohler in accordance with NSF / ANSI · NSF / ANSI Standard 42&53 for the reduction of substances listed Standard 42&53 below. - Page 10 K-5339T-KT100 K-5339T-KT200 K-5339T-KT400 K-5339T-KT500 0.1-0.4MPa 1L/min 1L/min 1L/min 2L/min 1000L 2000L (2001) (2014) (2014) (2013) (2013) 0080 0080 0335 0336 1211428-T01-A...
