Kohler K-78433T-KH200-AF Installation Manual

Kohler kitchen water filtering & heating system stance series
Hide thumbs Also See for K-78433T-KH200-AF:

Advertisement

Quick Links

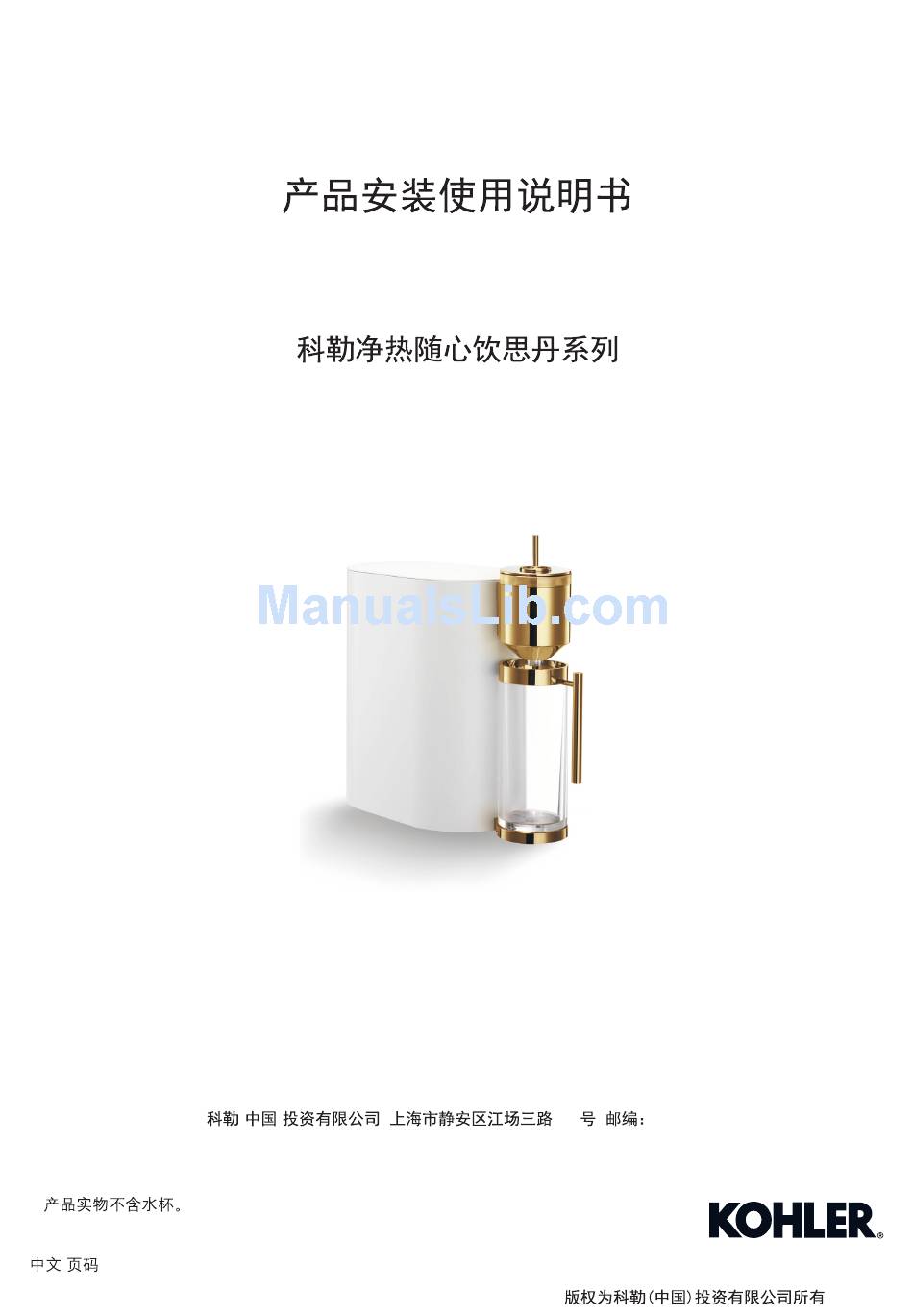

Installation Guide
Kohler Kitchen Water Filtering &
®
Heating System STANCE Series
K-78433T-KH100-CP/K-78433T-KH200-AF
KOHLER CHINA INVESTMENT CO., LTD
NO.158, JIANG CHANG SAN ROAD,
JING'AN DISTRICT, SHANGHAI, PRC
POST CODE: 200436
(
)
158
200436
* Cup is not included.
*
English page 1-13
14-28
©
Copyright Kohler China Investment Co., Ltd. 2017
1301936-T01-A
©
2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the K-78433T-KH200-AF and is the answer not in the manual?

Questions and answers

Related Manuals for Kohler K-78433T-KH200-AF

Summary of Contents for Kohler K-78433T-KH200-AF

  • Page 1 Heating System STANCE Series K-78433T-KH100-CP/K-78433T-KH200-AF KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 * Cup is not included. English page 1-13 14-28 © Copyright Kohler China Investment Co., Ltd. 2017 1301936-T01-A © 2017...

  • Page 2: Table Of Contents

    Please read this Installation Guide carefully prior to installation and operation of this system. You can also visit www.kohler.com.cn for an electronic copy of the Installation Guide or obtain the latest product information by following the official Kohler Water Filtration wechat account: kohlerwater.

  • Page 3: Product Function

    Because the length of the drain tubing, there is a delay after pressing the stop button, so please remove the cup only after the outlet water tubing is completely drained, so as to avoid burns. Please call the Kohler Hotline (800 820 2628 / 400 820 2628) for maintenance and repair. Do not disassemble the product yourself.
  • Page 4 The inlet pressure range of this system is 0.1 MPa-0.4 MPa. If water pressure exceeds 0.4 MPa, installation of a pressure limiting valve is required. (Please consult plumbing professionals or dealers authorized by Kohler for water pressure measurement); Do not install where water hammer conditions may occur. If water hammer conditions exist, installation of a water hammer arrester is required;...

  • Page 5: Product Specification

    3. PRODUCT SPECIFICATION K-78433T-KH100-CP K-78433T-KH200-AF Kohler Drinking Water Filtration System Kohler Drinking Water Filtration System Product Name STANCE 100- Silver STANCE 200- Gold Kohler KH100 Reverse Osmosis Kohler KH200 Reverse Osmosis Product Model Number Drinking Water System Drinking Water System...

  • Page 6: Installation

    4. INSTALLATION Packaging List 1. Main Body: Main Body, Cover 2. 3 filters per set 3. Drip Tray 4. Inlet tubing, outlet tubing (1/4") 5. Inlet water supply adapter 6. Drain Saddle Clamp Kit 7. Installation Guide & Service Parts Page & Compliance Certification Required Tools &...
  • Page 7 Step 1: Making inlet connections 1. Turn off the cold water supply valve and drain the water inside the faucet as much as possible; (Figure 1) 2. Disconnect the cold water line from the threaded stub on the bottom of the tap faucet; (Figure 2) 3.
  • Page 8 Step 2: Making drain connections 1. Affix a saddle clamp onto the drain tubing and insert the 1/4" drain tubing. (Figure 4) 2. Connect the other end of the 1/4" drain tubing to the drain port. Tap faucet 1/4" Drain Plastic Tubing 1/4"...

  • Page 9: Operation Instructions

    Do not touch the plug or the electrically charged part of this device with wet hands. If the unit produces a strange noise or odd smell, immediately unplug the system from the electrical outlet and call the Kohler Service Center. Note: The system will not be operable immediately after starting up, because it is performing the self- cleaning procedure.
  • Page 10 Temperature indicator: When selecting temperature modes, the display panel will show the pre-set temperature of each mode. When dispensing water, the display panel will show the actual temperature of the water. (Note: There will be slight deviations between the displayed water temperature and the pre-set temperature) Water volume indicator: See the light indicator of the water volume knob.
  • Page 11 Filter indicator: The filter is indicated by a red light Alert: The red light of the filter indicator stays on Expiration: The red light of the filter indicator is blinking Self-cleaning countdown reminder: The system will display a rough estimate of the remaining time for washout when in the self-cleaning state.

  • Page 12: Filter Cartridge Replacement

    The UV light will be turned on every 4 hours for sterilization. 6. FILTER CARTRIDGE REPLACEMENT Please replace filters periodically when prompted by the indicator. The corresponding filter model numbers are as follows: System Model K-78433T-KH100-CP Expected replacement Cycle K-78433T-KH200-AF First Stage 9 month or K-78435T-R1-01R Stance-Composite 4000L Activated Carbon Filter...

  • Page 13: Troubleshooting Guide

    Steps to replace filter are as follows: 1. Turn off the water supply and power; 2. Rotate the filter by 90 degrees and remove the old filter; 3. Remove the filter packaging and take off the dustproof cap. Place the filter into the filter bucket according to the corresponding steps, rotate the filter by 90 degrees, and make sure the filter is rotated to the correct position.
  • Page 14 Unusual start of the low pressure switch Short circuit/open circuit of the water outlet temperature sensor Short circuit/open circuit of the water inlet temperature sensor Call the Kohler Service Center to solve the Short circuit/open circuit of the over- issue. temperature protection sensor Heating element failure...
  • Page 15 .................................15 .................................15 .................................17 .................................20 .................................23 .................................26 ............................27 www.kohler.com.cn [kohlerwater] 1301936-T01-A...
  • Page 16 (800 820 2628 / 400 820 2628) 1301936-T01-A...
  • Page 17 (5~38 ) 0.1MPa~0.4MPa 0.4MPa 1301936-T01-A...
  • Page 18 K-78433T-KH100-CP K-78433T-KH200-AF 100- 200- KH100 KH200 220V ~ /50HZ 2200 W 1.5 L 188X418X430 ( X X ) 10kg /12kg 0.1~0.4 MPa (14.5 psi~ 60 psi) 0.4~0.7 MPa (60 psi~ 101 psi) 5~38 (41-100 (2001) 0.13 L/min 50 gpd ( 190 8L/h (>85 )
  • Page 19 1301936-T01-A...
  • Page 20 220VAC /50HZ 1301936-T01-A...
  • Page 21 2. 1 3 (2 ) 1301936-T01-A...
  • Page 22 ( 1) ( 2) ( 3) 1301936-T01-A...
  • Page 23 1301936-T01-A...
  • Page 24 1301936-T01-A...
  • Page 25 1301936-T01-A...
  • Page 26 1301936-T01-A...
  • Page 27 3. 36 4. 72 5. UV >99.9% K-78433T-KH100-CP K-78433T-KH200-AF K-78435T-R1-01R 4000L K-78435T-R2-01R K-78435T-R3-01R 2000L 1301936-T01-A...
  • Page 28 00 - UV 01 - 02 - 03 - 99 ) ( 20 ( 12 1301936-T01-A...
  • Page 29 0.1MPa 1 ~45 1301936-T01-A...
