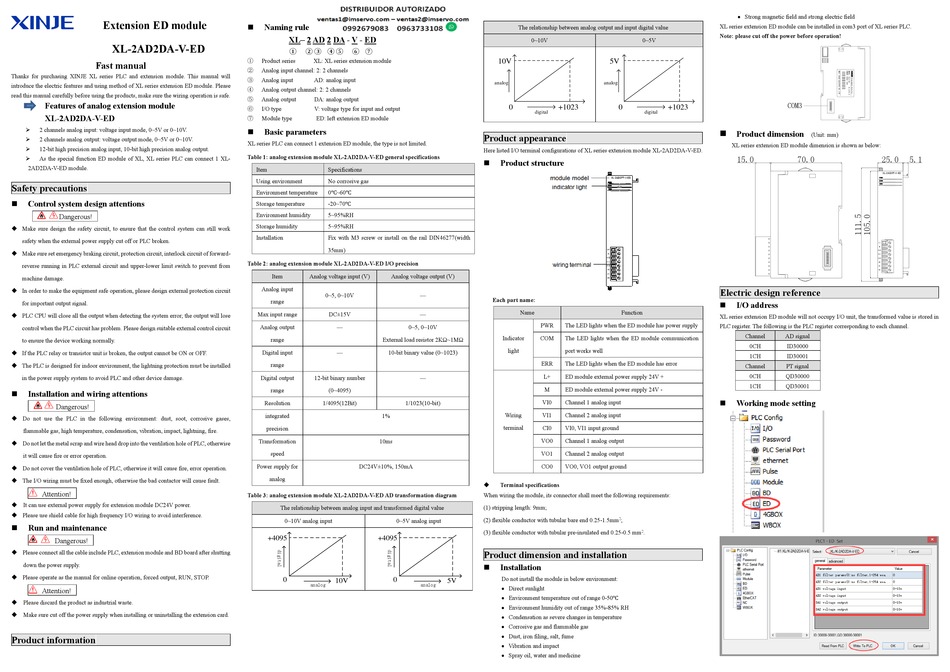

Xinje XL-2AD2DA-V-ED Manual

Extension ED module
XL-2AD2DA-V-ED
Fast manual
Thanks for purchasing XINJE XL series PLC and extension module. This manual will
introduce the electric features and using method of XL series extension ED module. Please
read this manual carefully before using the products, make sure the wiring operation is safe.

Features of analog extension module

XL-2AD2DA-V-ED
 2 channels analog input: voltage input mode, 0~5V or 0~10V.
 2 channels analog output: voltage output mode, 0~5V or 0~10V.
 12-bit high precision analog input, 10-bit high precision analog output.
 As the special function ED module of XL, XL series PLC can connect 1 XL-
2AD2DA-V-ED module.

Safety precautions



Control system design attentions

Dangerous!
 Make sure design the safety circuit, to ensure that the control system can still work
safety when the external power supply cut off or PLC broken.
 Make sure set emergency braking circuit, protection circuit, interlock circuit of forward-
reverse running in PLC external circuit and upper-lower limit switch to prevent from
machine damage.
 In order to make the equipment safe operation, please design external protection circuit
for important output signal.
 PLC CPU will close all the output when detecting the system error; the output will lose
control when the PLC circuit has problem. Please design suitable external control circuit
to ensure the device working normally.
 If the PLC relay or transistor unit is broken, the output cannot be ON or OFF.
 The PLC is designed for indoor environment, the lightning protection must be installed
in the power supply system to avoid PLC and other device damage.


Installation and wiring attentions

Dangerous!
 Do not use the PLC in the following environment: dust, soot, corrosive gases,
flammable gas, high temperature, condensation, vibration, impact, lightning, fire.
 Do not let the metal scrap and wire head drop into the ventilation hole of PLC, otherwise
it will cause fire or error operation.
 Do not cover the ventilation hole of PLC, otherwise it will cause fire, error operation.
 The I/O wiring must be fixed enough, otherwise the bad contactor will cause fault.
Attention!
 It can use external power supply for extension module DC24V power.
 Please use shield cable for high frequency I/O wiring to avoid interference.


Run and maintenance

Dangerous!
 Please connect all the cable include PLC, extension module and BD board after shutting
down the power supply.
 Please operate as the manual for online operation, forced output, RUN, STOP.
Attention!
 Please discard the product as industrial waste.
 Make sure cut off the power supply when installing or uninstalling the extension card.

Product information

 Naming rule
XL– 2 AD 2 DA - V - ED
① ② ③ ④ ⑤ ⑥ ⑦
① Product series XL: XL series extension module
② Analog input channel: 2: 2 channels
③ Analog input AD: analog input
④ Analog output channel: 2: 2 channels
Analog output DA: analog output
⑤
⑥ I/O type V: voltage type for input and output
⑦ Module type ED: left extension ED module


Basic parameters

XL series PLC can connect 1 extension ED module, the type is not limited.
Table 1: analog extension module XL-2AD2DA-V-ED general specifications
Item Specifications
Using environment No corrosive gas
Environment temperature 0℃~60℃
Storage temperature -20~70℃
Environment humidity 5~95%RH
Storage humidity 5~95%RH

Installation

Fix with M3 screw or install on the rail DIN46277(width
35mm)
Table 2: analog extension module XL-2AD2DA-V-ED I/O precision
的导轨上
Item Analog voltage input (V) Analog voltage output (V)
Analog input
0~5, 0~10V —
range
Max input range DC±15V —
Analog output — 0~5, 0~10V
range External load resistor 2KΩ~1MΩ
Digital input — 10-bit binary value (0~1023)
range
Digital output 12-bit binary number —
range (0~4095)
Resolution 1/4095(12Bit) 1/1023(10-bit)
integrated 1%
precision
Transformation 10ms
speed
Power supply for DC24V±10%, 150mA
analog
Table 3: analog extension module XL-2AD2DA-V-ED AD transformation diagram
The relationship between analog input and transformed digital value
0~10V analog input 0~5V analog input
+4095 +4095
0 0
10V
analog analog
The relationship between analog output and input digital value
0~10V
Product appearance
Here listed I/O terminal configurations of XL series extension module XL-2AD2DA-V-ED.
 Product structure
Each part name:
Name Function
PWR The LED lights when the ED module has power supply
Indicator COM The LED lights when the ED module communication
light port works well
ERR The LED lights when the ED module has error
L+ ED module external power supply 24V +
M ED module external power supply 24V -
VI0 Channel 1 analog input
Wiring VI1 Channel 2 analog input
terminal CI0 VI0, VI1 input ground
VO0 Channel 1 analog output
VO1 Channel 2 analog output
CO0 VO0, VO1 output ground


Terminal specifications

When wiring the module, its connector shall meet the following requirements:
(1) stripping length: 9mm;
(2) flexible conductor with tubular bare end 0.25-1.5mm 2 ;
(3) flexible conductor with tubular pre-insulated end 0.25-0.5 mm

Product dimension and installation

 Installation
Do not install the module in below environment:
5V
 Direct sunlight
 Environment temperature out of range 0-50℃
 Environment humidity out of range 35%-85% RH
 Condensation as severe changes in temperature
 Corrosive gas and flammable gas
 Dust, iron filing, salt, fume
 Vibration and impact
 Spray oil, water and medicine
 Strong magnetic field and strong electric field
XL series extension ED module can be installed in com3 port of XL series PLC.
Note: please cut off the power before operation!
0~5V

Product dimension
(Unit: mm)
XL series extension ED module dimension is shown as below:
Electric design reference


I/O address

XL series extension ED module will not occupy I/O unit, the transformed value is stored in
PLC register. The following is the PLC register corresponding to each channel.
Channel AD signal
0CH ID30000
1CH ID30001
Channel PT signal
0CH QD30000
1CH QD30001


Working mode setting

2
.
XL-2AD2PT-V-ED
L+
M
VI0
VI1
CI0
A0
A1
C0
