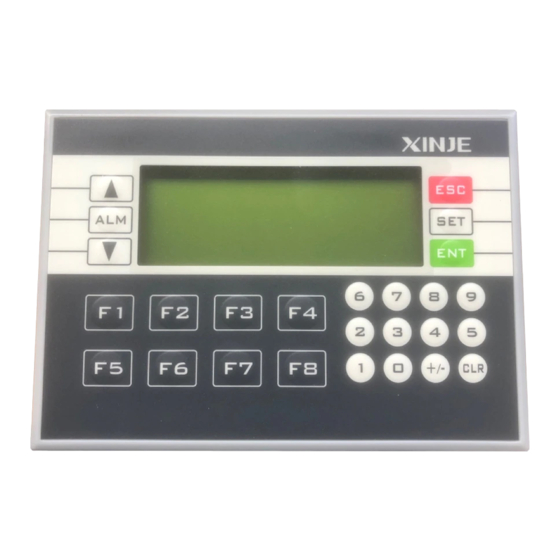

Xinje XP2-18R Operating Manual

Integral industrial controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

XINJE
XP/XMP-18
series
Integral industrial controller
Operating manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XP2-18R and is the answer not in the manual?

Questions and answers

Related Manuals for Xinje XP2-18R

Summary of Contents for Xinje XP2-18R

  • Page 1 XINJE XP/XMP-18 series Integral industrial controller Operating manual...
  • Page 2 Xinje Catalog Preface XP/XMP-18 Safety Notes S e r i e s ———————————————————— Summarization ———————————————————— O p e r a t i n g m a n u a l Input/output specification exterior layout ———————————————————— PLC Function and Application ————————————————————...
  • Page 3 Correct used along with the peripheral equipments recognized or recommended Application by Xinje Electronic. They could only work normally in the condition of be transported, kept and installed correctly, also please operate and maintain them according to the recommendation. Xinje Electronic Co., Ltd.

  • Page 4: Table Of Contents

    Catalog SAFETY NOTICE ..........................8 1. SUMMARIZATION ........................9 1-1. Product summarization ......................9 1-2. Specs ..........................11 1-3. Parts explanation......................13 1-4. Outline dimension......................15 2. IN-OUT SPECS AND EXTERIOR LAYOUT ................17 2-1. Input specs ........................17 2-2. Relay output specs and circuit ..................19 2-3. Transistor output specs and circuit...................21 3.
  • Page 5 Preface Thank you for purchasing Xinje XP/XMP series integral industrial controller, please read the manual before operating. This manual provides user with the guide of using and operating our product, it Manual purpose includes the product characteristics, spec explanation, using method, etc.

  • Page 6: Safety Notice

    Safety notice Read the manual carefully before operating. Be aware of the safety and correct operation. The content below is focus on XP/XMP series products only. Please safekeeping the manual, put in somewhere easy to get and read and give the manual to final user.

  • Page 7: Summarization

    1. Summarization 1-1. Product summarization XP/XMP-18 series integral industrial controller integrated human machine interface (HMI) and PLC (XC1, XC2, XC3 series). It can instead of HMI and PLC to fulfill the control function. It can save space with slim outline and improve the convenience of maintenance. Product characteristics u Integrate logical control, analog quantity in-out and HMI into the product On-off quantity input: 10 points, optical coupling insulation...
  • Page 8 Type Name 1: Name XP, XMP series 2: PLC Type 1: XC1 series 2: XC2 series 3: XC3 series 3: In-out points 18: Input 10 points, output 8 points 4: Output Type R: Relay output T: Transistor output RT: Relay&Transistor output Notice: XMP series exclude XMP2-32 series products in this manual.

  • Page 9: Specs

    1-2. Specs General Specs Item Specs Power supply DC12V～DC24V voltage Power Less than 10W（TYP2.0W） Power Electric Less than 20ms moment permit Endurable AC1000V/10MA for 1minute ( between signal voltage and ground ) Insulated About 10MΩ，DC500V ( between signal and impedance ground ) Operating 0～50℃...
  • Page 10 HMI Specs Item Specs XP series XMP series Type Kelly/Blue LCD Screen 3.7 inch dimension Useful life Over 20000 hours, 25℃, 24hours operating Display area 192*64 Contrast Regulation resistance available Characteristic Character Chinese, English setting Character size Lattice font, vector font Matrix or resistance Touch mode Touch unable...

  • Page 11: Parts Explanation

    Flash ROM Register（FD） 510 words 512 words 2048 words Extension D register (ED) 16383 High speed processing High speed count, pulse output, function external interrupt Setting of time scan space 0~99mS Password protection 6 bits ASCII Self diagnose function Power on self-diagnose, Monitor timer, grammar check Note: The user program capacity is referred to the capacity under “secret downloading mode”.
  • Page 12 HMI pictures. The pins function of the port is as below: Function Pin2 Pin3 Pin5 Pin7 Xinje provides special program cable to download the PLC program or HMI program. You also can make the cable by yourself. Please see the pin connection between PC and the port.

  • Page 13: Outline Dimension

    DB9 pins DB9 pins XP/XMP Communication port Communication port ( A and B ) is a RS-485 com port. This port is used to connect other devices. Please refer to paragraph 3-4 for details. 1-4. Outline dimension Outline dimension Unit: mm 5 6 .
  • Page 14 Installation dimension Unit: mm 1 6 4...

  • Page 15: In-Out Specs And Exterior Layout

    2. In-out specs and exterior layout 2-1. Input specs Basic unit Input signal’s DC24V±10% voltage D C p o w e r Input signal’s 7mA/DC24V s u p p l y current C O M Input ON current Above 4.5mA Input OFF current Below 1.5mA X * 0...
  • Page 16 Input points Connect input point and com point with non-voltage point or NPN open collector transistor to turn on the input. Input loop The first loop and the second loop are insulated by optical coupler, the second loop has C-R filter which can prevent wrong action caused by industry noise or input points oscillation.

  • Page 17: Relay Output Specs And Circuit

    2-2. Relay output specs and circuit Relay output specs Type R /RT output T output Relay output R：Y0~Y7 RT：Y4~Y7 Power supply Below AC250V、DC30V Circuit insulation Machinery insulation Action indication Produce close sound Resistor load Maximum Inductance 80VA load load LED load 100W Minimum load DC5V 2mA...
  • Page 18 absorber with the load. Output connection example T o a v o i d b u r n i n g P L C b a s i c c i r c u i t s e t a f u s e e v e r y 4 p o i n t s 5 A ～1 0 A + 2 4 V A C p o w e r...

  • Page 19: Transistor Output Specs And Circuit

    2-3. Transistor output specs and circuit Transistor output can divide into two types: high speed pulse output and normal transistor output. High speed pulse output Type RT output T output High speed pulse Y0～Y1 Y0~Y1 output point Power supply Below DC5~30V Maximum current 50mA Maximum...
  • Page 20 There is one common point for basic unit transistor output Power supply The load circuit power supply should be steady voltage of DC5~30V. Circuit insulation The inside circuit of XP/XMP is insulated with output transistor by optical coupler. Action indication When driving optical coupling，LED lights，output transistor is ON.

  • Page 21: Plc Function And Application

    3. PLC function and application 3-1. PLC instruction The XP/XMP integrated with XC series PLC. The function of PLC is the same as XC series. XP/XMP Type Integrated PLC type XP1/XMP1 series XC1 series XP2/XMP2 series XC2 series XP3/XMP3 series XC3 series Instruction 1.

  • Page 22: Soft Component Range

    X010 X011 X012 2. High speed pulse output u T type: Y0, Y1 available, the highest frequency is 200KHz u RT type: Y0, Y1 available, the highest frequency is 200KHz u R type: unavailable 3. Interrupt function Channel Input Pointer tag Disable interruption instruction...
  • Page 23 XP1/XMP1 series: Soft Name Range Points component Input points X000~X011(octal) Output points Y000~Y007(octal) M0~ M199 【M200~M319 】 For special using M8000~M8079 Auxiliary relay For special using M8120~M8139 For special using M8170~M8172 For special using M8238~M8242 For special using M8350~ M8370 Process S0~S31 T0~T23：100ms not accumulation...
  • Page 24 XP2/XMP2 and XP3/XMP3 series: Soft Range Point Name component XP2/XMP2 XP3/XMP3 XP2/XMP2 XP3/XMP3 Input point X000~X011(octal) Output Y000~Y007(octal) point M0~ M2999 8000 Auxiliary 【M3000~M7999 】 relay M8000~M8767 S0~ S511 Status 1024 【S512~M1023 】 T0~T99：100ms not accumulation T100~T199：100ms accumulation T200~T299：10ms not accumulation T300~T399：10ms accumulation Timer T400~T499：1ms not accumulation...
  • Page 25 power is cut (No battery). ※3. The serial number of input coil and output relay are octal data, other memorizers’ number are all decimal data. ※4. There is no I/O point connected with exterior device can be used as interior relay. Soft component power failure area setting: XP1/XMP1: Soft...

  • Page 26: Set Up A Project

    Users can set the power failure memory area, but the area can not over the soft component area. 3-3. Set up a project About the software The PLC program editing software is the same as Xinje XC series. Software name is XCPPro. The interface of software is as below: Set up a project We take XP3-18R as a example to explain how to set up a project.
  • Page 27 Choose “ XP3-18/XMP3-18”: XP1/XMP1series choose XP1-18/XMP1-18; XP2/XMP2 series choose XP2-18/XMP2-18； XP3/XMP3 series choose XP3-18/XMP3-18 2. Compile the program For program compiling and software operating please refer to XC Series Edit Tool XCP Pro User Manual.
  • Page 28 Download the program 1. Connection Before downloading the program, please ensure the XP/XMP has connected with PC successfully. ( The cable connection please refer to paragraph 1-3 ). Click to open software serial port configuration: Choose the correct serial port, baudrate and parity or click “check” to choose these parameters automatically.

  • Page 29: Communication Function

    After downloading, click to run the PLC program. Upload the program If you want to check the PLC program in XP/XMP, click to upload the program to the PC. Then click to save the program. 3-4. communication function XP/XMP series support Modbus and free format communication protocol. The instructions please refer to XC Series PLC Operating Manual paragraph 6-4-1 and 6-4-2.
  • Page 30 MODE ： XP3- 1 8 R SN ： 2 0 0 6 0 5 0 2 1 1 8 DATE ： 2 0 0 6 0 5 1 0 无锡市信捷科技电子有限公司 RS-485 com port RS-485 com port: Point A means “ + ” signal, point B means “ – ” signal. Attention: XP1/XMP1 series product can only be used as slaver station while using their RS-485 port to communicate with other devices.
  • Page 31 Number Function Description FD8220 Communication mode 255 is free format, ( station number ) 1~254 is modbus station number FD8221 Communication format Baud rate, data bit, stop bit, check FD8222 ASC timeout judgment time Unit: ms, 0 means no timeout waiting FD8223 Reply timeout judgment time Unit: ms, 0 means no timeout waiting...
  • Page 32 Modbus communication XMP series product support master and slave mode of Modbus communication protocol. Master format: When PLC is set to be master station, PLC sends request to other slave station devices via Modbus instructions, other devices respond to the master station. Slave format: When PLC is set to be slave station, it can only respond to other master devices.

  • Page 33: Hmi Function And Application

    4. HMI function and application 4-1. HMI function introduction The HMI part of XP/XMP used OP330/MP330 series display. The faceplate key-press function is as below: Key-press Function Whatever the mode of the display is in, it will return to original system screen once you press the key ( the defaulted screen is No.1 ).

  • Page 34: Build A Project

    4-2. Build a project About the software XP/XMP series product integrated the function of HMI and PLC, when editing the HMI screen, use HMI software OP20. The interface of OP20 is shown as below:...
  • Page 35 Build a project We take XMP3-18R as an example to explain how to build a project. 1. build a new project Open the OP software, click “file”-“new project” or click “ ” to build a new project. 2. choose the display type In the “select model”...
  • Page 36 Screen download 1. Select com port Before downloading the screen, select the correct com port. The port is DB9 pins serial port of PC. The computer will select the port automatically, user only need to know the port number. If user can not confirm which port to use, try each port in file.

  • Page 37: The Extension Ability Of Xp/Xmp

    5. The extension ability of XP/XMP 5-1. Extend BD board XP3/XMP3 series product (exclude XMP2-32R/T-E ) can extend XP3 series BD board via the insertion groove at the back in order to control and measure the analog quantity. The specs and type of BD board is as below table: BD board type Type Function...
  • Page 38 Input characteristic Insulation No insulation among each channel of PLC 0 point (As it is operated via data register, it is not restricted by master I/O point PLC’s standard max control points) XP3-2TC-P-BD: Items Content Analog input signal K type thermocouple Input points 2 points Temperature...
  • Page 39 range Integrated ±0.8% of the full-scale precision Convert time 15ms×4 channels PID output 0~K4095 Empty loader － 3500 defaulted value In-out characteristics insulation There is no insulation among each channel of PLC 0 point (As it is operated via data register, it is not restricted by master PLC’s standard I/O point max control points) Installation position of BD board...

  • Page 40: Extend Ma Model

    5-2. Extend MA model XP/XMP can extend MA model via RS-485 com port (A and B point) in order to control and measure analog quantity. The type and specs of MA model are as below: MA model type Type Function MA-8X8YR 8 channels digital input, 8 channels digital output MA-16X...
  • Page 41 Profile dimension 63mm×102mm×73.3mm MA-8AD-A/V Item Voltage Current DC0～5V、0～10V DC0～20mA、4～20mA Analog input range exterior load resistor ( exterior load resistor less than 2K ~1M ) 500 ) ±18V Maximum input range 0～40mA Digital output range 12 bits binary numbers Resolution 1/4095（12Bit） Integrated precision 0.8% Conversion speed...
  • Page 42 Digital input range 10 bits binary number (0~1023) Digital output range 12 bits binary number (0~4095) Resolution 1/4095(12Bit) 1/1023(10Bit) PID output value 0~K4095 Integrated precision 0.8% Conversion speed 20ms/1 channel 3ms/1 channel Power supply for DC24V±10%，100mA analog quantity Installation Use M3 screw or fix on the DIN46277 ( width 35mm ) rail Profile dimension 63mm×102mm×73.3mm MA-6TC-P...

  • Page 43: Other Extension

    MA model connection XP/XMP can connect with MA model via RS-485 com port (A and B point). It can extend 16 MA models via setting DIP switch of MA model. Please see the connection figure: V O 2 V O 1 G N D V O 1 V O 2...
