Installation, Operation
and Maintenance Manual

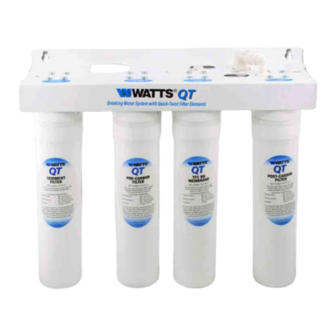

Quick-Twist Reverse Osmosis System
Model WQT4RO11-50
!
WARNING
Please read carefully before proceeding with
installation. Your failure to follow any attached
instructions or operating parameters may lead to the
product's failure.
Keep this Manual for future reference.
WARNING
!
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system.
IMPORTANT
If you are unsure about installing your WATTS
a WATTS representative or consult a professional plumber.
!
CAUTION
Test the water periodically to verify that the system is performing
satisfactorily. Discard small parts remaining after the installation.
NOTICE
Failure to install the system correctly voids the warranty.
Handle all components of the system with care. Do not drop,
drag or turn components upside down.
Be sure the floor under the water filter system is clean, level
and strong enough to support the unit.
®
water filter, contact
IOM-WQT4RO11-50 WP299327
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Watts WQT4RO11-50
Summary of Contents for Watts WQT4RO11-50
- Page 1 Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. IMPORTANT If you are unsure about installing your WATTS ® water filter, contact a WATTS representative or consult a professional plumber.
- Page 2 Thank you for your purchase of a state of the art Watts Reverse Osmosis (RO) water treatment system. Water quality concerns are becoming more of a focus for the public. This Watts water treatment system has been designed and tested to provide you with high quality water for years to come.
-
Page 3: Table Of Contents
Table of Contents Operational Parameters ........................4 Contents of Reverse Osmosis System .................... 4 Installation & Startup Tools Recommended For Installation ....................4 Parts Diagram ..........................5 Drill a Hole for the Reverse Osmosis Faucet .................. 6 How to use Quick Connect Fittings on Your RO System ..............6 Mount the Reverse Osmosis Faucet .................... -
Page 4: Operational Parameters
1 Module 1 Parts Bag 4 Filters 1 Manual If any of the items are missing please contact Watts prior to installing. INSTALLATION & STARTUP INSTALLATION & STARTUP Tools Recommended For Installation √ 1 1/4" Diamond Tipped Hole Saw bit for faucet opening (Counter Tops/Porcelain & Stainless Sinks) √... -
Page 5: Parts Diagram
Parts Diagram 3/8” BLACK TUBE ASOV PERMEATE 3/8” DRAIN SADDLE KITCHEN FLOW RESTRICTOR SINK (IN DRAIN ELBOW) BRINE AIRGAP FAUCET OPTION (FAUCET SOLD SEPARATELY) ADAPT FILTER FILTER R.O. FILTER FAUCET 1/4” BLACK TUBE FILTER VALVE 3/8” BLUE TUBE COLD-WATER SHUT-OFF VALVE 3/8”... -
Page 6: Drill A Hole For The Reverse Osmosis Faucet
(If you are already using it for a sprayer or soap dispenser, see step 1) Porcelain sinks are extremely hard and can crack or chip easily. Use extreme caution when drilling. Watts accepts no responsibility for damage resulting from the installation of faucet. Diamond tip bit recommended. -
Page 7: Mount The Reverse Osmosis Faucet
Mount the Reverse Osmosis Faucet Refer to installation instructions found on faucet box. If installing an Air-Gap faucet, connect tubes to the faucet prior to mounting: 1/4” Red Tube - Air Gap Feed - Off Center Fitting 3/8” Black Tube - Air Gap Drain - Off Center Fitting 3/8”... -
Page 8: Drain Saddle Installation
Drain Saddle Installation - Fits standard 1 ¼” – 1 ½” drain pipes Caution: Do not install this drain saddle near a garbage disposal. It must be above the disposal or above the crossbar on a second sink drain. Installing the drain saddle near a garbage disposal may cause it to clog. -
Page 9: Faucet Tube Connection - Ro Water
( B ) 3/8” Tube Fitting Drain Saddle Step 13B-1 Locate the red 1/4” drain tube attached to the RO faucet. Connect the open end of tube to the quick connect fitting on the top of the RO Module labeled “Drain” making sure the tube is pushed in all the way to the tube stop. -
Page 10: Black Tube Connection - Inlet
Black 1/4” Tube Connection - Inlet Water In the parts bag, locate the 1/4” black tube. Connect the tube to Step 15 the quick connect fitting on the left side of the RO Module labeled “In” making sure the tube is pushed in all the way to the tube stop. Step 16 Insert the other open end of the black 1/4”... -
Page 11: Yellow Tube Connection - Ro Module To Storage Tank
Yellow Tube Connection - RO Module to Storage Tank Step 21 In the parts bag, locate the 3/8” yellow tube. Find the connection elbow labeled “Tank”, then connect the tube to the elbow from beneath the metal bracket. Make sure the tube is pushed in all the way to the tube stop. -
Page 12: Start Up Instructions
Congratulations! You have completed the installation of your new Reverse Osmosis system. Please Follow the Startup Instructions. Start up Instructions Turn on the incoming cold water at the angle stop valve and the Step 1 Adapt-a-Valve. Check the system for leaks and tighten any fittings as necessary. -
Page 13: Maintenance & Troubleshooting Changing The Filter Cartridges
This reverse osmosis system contains a replaceable component (the RO membrane) which is critical to the ef- ficiency of the system. Replacement of this reverse osmosis membrane should be with one of identical speci- fications as defined by Watts Premier to assure the same efficiency and contaminant reduction performance. Membrane Replacement (2 - 5 Years) Replace: √... -
Page 14: Annual Sanitization
Annual Sanitization Note: Sanitization procedure must be performed before a filter change. Step 1 Turn off the water supply to your RO system at the adapt-a-valve and open the RO faucet to drain the storage tank. Step 2 Disconnect the yellow tube from the ball valve on the storage tank (see page 6 for quick connect fitting use instructions). -
Page 15: Drain Line Flow Restrictor Maintenance
Drain Line Flow Restrictor Maintenance Please refer to parts list diagram on page 5 (Item 14) for flow restrictor location. Step 1 Turn off the incoming water supply at the adapta valve. Step 2 Remove the red tubing from the quick connect fitting. Step 3 Remove the fitting from the back of the RO unit. -
Page 16: Troubleshooting
TROUBLE SHOOTING Problem Cause Solution 1. Low/Slow Production Low Water Pressure Ensure a minimum of 40 psi incoming water pressure. Premier sells a booster pump if home water pressure is low. Make sure water supply is turned on and feed water valve is all the way open. -
Page 17: Service Record
SERVICE RECORD & WARRANTY INFORMATION SERVICE RECORD & WARRANTY INFORMATION Service Record Serial No. _____________________ Date of Purchase:__________ Date of Install:___________ Installed by:__________________ 3rd stage 2nd stage 4th stage 1st stage Date Membrane Carbon Carbon Sediment (2-5 years) (6 months) (1 year) (6 months) NOTES:... -
Page 18: Limited Warranty
How to obtain Warranty Service: Contact the dealer that you purchased the system from. Watts will work in conjunction with our dealer to repair or replace at our discretion any unit that is determined to be defec- tive.
