Installation, Operation
and Maintenance Manual

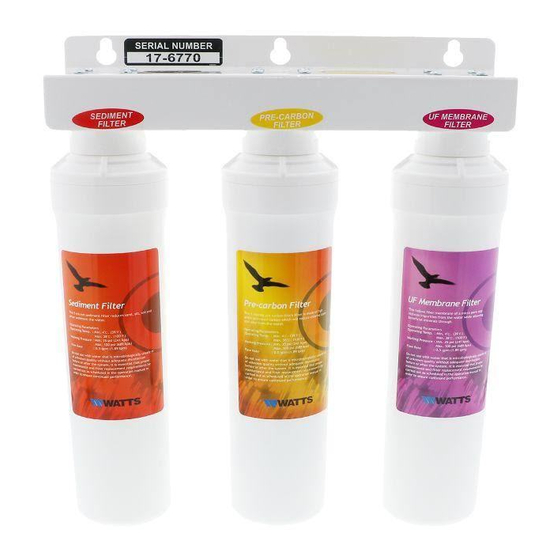

Under Counter Quick-Change (QC)
Drinking Water System
Model: WQCFU-T-11KIT
! WARNING
Please read carefully before proceeding with
installation. Your failure to follow any attached
instructions or operating parameters may lead to the
product's failure.
Keep this Manual for future reference.
WARNING
!
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system.
IMPORTANT
If you are unsure about installing your WATTS water filter, contact
a WATTS representative or consult a professional plumber.
CAUTION
!
Test the water periodically to verify that the system is performing
satisfactorily. Discard small parts remaining after the installation.
NOTICE
Failure to install the system correctly voids the warranty.
Handle all components of the system with care. Do not drop,
drag or turn components upside down.
Be sure the floor under the water filter system is clean, level
and strong enough to support the unit.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Service Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operation Paramaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Drill/Punch a Hole for the Faucet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
How to use the Quick-Connect fittings . . . . . . . . . . . . . . . . . . . . . . . 4
Faucet Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Adapt-A-Valve Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cold Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
UF Drinking SYstem Module Mounting . . . . . . . . . . . . . . . . . . . . . . . 5
System Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6-Month System Maintennce . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
IOM-WQ-WQCFU-T-11KIT
PWRO4
