Summary of Contents for Wellell SLK Carry 185 Eco

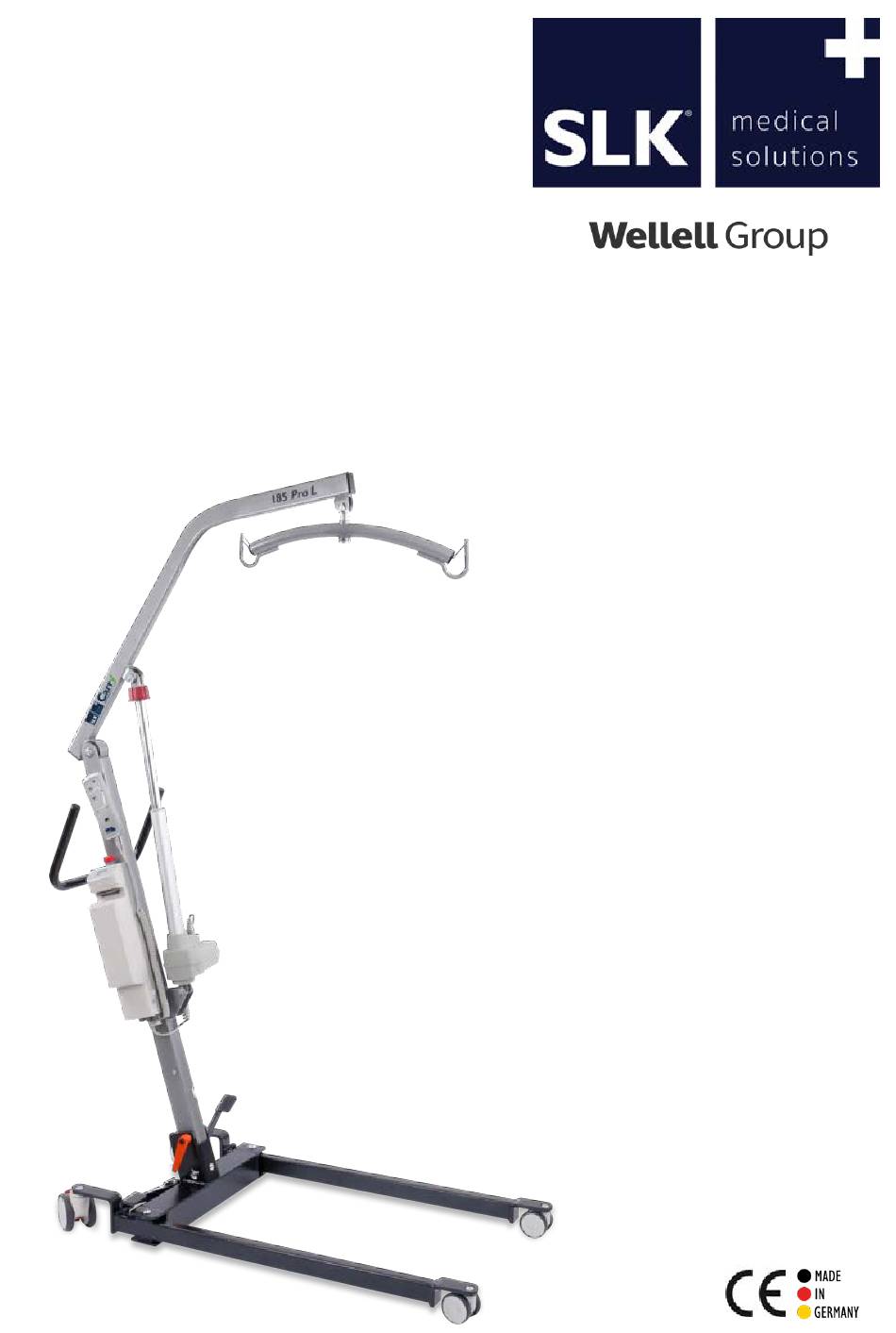

- Page 1 User Guide SLK Carry Product Family Basic UDI-DI 426064753PL02000014B SLK Carry 185 Eco SLK Carry 185 Classic SLK Carry 185 Classic e SLK Carry 185 Pro SLK Carry 185 Pro e SLK Carry 185 Pro L SLK Carry 185 Pro L e...
-
Page 2: Table Of Contents
Table of Contents Welcome General Information SLK Carry Models in Comparison SLK Carry Product Family Intended Use and Reuse Indication Contraindication Use in the Wet Area Used Materials Safety Information Overview Type Label Information Hoist Slings Accessories Scope of Delivery Assembly of the SLK Carry Unpacking Bolts with SL Clips... - Page 3 Control Box Control Box Type I Control Box Type II Lifting Arm Operation by Handcontrol Type I Operation by Handcontrol Type II Operation by Control Box Type I Operation by Control Box Type II Base Expansion Manually by Pedal Electrically by Handcontrol Type I Electrically by Handcontrol Type II Electrically by Control Box Type I Electrically by Control Box Type II...
- Page 4 Conformity Applicable Standards Electromagnetic Compatibility (EMC) Warranty/Guarantee Useful Life Disposal Article IDs of Spare Parts Notes Contact Details...
-
Page 5: Welcome
Welcome Thank you very much for deciding to purchase a product of the company SLK. It has been developed with care by experts and tested and manu- factured in accordance with the applicable guidelines and standards. The company SLK uses more than 80 percent green electricity generated on site exclusively from solar energy for prodution, chemothermal conditioning, service and the remaining energy consumption. -
Page 6: Slk Carry Models In Comparison
SLK Carry Models in Comparison Model 185 Eco 185 Classic 185 Classic e 185 Pro 185 Pro e 185 Pro L 185 Pro L e Compact Article ID 8000 8002 8003 8004 8005 8006 8007 8014 185 kg 185 kg 185 kg 185 kg 185 kg... -
Page 7: Slk Carry Product Family
SLK Carry Product Family This user guide applies to the following patient hoists of the SLK Carry Product Family: SLK Carry 185 Eco Article ID 8000 SLK Carry 185 Classic Article ID 8002 SLK Carry 185 Classic e Article ID... -
Page 8: Intended Use And Reuse
Intended Use and Reuse The patient hoists of the SLK Carry Product Family are active medical devices of class 1 according to the Medical Devices Regulation (EU) 2017/745 (MDR). The purpose of these hoists is providing support to the nurse when changing positions, lifting, transferring and during transports of patients with restricted mobility inside of their residence. -
Page 9: Use In The Wet Area
Use in the Wet Area The SLK Carry Patient Hoists are suitable for use in wet areas, e.g. the toilet and the bathroom. The hoists are not suitable for use in the shower. Used Materials The structure is made of steel with a high-quality powder coating for corrosion protection. - Page 10 Safety Information • Before every application of the SLK Carry, check its readiness for use by means of the “Daily Use Checklist”. (Page 30) In case of any irregularities, do not use the hoist and immediately contact your specialized dealer. •...
- Page 11 Safety Information • Never leave the patient unattended during the use. There is a risk of accident. • If you pick up a patient from the floor, pay particular attention that none of the loops of the hoist sling are entangled under a hoist foot.
-
Page 12: Overview

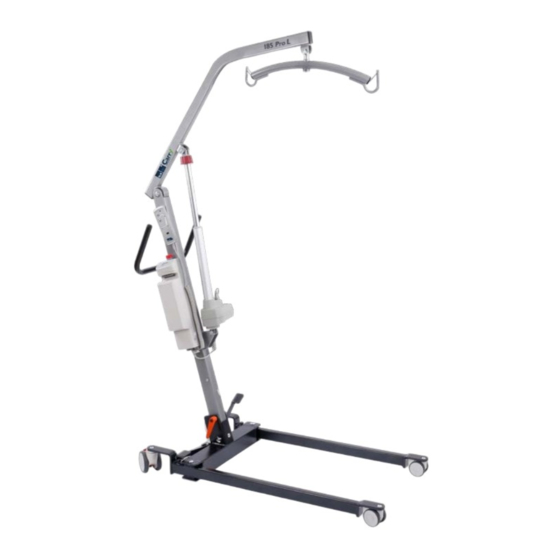

Overview SLK Carry Shown are the SLK Carry 185 Pro models (picture at the top) and Pro e (picture at the bottom). Color and optics of other models might differ slightly. Central Suspension Point 2-Point Spreader Bar with Type Label Lifting Arm Hook Recess with Spring Lock... -
Page 13: Type Label Information
Type Label Information The Manufacturer is SLK Vertriebsgesellschaft mbH. Date of Manufacture (e.g.: 06/2020) Serial Number (e.g.: 8002U12345) 4-digit article ID, letter, 5-digit unique number for identification and traceability. Medical Device with European Declaration of Conformity Use only indoors. Protection type: Double Protective Insulation IP = Ingress Protection DIN EN 60539 IP 24 Ingress Protection against Solid Objects Level 2... -
Page 14: Hoist Slings
Hoist Slings The following SLK hoist slings are provided on the SLK Carry Patient Hoists: • SLK Universal Sling Eco (size M/L) • SLK Universal Sling (sizes XXS to 4XL) • SLK Universal Sling with Headrest (sizes XXS to XXL) •... -
Page 15: Accessories
Accessories The SLK Carry Patient Hoists are delivered by standard including one SLK 2-point spreader bar. The following accessories can be used optionally: • 8-Point Spreader Bar 185 Article ID 8062 • 4-Point Spreader Bar X Article ID 8060 • 4-Point Spreader Bar H Article ID 8064 •... -
Page 16: Scope Of Delivery
Scope of Delivery SLK Carry • Mast with Lifting Arm, Drive System and Handcontrol • Battery Pack • Base • 2-Point Spreader Bar • Pusher Bar, 4 Screws and Allen Key • Charger • User Guide • Check Slip... -
Page 17: Assembly Of The Slk Carry
Assembly Unpacking The SLK Carry 185 Classic / Classic e / Pro / Pro e / Pro L / Pro L e and SLK Carry Compact Patient Hoists can be fully assembled without additional tools. • Open the box and, if possible, hold on to it in case you want to put the product into storage. -
Page 18: Installation Of The Mast
• Slide the SL clip with bent tab out of the groove. (Fig. 5) • The bolt can now be removed. Assembly Installation of the Mast Information on bolts with SL clips: at the top. • Remove the M 12 screw with the orange clamp lever and the 12 mm bolt with SL clips from the mast shoe (Fig. -
Page 19: Installation Of The Pusher Bar
Screw the handle firmly onto the mast with the four screws, using the Allen key that is part of the delivery. (Fig. 11) *Only one height is provided for the SLK Carry 185 Eco / Classic / Classic e and SLK Carry Compact models. Assembly Installation of the Spreader Bar Information on bolts with SL clips: Page 17. -
Page 20: Installation Of The Actuator
Assembly Installation of the Hoist Actuator Information on bolts with SL clips: Page 17. Emergency-stop button • Swivel the lifting arm up and place it onto the shoulder. (Fig. 13) • Remove the actuator and the SL clip of the 10-mm bolt from the upper end of the thrust rod. -
Page 21: Folding The Slk Carry
Folding the SLK Carry The SLK Carry Patient Hoists can be folded up without tools. This makes it easy to push the hoist including spreader bar, and it saves space when you lean it on a wall. (Fig. 60, page 38) •... -
Page 22: Use
Application Charge Battery Pack Charge battery pack Charge the battery pack fully before first use. • charge battery pack, emergency-stop button must be re- leased. (Page 25) When the emergency-stop button is pressed down, the charging operation will not work. •... -
Page 23: Emergency-Stop Button
To extract the battery pack, proceed as follows: • Put your hand into the recessed grip and press the unlocking button up. (Fig. 23) • Pull the battery pack towards you. Emergency-Stop Button Using the emergency-stop button, the lifting or lowering movements of the SLK Carry Hoist can be stopped instantly if there is danger. -
Page 24: Brakes
The handcontrol can be fastened on the backside on all steel parts of the hoist by means of an integrated magnet. The handcontrol of the SLK Carry 185 Eco is equipped with a hook. - Page 25 Handcontrol Type I Overload Symbol: Safe working load exceeded Button A: Lifting arm moves up Button B: Lifting arm moves down Button C: Base is expanded Button D: Base is narrowed Wake-up Control Box: Press any optional button once. Function starts when you press the second time. Maintenance Symbol Charging Status Symbol Handcontrol...
-
Page 26: Control Box Type
Control Box The SLK Carry Patient Hoists can also be operated by tapping on the control box. Your hoist is equipped with a control box type I (Fig. 30) or type II (Fig. 31). Compare the figures to your hoist to find the matching instruction. -
Page 27: Lifting Arm
Lifting Arm To move the lifting arm on your SLK Carry Patient Hoist, you can use either the handcontrol or the control box. Operation by Handcontrol Type I • Press any optional button (A, B, C or D) to wake up the control box. (Page 25, at the top) •... -
Page 28: Base Expansion
Base Expansion To improve stability and simplify access to wheelchairs and other seats, the bases of the SLK Carry Patient Hoists are equipped with feet that can be expanded by means of a pedal or electric drive depending on the model. Manually by Pedal Expand base •... -
Page 29: Charging Status Symbol
Electrically by Control Box Type II Select the desired function by pressing button A or B quickly (< 0.5 sec.) (Fig. 33) • Press and hold down button A to expand the base. (Fig. 44) • Press and hold down button B to retract the base. -
Page 30: Daily Use Checklist
Daily Use Checklist A visual inspection should be done before each use. To do so, work off the points on the checklist one by one. If you practice this procedure routinely, your attention to discrepancies from the normal state will be sharpened. You can assure yourself of the safe condition of the SLK Patient Hoist before each use in a minimum of time. - Page 31 Use the patient hoist only if all points are ok. In case of deviations or uncertainty, please contact your authorized dealer. 12 Pivot Point of the Spreader Bar 11 Pivot Point Lifting Arm 13 Hook Recess with Spring Lock 10 Emergency- Stop Button 9 Battery Pack 8 Actuator...
-
Page 32: Patient Transport Lifting A Patient In Seated Position
Patient Transport Lifting a Patient in Seated Position • Lock the brakes of the wheelchair; keep the brakes of the expanded patient hoist released. • Put the hoist sling (e.g. SLK Universal Hoist Sling) deeply between the back- rest and the patient. If possible, the pa- tient should bend forward in the process. -
Page 33: Lifting Patients In Supine Position
• Notice the user guide of the hoist sling that is used. • Align the hoist sling in the manner so that all loops stay hooked in during the lifting and tension roughly simultaneously. Patient Transport Lifting a Patient in Supine Position It is possible with the SLK Patient Hoists to lift patients in supine position from their bed or the floor and to lower them to floor level. -
Page 34: 4-Point Spreader Bar
Then hook in the upper body loops of the hoist sling straight as well into the hooks. (Fig. 54) 4-Point Spreader Bar Here, the upper body loops are hooked in straight into the hooks on a long side of the spreader bar. -
Page 35: Troubleshooting
• In doing so, please observe the safety information on pages 9 - 11. • The patient is lowered in the reverse order as lifting and it can be done down to floor level. Troubleshooting Fault Description Cause Remedy Emergency-stop button Turn emergency-stop- Hoist does not lift/lower is activated... -
Page 36: Transport
They can then be carried relatively easily. The SLK Carry Patient Hoists can be disassembled without tools (for the SLK Carry 185 Eco you need a 19 mm wrench) into the following assembly groups/components: (Page 16, Fig. 1) •... -
Page 37: Technical Data/Dimensions
Technical Data/Dimensions SLK Carry Compact Classic Classic e Pro e Pro L Pro L e Length 118 cm 118 cm 118 cm 115 cm 115 cm 115 cm 115 cm 103 cm Width 61 cm 61 cm 61 cm 64 cm 64 cm 64 cm 64 cm... -
Page 38: Cleaning
Cleaning Use a damp cloth to clean your SLK Carry with a mild cleaning agent such as a household cleaner. The charger must be unplugged from the socket for cleaning and disinfection! For wiping disinfection, use approved cleaning agents for medical de- vices. -
Page 39: Maintenance
For this, the hoist must be retrofitted to its condition as delivered (page 16). Please notice the storage conditions. (Page 36) Maintenance The useful life and safe use of the SLK Carry Patient Hoists de- pend quite essentially on the regular performance of maintenance. Defects or signs of wear can be detected and repaired in the course of the maintenance service. -
Page 40: Maintenance Plan
Please use the current maintenance plan from the SLK web- site www.slk-gmbh.de (download area) for documentation. Maintenance Plan SLK Carry Product Family SLK Carry 185 Eco SLK Carry 185 Pro e SLK Carry 185 Classic SLK Carry 185 Pro L SLK Vertriebsgesellschaft mbH... - Page 41 Repaired POS. Object Remarks Electrical system All cables undamaged and connected Emergency-stop button present and functional (no function while emergency-stop button is pressed, reactivation only by turning) Charger is present and undamaged, orange control lamp during charging Charging function available No lift function during charging Tipping operation of the handcontrol works (releasing the handcontrol stops the lift operation)
-
Page 42: Conformity
Conformity The Universal Hoists SLK Carry 185 Eco SLK Carry 185 Classic / Classic e SLK Carry 185 Pro / Pro e SLK Carry 185 Pro L / Pro L e SLK Carry Compact are active medical devices of class 1 according to the Medical Devices Regulation (EU) 2017/745. -
Page 43: Useful Life
Useful Life The useful life of the SLK Carry Universal Hoist is 11,000 lifting cycles in accordance with the standard. The maximum lifespan is 8 years. Calculation example: If a SLK Carry is used for a patient, who requires four lifting cycles per day, each day of the year for care, then the 11,000 lifting cycles will be used up after around seven and a half years. -
Page 44: Article Ids Of Spare Parts
Article IDs of the Spare Parts SLK Carry User guide (EN) 8304 8304 8304 8304 8304 8304 8304 8304 Gebrauchsanweisung (DE) 8300 8300 8300 8300 8300 8300 8300 8300 Mode d'emploi (FR) 8289 8289 8289 8289 8289 8289 8289 8289 Gebruiksaanwijzing (NL) 8290 8290... - Page 45 Article IDs of the Spare Parts SLK Carry Spare Part*¹ Drawing Spreader Rod 8692 8692 8692 8692 8692 8692 8692 8691 Caster, front 8694 8695 8695 8696 8696 8696 8696 8693 Caster, rear 8698 8699 8699 8700 8700 8700 8700 8697 (Abmaße Halbzeug) SLK Vertriebs GmbH Längen- und Winkelmaße 0,5 bis 30 mm DIN2768-1 mittel >30 bis 2000 mm DIN2768-1 fein...
- Page 46 Article IDs of the Spare Parts SLK Carry Spare Part*¹ Drawing Drive Components Type II*³ Handcontrol 8446 8445 8539 8445 8439 8445 8439 8445 (Abmaße Halbzeug) SLK Vertriebs GmbH Handcontrol Längen- und Winkelmaße 0,5 bis 30 mm DIN2768-1 mittel >30 bis 2000 mm DIN2768-1 fein Allgemeintoleranzen bei Bauteilflächen mit Passungsbohrungen / Längen- und Winkelmaße (Externe Fertigung) +/- 0,02 mm vom Nullpunkt...
-
Page 47: Notes
Notes... -
Page 48: Contact Details
SLK Vertriebsgesellschaft mbH Am Herdicksbach 18 D-45731 Waltrop Phone: +49 (0) 231 - 92 53 60 - 0 Fax: +49 (0) 231 - 92 53 60 - 29 E-mail: info@slk-gmbh.de Internet: www.slk-gmbh.de Version: 04/2023 - 8.12 Released by: Quality manager If you are an end consumer, please contact your supplier.
