- Page 1 User Guide SLK Eazy-up Product Family Basic UDI-DI 426064753AL0100001SY SLK Eazy-up fix SLK Eazy-up flex Original User Guide...
-
Page 2: Table Of Contents
Table of Contents Welcome General Information SLK Eazy-up Product Family Intended Use and Reuse Indication Contraindication Use in Wet Areas Used Materials Hoist Slings Hoist Sling Accessories Accessories Safety Information Overview Type Label Information Scope of Delivery Assembly of the SLK Eazy-up Unpacking Installation of the Mast Installation of the Pusher Bar... - Page 3 Operation by Control Box Type II Base Expansion SLK Eazy-up flex Charging Status Symbol Overload Symbol Maintenance Display Daily Use Checklist Patient Transport SLK Eazy-up fix without Base Expansion SLK Eazy-up flex with Base Expansion Lifting Transfer Lowering Troubleshooting Transport...
-
Page 4: Welcome
Welcome Thank you very much for deciding to purchase a product of the company SLK. It has been developed with care by experts, and tested and manu- factured in accordance with the applicable guidelines and standards. The company SLK uses more than 80 percent green electricity generated on site exclusively from solar energy for production, chemothermal conditioning, service and the remaining energy consumption. -
Page 5: Slk Eazy-Up Product Family

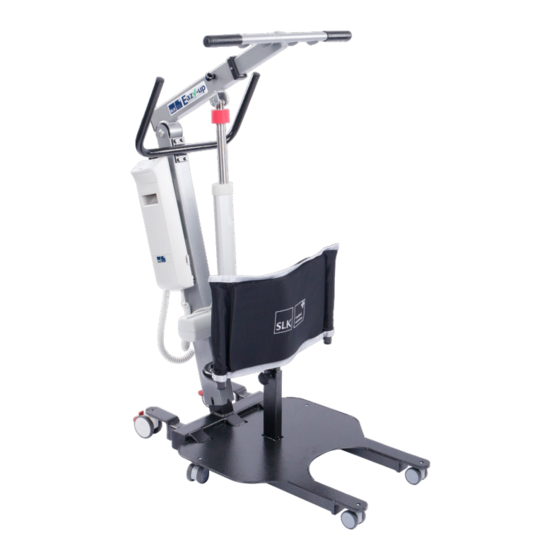

SLK Eazy-up Product Family This user guide applies to the following patient hoists of the SLK Eazy-up Product Family: SLK Eazy-up fix (fixed base) Article ID 8017 SLK Eazy-up flex (expandable base) Article ID 8016 Where information is given in this User Guide that applies to both models, it is referred to SLK Eazy-up in general terms. -
Page 6: Contraindication
Contraindication The application of active hoists lets forces work on the body of the patients, which cannot be tolerated by them in all clinical states (e.g. spinal damages, advanced osteoporosis, unhealed bone fractures). Before every application of the SLK Eazy-up, please contemplate the patient and their clinical state very closely. -
Page 7: Hoist Slings
Hoist Slings SLK hoist slings for SLK Eazy-up Active Hoists: • SLK Active Eco Sling (size M/L) • SLK Active Sling (sizes S to XXL) • SLK Active Sling (sizes S to L) • SLK Special Active Sling with Seat Swing (sizes S to XXL) Hoist Sling Accessories •... -
Page 8: Safety Information
Safety Information • The SLK Eazy-up hoists may be used exclusively for the purposes stated as the intended use.They are not approved for lifting objects and they are no toys. If this is disregarded, the hoist can be damaged and accidents may happen. Never leave children unattended near the hoist. - Page 9 Safety Information • Move the SLK Eazy-up slowly and evenly, at most at walking speed, and avoid sudden changes of direction. The hoist may overturn if you move it too fast. • Do not touch parts of the actuator while maneuvering the hoist. Improper loads can damage the actuator.
-
Page 10: Overview
Overview SLK Eazy-up Depending on the model and development stage, your SLK Eazy-up may slightly differ in color and look from the one in the figure below. Active Lifting Arm Ball Lock Pin with Type Label Lifting Arm Base Pusher Bar Mechanical Emergency Lowering Emergency-Stop Button... -
Page 11: Type Label Information
Type Label Information The manufacturer is SLK Vertriebsgesellschaft mbH. Date of manufacture (e.g.: 06/2020) Serial number (e.g.: 8002U12345) 4-digit article ID, letter, 5-digit unique number for identification and traceability. Medical Device with European Declaration of Conformity Use only indoors. Protection type: double protective insulation IP = Ingress Protection DIN EN 60539 IP 24 ingress protection against solid objects level 2... -
Page 12: Scope Of Delivery
Scope of Delivery SLK Eazy-up • Mast with Lifting Arm Base, Drive System and Handcontrol • Lifting Arm • Battery Pack • Base with Footboard • Shin supports • Pusher Bar, 4 Screws and Allen Key • Charger • User Guide •... -
Page 13: Installation Of The Mast
Assembly Installation of the Mast • Push the mast with its lower end onto the mast shoe of the base. The star-knob screws are pointed toward the footboard in the process. (Fig. 3) • The pins of the mast shoe are to interlock with the notches at the lower end of the Notches and pins mast. -
Page 14: Installation Of The Shin Support
Assembly Installation of the Shin Support • Loosen the star-knob screw and push the square tube of the shin supports into the recess. (Fig. 7) • Fasten them with the star-knob screw. The height of the shin support depends on the length of the patient’s legs. -
Page 15: Functions Test
Assembly of the SLK Eazy-up Functions Test • Unlock the emergency-stop button by turning it clockwise (page 31) to test the function of the SLK Eazy-up. • By pressing and holding down Button A on the handcontrol, move up once to the upper limit stop, and move down to the bottom lim- it switch by pressing and holding down Button B. -
Page 16: Use
Application Charge Battery Pack Charge battery pack Charge the battery pack fully before first use. • charge battery pack, emergency-stop button must be re- leased. (Page 17) When the emergency-stop button is pressed down, the charging operation will not work. •... -
Page 17: Emergency-Stop Button
To extract the battery pack, proceed as follows: • Put your hand into the recessed grip and press the unlocking button up. (Fig. 15) • Pull the battery pack towards you. Emergency-Stop Button Using the emergency-stop button, the lifting or lowering movements of the SLK Eazy-up Hoist can be stopped instantly if there is danger. -
Page 18: Brakes
Brakes The brakes of the SLK Eazy-up Patient Hoist Brakes are installed on the rear casters. Always use both brakes to brake the hoist. • Step from the top onto the brake pedal until it locks. (Fig. 18) Releasing the brakes •... - Page 19 Handcontrol Type I Overload Symbol: Safe working load exceeded Button A: Lifting arm moves up Button B: Lifting arm moves down Button C: Base is expanded Button D: Base is narrowed Wake-up Control Box: Press any optional button once. Function starts when you press the second time. Maintenance Symbol Charging Status Symbol Handcontrol...
-
Page 20: Control Box
Control Box The SLK Eazy-up Active Hoists can also be operated by tapping on the control box. Your lift is equipped with a control box type I (Fig. 22) or type II (Fig. 23). Compare the figures to your lift to find the matching instruction. -
Page 21: Lifting Arm
Lifting Arm To move the lifting arm on your SLK Eazy-up Active Hoist, you can use either the handcontrol or the control box. Operation by Handcontrol Type I • Press any optional button (A, B, C or D) to wake up the control box. (Page 19, at the top) •... -
Page 22: Base Expansion Slk Eazy-Up Flex
Eazy-up flex Base Expansion To improve stability and simplify access to Expand base wheelchairs and other seats, the SLK Eazy-up flex Active Hoists are equipped with a manually expandable base. • Step on the left side of the pedal in driving direction to expand the base. -
Page 23: Overload Symbol
Overload Symbol If the permissible safe working load (type label) is exceeded, the over- load symbol lights up. Immediately discontinue the lifting process and use a hoist with a higher safe working load. Maintenance Display If the maintenance display on the control box or handcontrol type I lights up, contact your specialized dealer immediately. -
Page 24: Daily Use Checklist
Daily Use Checklist A visual inspection should be done before each use. To do so, work off the points on the checklist one by one. If you practice this procedure routinely, your attention to discrepancies from the normal state will be sharpened. You can assure yourself of the safe condition of the SLK Active Hoist before each use in a minimum of time. - Page 25 12 Hoist Sling 11 Ball lock pin lifting arm 10 Pivot point lifting arm 9 Emergency-stop button 8 Battery pack 13 Star-knob screw Shin support 7 Actuator 6 Cable 5 Star-knob screw Mast 4 Mast shoe 3 Brake 2 Pivot point of foot 1 Caster...
-
Page 26: Patient Transport
Put the brakes of the wheelchair/toilet chair on; keep the brakes of the expanded SLK Eazy-up released. SLK Eazy-up fix without Base Expansion Put the SLK Eazy-up lifting arm into the lowest position and move the hoist as close as possible to the patient. If the patient is in a wheelchair, the footrests may have to be turned to the side or be removed. -
Page 27: Lifting
• Adjust the shin support so that the patient’s knees and upper shin are pro- tected. (Fig. 37) • Hook the loops of the active sling between the ends ofthe handle bar on the lifting arm. The loops with identical color should be hooked in on both sides. -
Page 28: Transfer
• End the raising process when the pa- tient has found stable and comfortable footing. (Fig. 42) Transfer • So you can also pass through doors or nar- row halls during a transfer, close the base of the Eazy-up flex again before the transfer. -
Page 29: Troubleshooting
Troubleshooting Fault description Cause Remedy Emergency-stop button Turn emergency-stop Hoist does not lift/lower is activated button clockwise Disconnect hoist Hoist does not lift/lower Charger connected from the charger Lock in battery pack Battery pack not inserted Hoist does not lift/lower correctly, charge with correctly or empty charger if needed... -
Page 30: Transport
Transport If the SLK Eazy-up is to be transported, press the emergency-stop button (page17). If the hoist cannot be transported in one piece to the place of use, you can disassemble it into individual low-weight assembly groups . They can then be carried relatively easily. The SLK Eazy-up Active Hoists can be disassembled without tools into the following assembly groups/components (page 12, Fig. -
Page 31: Technical Data
Technical Data SLK Eazy-up flex Length 99 cm 112 cm Width 58 cm 58 cm Total height 114 cm 115 cm Height of feet 6.6 cm 9 cm Caster diameter 5 / 7.5 cm 6.5 / 7.5 cm front/rear Lifting height 90 - 159 cm 90 - 159 cm Base expansion... -
Page 32: Dimensions Slk Eazy-Up Fix
Dimensions SLK Eazy-up fix 735 mm Max. height of the CSP 1586 mm Lifting area 689 mm 1010 mm Height 1140 mm Min. height of the CSP 897 mm 66 mm Ground clearance 440 mm Turning radius 900 mm 584 mm 988 mm (Abmaße Halbzeug) -
Page 33: Dimensions Slk Eazy-Up Flex
Dimensions SLK Eazy-up flex 866 mm Max. height of the CSP 1592 mm Lifting area 691 mm 1023 mm Height 1146 mm Min. height of the CSP 901 mm 72 mm Ground clearance 552 mm Turning radius 1140 mm 782 mm Base width 643 mm... -
Page 34: Cleaning
Cleaning Use a damp cloth to clean your SLK Multy with a mild cleaning agent such as a household cleaner. The charger must be unplugged from the socket for cleaning and disinfection! For wiping disinfection, use only approved cleaning agents. Three examples of generally suitable disinfectants recommended by the German authorities: •... -
Page 35: Maintenance
Maintenance The useful life and safe use of the SLK Eazy-up Active Hoists depend quite essentially on the regular performance of maintenance. Defects or signs of wear can be detected and repaired in the course of the main- tenance service. •... -
Page 36: Maintenance Plan
Please use the current maintenance plan from the SLK web- site www.slk-gmbh.de (download area) for documentation. Maintenance Plan SLK Eazy-up Product Family SLK Eazy-up fix SLK Eazy-up flex SLK Vertriebsgesellschaft mbH Am Herdicksbach 18 D-45731 Waltrop Telefon: +49 (0) 231 / 92 53 60 - 0 Internet: www.slk-gmbh.de... - Page 37 Repaired POS. Object Remarks Electrical system All cables undamaged and connected Emergency-stop button present and functional (no function while emergency-stop button is pressed, reactivation only by turning) Charger is present and undamaged, orange control lamp during charging Charging function available No lift function during charging Tipping operation of the handcontrol works (releasing the handcontrol stops the lift operation)
-
Page 38: Conformity
Conformity SLK Eazy-up fix and SLK Eazy-up flex are active medical devices of class 1 according to the Medical Devices Regulation (EU) 2017/745. The declaration of conformity was prepared pursuant to Section 2, Article 52 (7) and its full text can be requested by our customers at any time. -
Page 39: Useful Life
Useful Life The useful life of the SLK Eazy-up Active Hoist is 11,000 lifting cycles in accordance with the standard. Because the use of the Active Hoist can vary greatly in intensity, a statement as to the useful life in years is not very helpful and SLK therefore expressed it in reference to the number of lifting cycles. -
Page 40: Article Ids Of Spare Parts
Article IDs of Spare Parts SLK Eazy-up Spare Part*1 Drawing Eazy-up fix Eazy-up flex Hoist Components User Guide 8292 8292 (ENG) Gebrauchs- 8294 8294 anweisung (D) Base 8755 Foot, left 8758 (Abmaße Halbzeug) SLK Vertriebs GmbH Längen- und Winkelmaße 0,5 bis 30 mm DIN2768-1 mittel >30 bis 2000 mm DIN2768-1 fein Allgemeintoleranzen bei Bauteilflächen mit Passungsbohrungen / Längen- und Winkelmaße (Externe Fertigung) +/- 0,02 mm vom Nullpunkt... - Page 41 Article IDs of Spare Parts SLK Eazy-up Spare Part*1 Drawing Eazy-up fix Eazy-up flex Hoist Components Spreader Bar 8691 Caster, front 8764 8693 Caster, rear 8697 8697 (Abmaße Halbzeug) SLK Vertriebs GmbH (Externe Fertigung) Längen- und Winkelmaße 0,5 bis 30 mm DIN2768-1 mittel >30 bis 2000 mm DIN2768-1 fein Allgemeintoleranzen bei Bauteilflächen mit Passungsbohrungen / Längen- und Winkelmaße +/- 0,02 mm vom Nullpunkt Form- und Lagetoleranzen bis 30 mm DIN2768-2 Toleranzklasse K >...
-
Page 42: Notes
Article IDs of Spare Parts SLK Eazy-up Spare Part*1 Drawing Eazy-up fix Eazy-up flex Drive Components Type II*³ Charger 8450 8450 Battery Pack 8441 8441 (Abmaße Halbzeug) SLK Allgemeintoleranzen Längen- und Winkelmaße 0,5 bis 30 mm DIN2768-1 mittel >30 bis 2000 mm DIN2768-1 fein (Externe Fertigung) Allgemeintoleranzen bei Bauteilflächen mit Passungsbohrungen / Längen- und Winkelmaße +/- 0,02 mm vom Nullpunkt... -
Page 44: Contact Details
SLK Vertriebsgesellschaft mbH Am Herdicksbach 18 D-45731 Waltrop Phone: +49 (0) 231 - 92 53 60 - 0 Fax: +49 (0) 231 - 92 53 60 - 29 E-mail: info@slk-gmbh.de Internet: www.slk-gmbh.de Version: 2.4 Status: June 2022 Released by: QMB If you are an end consumer, please contact your supplier.
