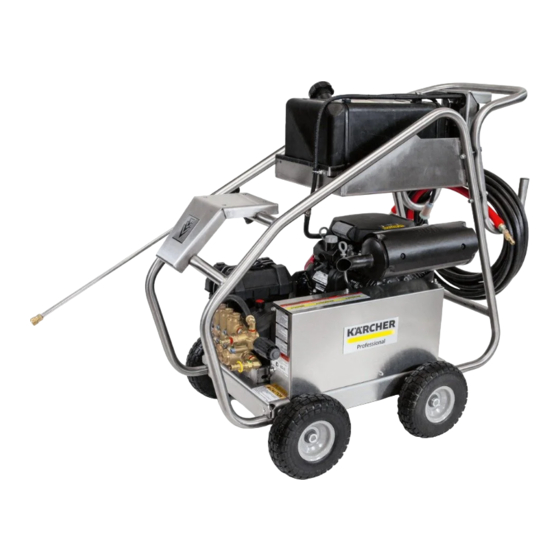

Kärcher HD 5/30 G Manual

Combustion engine - cold water
Hide thumbs Also See for HD 5/30 G:
Table of Contents

Advertisement

Quick Links

Download this manual
High Pressure Cleaner
Combustion engine - Cold Water
Register
your product
www.kaercher.com/welcome
English..... 3
Español....34
Français....67
9.808-130.0 - E (03/21)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD 5/30 G and is the answer not in the manual?

Questions and answers

Related Manuals for Kärcher HD 5/30 G

Summary of Contents for Kärcher HD 5/30 G

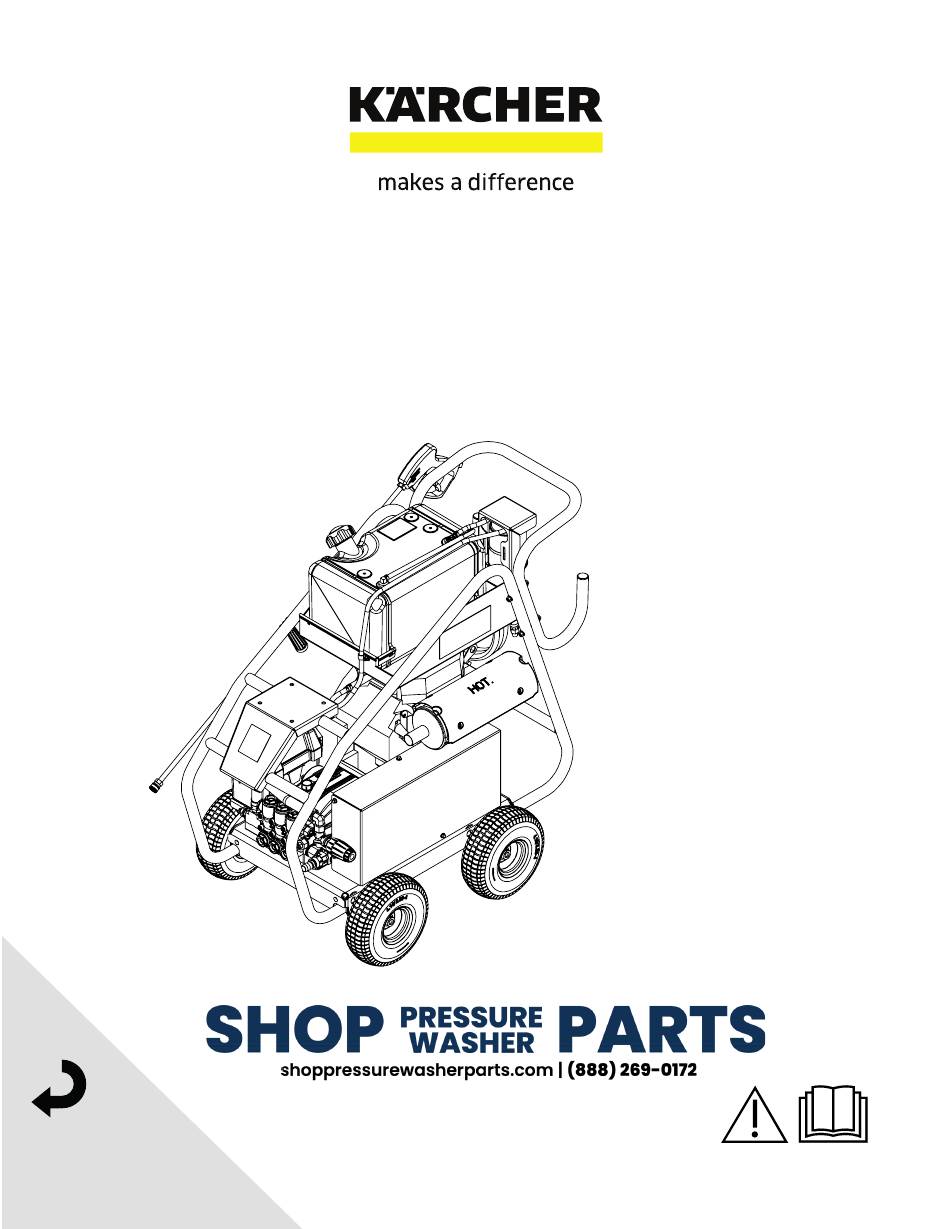

  • Page 1 English..3 High Pressure Cleaner Español..34 Combustion engine - Cold Water Français..67 Register your product 9.808-130.0 - E (03/21) www.kaercher.com/welcome...
  • Page 2 MODELS: 1.107-370.0 HD 5/30 G 1.107-371.0 HD 6/30 G 1.107-372.0 HD 8/35 G 1.107-373.0 HD 3.4/30 D...

  • Page 3: Table Of Contents

    Detergent and General Cleaning Techniques ........12 Shut Down and Clean-Up ..............13 Storage ....................13 Preventive Maintenance (Models: HD 5/30 G, HD 6/30 G, HD 8/35 G, HD 3.4/30 D ) ..............14 Troubleshooting (Models: HD 5/30 G, HD 6/30 G, HD 8/35 G, HD 3.4/30 D ) ............15 - 17...

  • Page 4: Important Safety Information

    INTRODUCTION & IMPORTANT SAFETY INFORMATION WARNING: Keep wand, hose, Thank you for purchasing this Pressure Washer. WARNING and water spray away from elec- We reserve the right to make changes at any time tric wiring or fatal electric shock without incurring any obligation. may result.
  • Page 5 IMPORTANT SAFETY INFORMATION WARNING: This product contains chemicals known 12. Never make adjustments on machine while in op- to the state of California to cause cancer and birth eration. defects or other reproductive harm. Operation of 13. Be certain all quick coupler fittings are secured this equipment may create sparks that can start before using pressure washer.
  • Page 6 IMPORTANT SAFETY INFORMATION 19. Do not allow acids, caustic or abrasive fluids to pass through the pump. WARNING: If connection is made to portable water supply, a back flow device must be pro- vided. IF CONNECTED TO A POTABLE WATER SUPPLY, PROTECT AGAINST BACKFLOW.

  • Page 7: Component Identification

    COMPONENT IDENTIFICATION Pressure Nozzle Straight Through Wand Spray Gun Detergent Bucket (not included) Trigger ENGINE Hose Unloader Detergent High Pressure Hose Detergent Pump Injector ON/OFF PUMP Pump — Develops high pressure. High Pressure Hose — Connect one end to water pump discharge nipple and the other end to spray gun.

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Spray Spray Pressure Gun/Wand Nozzle Safety Wand Wand Latch Coupler High Pressure Hose STEP 1: Attach the high pressure STEP 2: Attach wand to spray gun STEP 3: Pull spring-loaded collar hose to the spray gun using teflon using teflon tape on wand threads.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS Fuel Dipstick Tank STEP 1: Check engine oil level. Oil level should be level with the bottom STEP 2: Fill the fuel tank with the of the oil filler neck. Be sure the machine is level when checking the oil appropriate fuel (unleaded gasoline level.

  • Page 10: Installation

    OPERATING INSTRUCTIONS Safety Latch WARNING! Never replace WARNING! Starter cord kickback (rapid retraction) can result in nozzles without engaging the bodily injury. Kickback will pull hand and arm toward engine faster safety latch on the spray gun than you can let go. ALWAYS relieve spray gun pressure before trigger.

  • Page 11: Maintenance

    INSTALLATION If the pressure washer is to be used in an enclosed area, BEFORE STARTING a flue must be installed to vent engine exhaust to the outside atmosphere. Poor draft will cause the pressure Connect the water supply hose to the water inlet (stan- washer not operate properly.

  • Page 12: Detergent And General Cleaning Techniques

    DETERGENT AND GENERAL CLEANING TECHNIQUES WARNING: Some detergents THERMAL PUMP PROTECTION WARNING may be harmful if inhaled or ingested, causing severe nau- If you run the engine on your pressure washer for 1-2 sea, fainting or poisoning. The minutes without pressing the trigger on the spray gun, harmful elements may cause circulating water in the pump can reach high tempera- property damage or severe...

  • Page 13: Shut Down And Clean-Up

    SHUTTING DOWN AND CLEAN-UP On-Off Switch STEP 1: Remove detergent suc- STEP 2: Turn off the engine. STEP 3:Tur n off water tion tube from container and insert supply. into one gallon of fresh water. Slide nozzle forward for low pressure or to connect black detergent nozzle.

  • Page 14: Preventive Maintenance

    PREVENTATIVE MAINTENANCE For Models: HD 5/30 G, HD 6/30 G, HD 8/35 G, HD 3.4/30 D This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventa- tive maintenance procedures will assist in preserving the performance of your equipment.

  • Page 15: Troubleshooting (Models: Hd 5/30 G, Hd 6/30 G, Hd 8/35 G, Hd 3.4/30 D )

    TROUBLESHOOTING For Models: HD 5/30 G, HD 6/30 G, HD 8/35 G, HD 3.4/30 D PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Faulty pressure gauge Install new gauge. PRESSURE Insufficient water supply. Closed Use larger supply hose; clean filter at water faucet.
  • Page 16 TROUBLESHOOTING For Models: HD 5/30 G, HD 6/30 G, HD 8/35 G, HD 3.4/30 D PROBLEM POSSIBLE CAUSE SOLUTION ENGINE IS Nozzle partially blocked Clean nozzle. OVERLOADED Excessive pressure from high engine Adjust engine throttle to lower RPM. PRESENCE OF Water sprayed at machine Change oil.

  • Page 17: Oil Change Record

    TROUBLESHOOTING For Models: HD 5/30 G, HD 6/30 G, HD 8/35 G, HD 3.4/30 D PROBLEM POSSIBLE CAUSE SOLUTION SPRAY WAND Spray wand not properly attached Slide the spray wand into the gun. Turn the LEAKS wand collar clockwise onto the spray gun threads until tight.

  • Page 18: Spare Part List

    Hose, 1/2" X 50' 2W 5000PSI SW/SO/CPL (HD 8/35 G) 8.925-130.0 Hose, 3/8" X 50' 1W 4000PSI SW/SO/CPL (HD 3.4/30 D) 8.750-247.0 Gun, M407 (HD 5/30 G, HD 6/30 G) 8.710-384.0 Gun, ST-1500, 5000 PSI, 10.4 GPM (HD 8/35 G, HD 3.4/30 D) 8.783-040.0 Wand 44"...
  • Page 19 DESCRIPTION 9.802-170.0 Coupler, 3/8"plug, female, steel/zinc (all models) 9.802-216.0 Injector, Chem, 0.083 (HD 5/30 G, HD 3.4/30 D) 8.757-724.0 Injector Chem Non Adj 2.3 5-9GPM (HD 6/30 G, HD 8/35 G) 6.388-216.0 Hose DN 5 (HD 5/30 G, HD 3.4/30 D) 5.731-652.0...
  • Page 20 FRAME ASSEMBLY EXPLODED VIEW FRAME ASSEMBLY EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.928-612.0 Cage High Flow 8.928-607.0 Base High Flow 8.756-365.0 QH Wheel Assy 10",Gray STL RIM, Flat 8.919-422.0 Axle Short Base AL 24.5" Long 8.751-374.0 Spacer 5/8 X 1,25 Black 8.928-692.0 Wand Holder HF 9.197-003.0...
  • Page 21 EXPLODED VIEW - RIGHT SIDE ENGINE ( + ) ( + ) ENGINE ( - ) ( - ) REGULATOR ( INCLUDED IN ENGINE ) EXPLODED VIEW PARTS LIST - RIGHT SIDE ITEM PART NO. DESCRIPTION 8.750-498.0 Muffler, Honda, GX630/GX660, Left (Except model HD 3.4/30D) 9.198-004.0 3/8 USS F/W Zinc 8.928-620.0...
  • Page 22 EXPLODED VIEW PARTS LIST - RIGHT SIDE ITEM PART NO. DESCRIPTION 8.706-652.0 Battery Box, Small 9.802-203.0 Clamp,1/2" RO-CLIP,KLEINHUIS P/N 796/1 9.802-771.0 Screw, 10/32" X 3/4", BH SOC CS 9.804-567.0 *Nut, 10/32', ESNA 8.711-785.0 Hose, 3/8" Push ON, Per FT 10¼" 9.802-141.0 Hose Barb, 1/4' Barb X 3/8' Barb, DOU 9.802-071.0...
  • Page 23 Bushing, P2 X 1-1/8 (HD 8/35 G) 9.802-399.0 Bushing, H X 1 (HD 5/30 G,HD 6/30 G and HD 3.4/30D) 9.802-403.0 Bushing, H X 25MM (HD 5/30 G, HD 6/30 G and HD 8/35 G) 9.198-004.0 3/8 USS F/W Zinc 8.929-108.0 Guard Rivnut 8.929-110.0...
  • Page 24 DESCRIPTION 9.802-754.0 Screw, 1/4" x 1/2" NC, Whiz LOC Flange 9.802-420.0 Belt, BX 43 (HD 8/35 G) 9.802-420.0 Belt, BX 43 (HD 5/30 G and HD 6/30 G) 8.715-702.0 Belt, BX 41 (HD 3.4/30 D) 8.932-993.0 Cushion, Pump (Thin) 8.932-993.0 Cushion, Pump (Thin) (HD 3.4/30 D)
  • Page 25 FUEL TANK AND HANDLE EXPLODED VIEW Manual Operator High Flow 9.808-130.0...
  • Page 26 FUEL TANK AND HANDLE EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.752-915.0 Tank, 7.25 GAL, Low-Perm 9.802-512.0 Cable, Tie, 48" 9.802-053.0 Bushing, Fuel Line, Rubber 9.803-531.0 Diptube Assy, Plastic, 10.00" Long 8.751-215.0 Grommet, Remote Vent,Kelch 9.802-254.0 Hose, 1/4" Push-On, /FT (except model HD 3.4/30 D) 5 1/2"...
  • Page 27 (HD 5/30 G, HD 6/30 G and HD 8/35 G) 8.932-960.0 Label, Diesel, Black On Yellow (HD 3.4/30 G) 8.932-967.0 Label, Nozzle, 0, 15, 25, 40, & Soap (HD 5/30 G, HD 6/30 G and HD 3.4/30D ) 8.757-476.0 Nozzle Label Black (HD 8/35 G) 5.385-513.0 Label logo glued XL Professional 9.800-006.0...
  • Page 28 PUMP ASSEMBLY EXPLODED VIEW MODELS: HD 5/30 G, HD 6/30 G, HD 3.4/30 D PUMP ASSEMBLY EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.753-535.0 Pump, Leuco LT6036R, 6.0@3600, 1450 RPM (Models HD 5/30G, HD 6/30G) 8.750-755.0 Pump, LM3540R.3, 3.5@ 4000 1850RPM (Model HD 3.4/30D) 8.750-299.0...
  • Page 29 PUMP ASSEMBLY EXPLODED VIEW MODEL: HD 8/35 G PUMP ASSEMBLY MODEL: HD 8/35 G PARTS LIST ITEM PART NO. DESCRIPTION 8.752-809.0 Pump, Leuco 8043R, 8@4350 1740RPM (Models HD 8/35 G) 8.750-299.0 Unloader, VRT3, 8 GPM @4500 PSI 9.802-259.0 Hose, 1/2" Push-On, /FT 12"...
  • Page 30 LT6036R PUMP EXPLODED VIEW 8.928-631.0 KT6036R.2 Right TORQUE SPECS Item # Ft.-Lbs. LT6036R PUMP PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.752-825.0 Crankcase See Kit Below Valve Seat See Kit Below Plunger Oil Seal See Kit Below Valve Plate See Kit Below O-Ring Ø1.78 x 37.82 See Kit Below Valve Spring See Kit Below "Pressure Ring, Brass...
  • Page 31 LT6036R PUMP PARTS LIST ITEM PART NO. DESCRIPTION 36* 8.753-819.0 Plunger 18mm 37* 8.752-823.0 Copper Spacer See Kit Below Plunger Rod 8.752-822.0 Connecting Rod Pin 8.752-821.0 Connecting Rod 9.802-889.0 Spring Washer 9.802-937.0 Connecting Rod Screw 9.803-194.0 O-Ring Ø2.62 x 152.07 8.752-826.0 Crankcase Cover 9.803-906.0...
  • Page 32 HX8043R PUMP EXPLODED VIEW 8.928-644.0 KX8043R.2 Right XLT3020S XLT3816S XLT1830 TORQUE SPECS XLT2230 XLT2530 ITEM # FT. LBS. XLT2520 XLT2730 XLT3025 XLT3020 XLT3325 XLT3517 XLT4017 XLT4014 XLT4317 XLT5015 XLT5415 HAWK Pompe XLT serie 2011 HX8043R PUMP PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO.
  • Page 33 HX8043R PUMP PARTS LIST ITEM PART NO. DESCRIPTION 8.752-820.0 Bonded Seal 8.752-846.0 Plunger, 20mm (5843, 8043) 8.752-847.0 Plunger, 22mm (9539, 1036) 8.752-823.0 Copper Spacer 8.752-842.0 Plunger Rod 8.752-822.0 Connecting Rod Pin 8.752-821.0 Connecting Rod 9.802-889.0 Spring Washer 9.802-937.0 Connecting Rod Screw 9.803-194.0 O-Ring Ø2.62 x 152.07 8.752-826.0...
  • Page 34 THANK YOU! DANKE! MERCI! GRACIAS! Register your product and benefit from many advantages. Enregistrez votre produit et bénéficiez de nombreux avantages. Registre su producto y aproveche de muchas ventajas. Registrieren Sie Ihr Prudukt und Sie von vielen Vorteilen. www.kaercher.com/welcome Rate your product and tell us your opinion. Évaluez votre produit et donnez-nous votre opinion.

This manual is also suitable for:

Hd 6/30 gHd 8/35 gHd 3.4/30 d1.107-370.01.107-371.01.107-372.0 ... Show all
