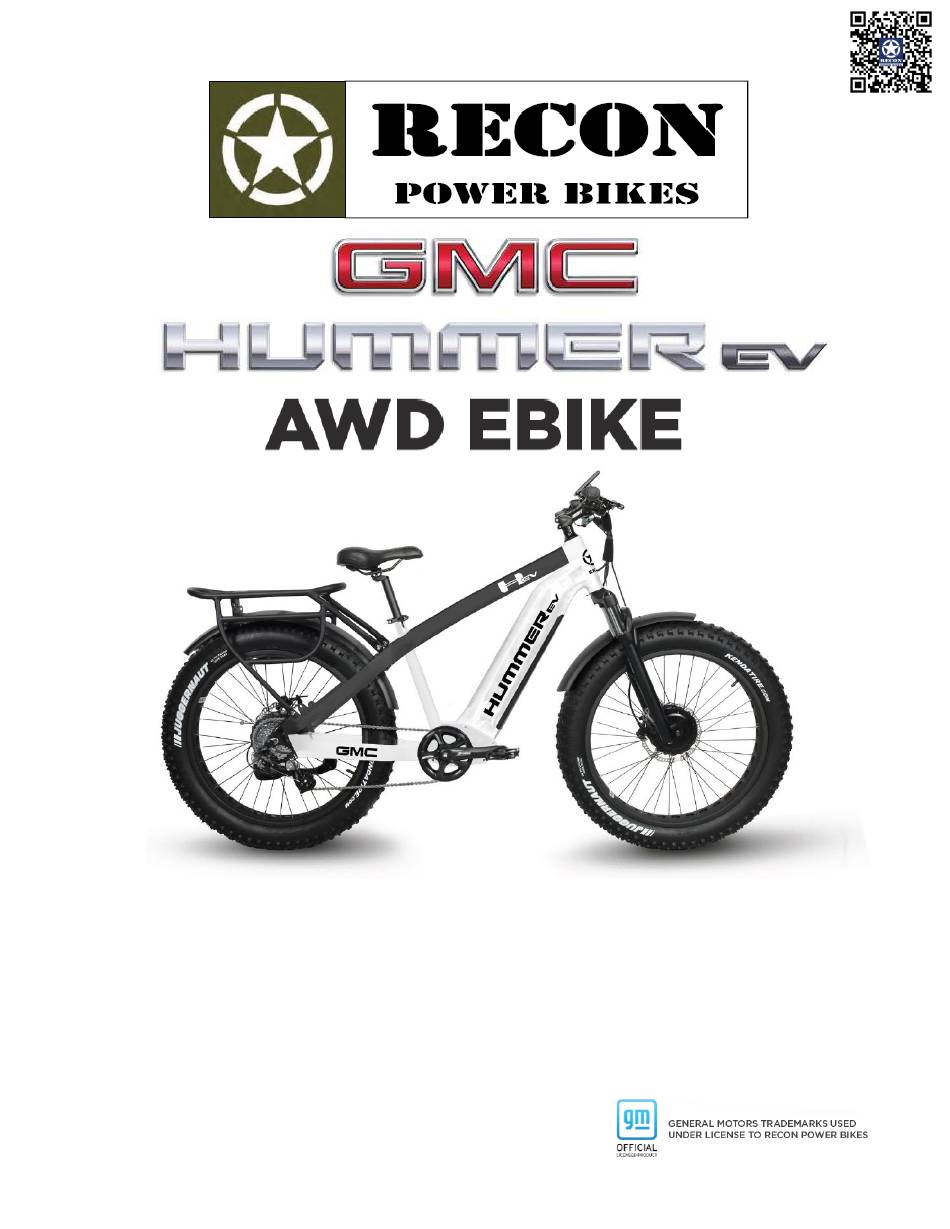

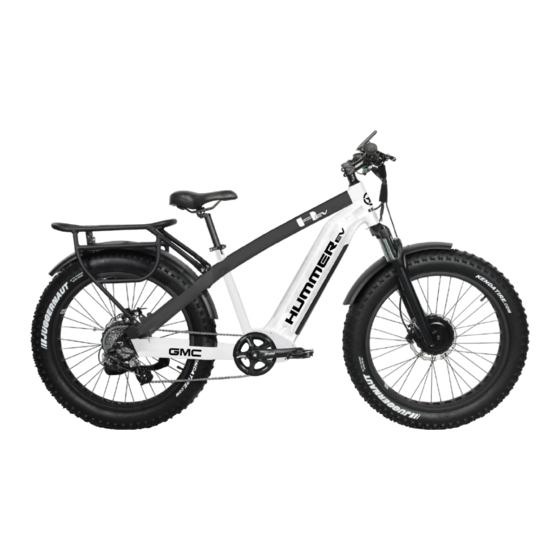

2023 RECON HUMMER EV AWD E-BIKE
Owner's Manual
This manual contains important safety, performance, and service information.
Read it before you take your first ride on your new RECON Power Bike and keep
it for future reference.
v1.03
1

Advertisement

Table of Contents
loading

Summary of Contents for Recon HUMMER EV

  • Page 1 AWD ASSEMBLY VIDEO 2023 RECON HUMMER EV AWD E-BIKE Owner’s Manual This manual contains important safety, performance, and service information. Read it before you take your first ride on your new RECON Power Bike and keep it for future reference. v1.03...
  • Page 2 This manual contains important information on how to assemble, safely operate, and properly maintain your RECON Power Bike. Read this manual prior to assembly and before your first ride so you are familiar with your E-Bike. Please be aware of the (4) safety messages below and what they mean. You will see them periodically throughout this manual.

  • Page 3: Table Of Contents

    Index: Safety Warnings and Specifications______________________________4 Section 1: Assembly Instructions________________________________6 Section 2: Battery Installation, Care, and Maintenance_____________10 Section 3: Bike Operation, Riding Tips, and Safety_________________13 Section 4: Maintenance and Inspection Checklists_________________15 Section 5: Warranty Information_______________________________16 Section 6: Shipping Damage Claims_____________________________17 Section 7: Return Policy ______________________________________17 Section 8: Error Codes and Troubleshooting______________________18...

  • Page 4: Index: Safety Warnings And Specifications

    WARNING: ADULT OPERATORS ONLY RECON E-Bikes are intended to be used solely by an adult operator 18 years or older. Please follow the instructions contained in this manual before operating the machine. DANGER: FOLLOW SAFE RIDING PRACTICES • OPERATOR ONLY! NO PASSENGERS! •...
  • Page 5 Derailleur: Shimano Altus 8 Speed Handlebar/Stem: Promax Adjustable NOTE: The GMC HUMMER EV AWD E-Bike is set at a maximum speed of 20 mph from the factory. Speed can be regulated by the end user to comply with local regulations.

  • Page 6: Section 1: Assembly Instructions

    SECTION 1: ASSEMBLY WARNING: Incorrect assembly, maintenance, or use of your HUMMER EV AWD E-Bike can cause component or performance failure, loss of control, serious injury, or death. All operators of this E-Bike must read and understand the entire manual before riding. If you are not sure you have the experience, skills, and tools to correctly perform all assembly steps in the manual, consult a certified, reputable bike mechanic.
  • Page 7 3.) Front tire installation: 1. If present, remove the protective plastic spacer from the dropouts of the front fork. 2. Locate the front tire. Unscrew the axle nuts and washers until they reach the end of the threads. (See photo below).
  • Page 8 3. Plug the light into the matching red receptacle in the wire bundle. (NOTE: Be careful not to bend the wire prongs inside of the plugs.) 6.) Rear fender & rack installation (optional): 1. Attach the rear racking using (4) long bolts, (8) washers, and (4) nuts. Align the rack with the (4) rack brackets on the frame.
  • Page 9 8.) Adjusting the seatpost: The seat will come installed in the bike. However, that position is likely not appropriate for all riders. It may be necessary to adjust the seat height and position to ensure safe, comfortable, and efficient riding. 1.

  • Page 10: Section 2: Battery Installation, Care, And Maintenance

    SECTION 2: BATTERY INSTALLATION, CARE, MAINTENANCE The battery that comes with your HUMMER EV AWD E-Bike is a state-of-the-art, lithium-ion battery produced by LG, that’s designed to give you years of power with proper care and use. Follow the recommendations here for the best possible performance.
  • Page 11 Using a damaged battery or charger can damage your bike and/or create a fire hazard. Stop using your battery and charger and contact RECON Power Bikes immediately if any of the following occur: (1) Your battery or charger is physically damaged, non-functional, or performing abnormally. (2) Your battery or charger experienced a significant impact from a fall or crash, with or without obvious signs of damage.
  • Page 12 OR FIRES. • IF YOU NOTICE A SMELL COMING FROM THE CHARGER, OR IT IS TOO HOT, STOP CHARGING IMMEDIATELY AND CONTACT RECON. 4.) Tips for maintaining battery: • The battery pack may be charged after each use. The 48V lithium-ion battery has no memory effect, so you can charge the battery after short periods of use without any damage.

  • Page 13: Section 3: Bike Operation, Riding Tips, And Safety

    2. To adjust the Pedal Assist Level (PAS), push the “-“ button to DECREASE PAS level and push the “+” button to INCREASE PAS level. a. RECON always recommends starting in PAS Levels 1 or 2 until the operator is comfortable with the bike before increasing to higher levels of motor output.
  • Page 14 Be aware of obstacles while operating walk mode. Understand how to turn off walk mode: pull either brake lever or depress the “-“ button. 3. Tips for riding the HUMMER EV AWD E-Bike: 1. To maximize range and battery output, use the pedals and pedal assist (PAS) often (especially during start-ups and hill climbs).

  • Page 15: Section 4: Maintenance And Inspection Checklists

    2. It is the operator’s responsibility to understand and responsibly make parameter changes. If the operator is unsure of the change being made – contact RECON Customer Service. 3. To make changes, simultaneously press and hold the “+” and “-“ buttons. The Display Setting and Information screen will appear (left).

  • Page 16: Section 5: Warranty Information

    If a component is deemed to be defective or damaged without user error or other improper use, RECON will assist in replacing that part. This includes any parts deemed to have been damaged in shipping. We will not replace any part...

  • Page 17: Section 6: Shipping Damage Claims

    RECON will also cover the associated repair labor fees, only if the scope of service is agreed upon prior to the fix. The owner may also return the unit to RECON to make the needed repairs but will be responsible for shipping costs each way.

  • Page 18: Section 8: Error Codes And Troubleshooting

    All purchases made through authorized RECON dealers are subject to the dealer’s return and refund polices. RECON does not accept direct returns of products sold through authorized dealers. All products sold through dealers must be returned to the original seller.
