RadioLink B0CCXTF4XG User Manual

Radiolink 5.8G 48H FPV camera user manual
1. Parameters
 operating frequency: 5.8G
 operating channels: 48CH
 operating power: 25mW/100mW/200mW/0mW(PitMode)
 operating voltage: DC 3-5V (1S)
 operating current(5V): 330mA(25mW)/430mA(100mW)/490mA(200mW)
 Antenna: copper tube antenna
 Weight: 0.15 oz
 Size: 0.70''*0.66''*0.65''
 Resolution: 720P
 Camera Wide Angle: 120
°
 Smartaudio supported
 External OSD chip supported
2.

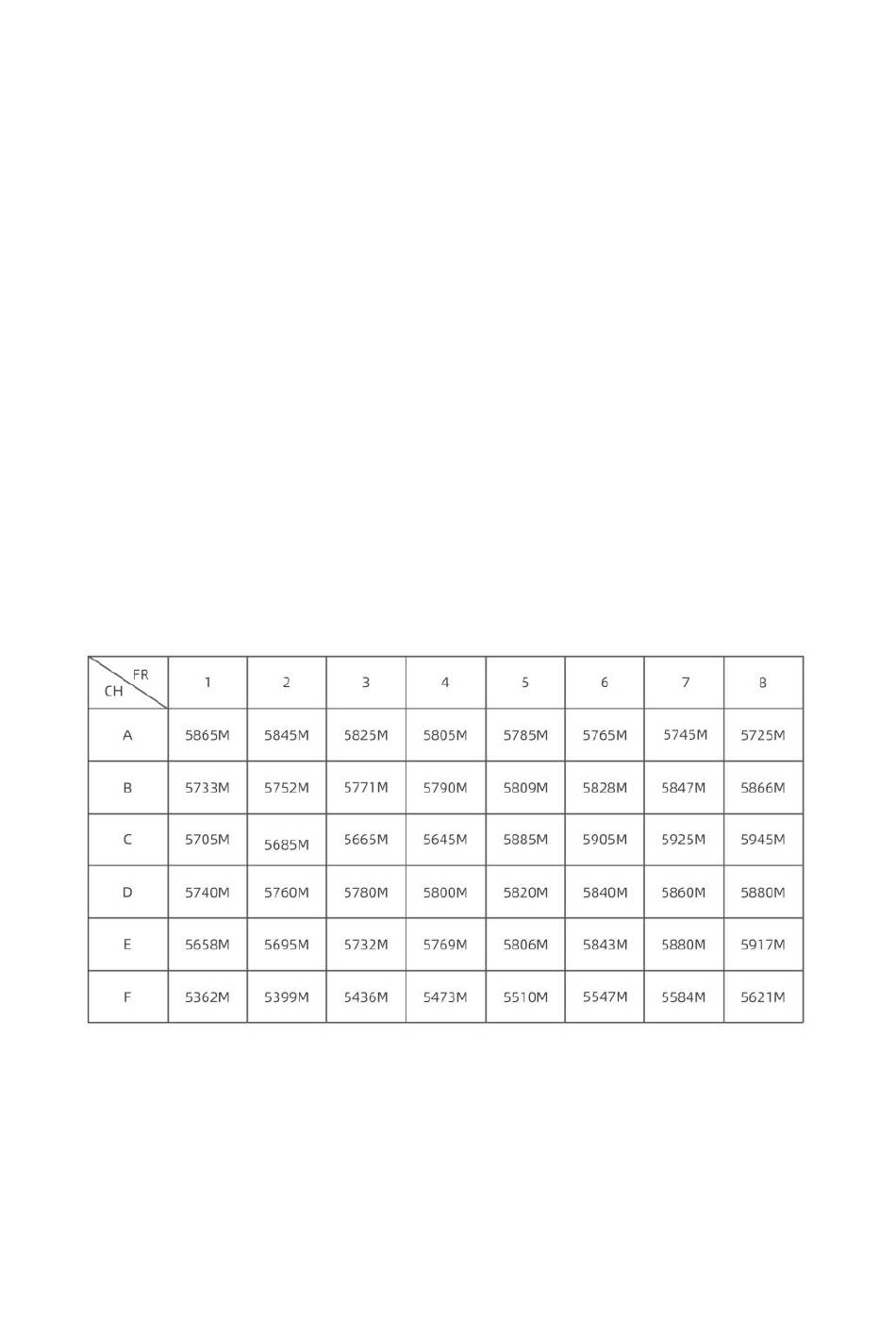

Channel Table
Frequency Selection: Long press the switch button for 5 seconds, the red light
flashes 1 time to enter the frequency selection mode, and then short press the
switch button to switch the frequency. Each short press switches the frequency once.
The blue light flashes 1 time to indicate the frequency point 1 and the blue light
flashes 2 times to indicate the frequency point 2, and in order 1/2/3/4/5/6/7/8.
