Huion Kamvas 24 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
Product Overview ...................................................... 2
Product Connection .................................................... 4
Driver and Setting ..................................................... 6
........................................................ 6
.................................................... 22
....................................................... 31
Digital Pen Basic Operation .............................................. 36
Specifications ........................................................ 40
Troubleshooting Solutions .............................................. 41
................................................... 2
................................................ 2
................................................ 17
................................................... 19
GS2401
1 / 44

Advertisement

Table of Contents
loading

Related Manuals for Huion Kamvas 24

Summary of Contents for Huion Kamvas 24

  • Page 1: Table Of Contents

    GS2401 Contents Product Overview ............2 Display Introduction ........... 2 Product and Accessories ..........2 Product Connection ............ 4 Driver and Setting ............. 6 Install Driver ............6 Driver Interface Preview ..........17 Pen Display Setting ........... 19 Digital Pen Setting ............

  • Page 2: Product Overview

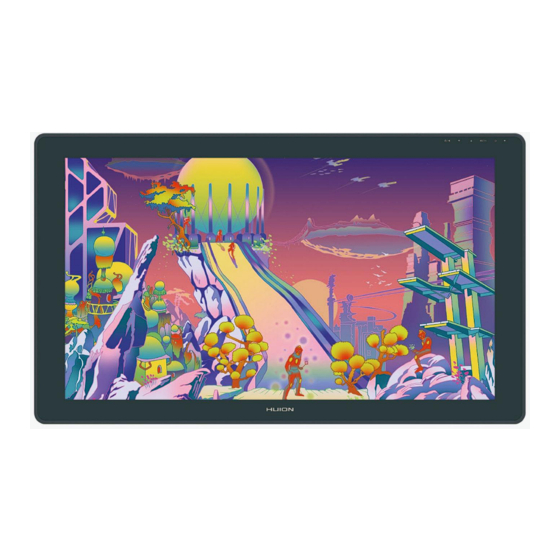

    Product Overview Display Introduction Thanks for choosing HUION Kamvas 24 creative pen display. This is a new generation of professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.
  • Page 3 GS2401 Accessories After unboxing your package, make sure that you have the following items: Pen Display*1 Battery-free Pen*1 Pen Holder*1 Replacement Nibs(Inside the Pen Holder)*10 3-in-1 Cable*1 Power Cable*1 Power Adapter*1 Quick Start Guide*1 Cleaning Cloth*1 3 / 44...

  • Page 4: Product Connection

    GS2401 Product Connection The display supports the connection of a computer and Android device, please refer to the following connection method. Power Indicator Light When the pen display is connected, you can look at the color of the indicator light to identify the status of the pen display.
  • Page 5 GS2401 A/◀ press the key to return to a previous menu after we access the OSD menu. 3-in-1 Type-C Cable Connect the pen display to your computer with 3-in-1 Cable. ① Connect the display to your computer with 3-in-1 cable; ②...

  • Page 6: Driver And Setting

    Here are the step-by-step instructions for installing the driver: 1. Please choose the correct driver for your device from our website: Driver-Kamvas 24 2. Click Driver-Inspiroy Giano to download it. 3. Follow the instructions to complete the installation. 6 / 44...
  • Page 7 GS2401 7 / 44...
  • Page 8 1.Please remember to close the command window and reboot your Linux device after installing the driver, or the driver will not be useful. After rebooting the device, you can access the system main menu to find the Huion Tablet driver and then open it to finish some settings.
  • Page 9 GS2401 · deb (file format) Here are the step-by-step instructions for installing the driver packages in different file formats respectively: 1.Instructions for installing the driver package file in tar.xz format. Linux operating systems supported: Ubuntu Steps to Install: 1.Extract the contents of the driver file, huiontablet_XXXX.tar.xz, into a folder. 2.Open the command window in the folder.
  • Page 10 GS2401 4.Enter the user password to complete the installation. 10 / 44...
  • Page 11 GS2401 5.Please reboot your Linux device to run the driver, or the driver will not be useful. 11 / 44...
  • Page 12 GS2401 Steps to Uninstall: 1.Open the command window in the folder of the driver. 2.Input the following command in the command window: “sudo sh uninstall.sh”, and press the enter key on the keyboard to make your Linux device execute it. 12 / 44...
  • Page 13 GS2401 3.Enter the user password to complete the uninstallation. 13 / 44...
  • Page 14 GS2401 2.Instructions for installing the driver package file in deb format. Linux operating systems supported: Ubuntu Steps to Install: 1.Open the folder and double-click the driver file in deb format to enter the system default interface of installing the driver on the application store, then click to install. 2.Enter the user password to complete the installation.
  • Page 15 GS2401 3.Please reboot your Linux device to run the driver, or the driver will not be useful. 15 / 44...
  • Page 16 GS2401 Tips: Please ensure that your Linux device has been connected to the internet when installing the driver, or the installation will fail when entering the application store interface. Steps to Uninstall: 1.Enter the interface of the installed applications on the system’s built-in application store. 2.Find the driver and click to uninstall it.

  • Page 17: Driver Interface Preview

    GS2401 Tips: If you can't access the system’s built-in application store, you can search out the driver file, huiontablet_xxx.deb, then double-click it to enter the installation interface, and click the remove button to uninstall it. Driver Interface Preview 17 / 44...
  • Page 18 Pressure Sensitivity Adjustment and Pressure Test. See Section 3. Store Huion Store, where you can get the latest information about the product such as its FAQ or sales promotion. Additionally, you can also purchase other products or accessories on Huion Store.

  • Page 19: Pen Display Setting

    GS2401 4. Add Programs You can customize different functions on the current device for different programs. When select All programs, the setting of the device is valid for every program. By clicking Add a Program from the drop-down list, you can set the functions for a specific program and hence have unique settings for different programs.
  • Page 20 GS2401 Define the device area that will be mapped to the screen area. [1] Full Area: the entire active area of the device. This is the default setting. [2] Screen Ratio: As a general rule, be 16:9. [3] Customized Area: 1>...
  • Page 21 GS2401 3. Monitor Calibration Click "Cursor Calibration" to enter the calibration page and operate according to the prompts. 21 / 44...

  • Page 22: Digital Pen Setting

    GS2401 Please use the digital pen to click on the center red dot of the cross in a common pen-holding posture. You can cancel Calibration and restore default. 22 / 44...
  • Page 23 GS2401 Digital Pen Setting 1. Press Key The function setting is the same as the Press Key setting of the tablet. Please refer to it. ①Keyboard Key Click on the input box above and enter a valid key combination to creat a shortcut. For example "Ctrl+A", "Ctrl+Z", and so on.
  • Page 24 GS2401 ②Mouse Key Select the function of a Mouse or Wheel. Please see the picture below for detailed functions. Mouse: Left Button, Right Button, Middle Button. Wheel: Wheel Forward, Wheel Backward. Double-Left Click. 24 / 44...
  • Page 25 GS2401 ③Switch Select Switch Screen or Switch Brush. Note: Some software does not support the "Switch Brush" function. ④Run Program Browse and select a program that you want to launch quickly. After the setting, you can launch that program with just a single press. 25 / 44...
  • Page 26 GS2401 ⑤System Application The table below are the functions of Windows and Mac Systems that can be customized on the Keys. ⑥Multimedia 26 / 44...
  • Page 27 GS2401 To realize the functions such as previous song, next song, play/pause, volume up, volume down. ⑦None When select None, the keys will have no function. 2. Pen Nib Activity The pen nibs can be set to be Valid/Invalid as needed. Click the drop-down option to select. In Valid mode, the digital pen can be used normally.
  • Page 28 GS2401 3. Enable Windows ink Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on. 28 / 44...
  • Page 29 GS2401 4. Pressure Sensitivity Adjustment The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive. Click the Redo button at the top right of the Settings box to reset the pressure sensitivity to the default state.
  • Page 30 GS2401 5. Pressure Test You can gradually apply pressure to the stylus on the screen to test the pressure level. Click the Clear button to clear all the ink. 30 / 44...

  • Page 31: Driver Setting

    GS2401 Driver Setting 1. Device You can view product information. 31 / 44...
  • Page 32 GS2401 *OSD Settings Scene Mode: You can choose the "Standard Mode", "Motion Mode", "Movie Mode" and "Gaming Mode". Brightness: You can djust the brightness of the screen. Contrast Ratio: You can adjust the contrast of the screen. Color Temperature: You can choose "6500K", "9500K", and "USER" mode. In the "USER" mode, you can customize the color temperature by adjusting the RGB value.
  • Page 33 GS2401 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 33 / 44...
  • Page 34 GS2401 3. General Setting [1] Language: Click the drop down menu to select a language. [2] Color: You can select the color of the Driver interface among Dark, Blue, and Light according to your preference. [3] Start Menu: Click to enable or disable AutoStart, New Message Alert, Automatic Updates. [4] Hotkey: A hotkey can be used to call out the Driver interface quickly, you can set one according to your usage habits.
  • Page 35 GS2401 4. About Users can check the Driver version number here. Click Check for Updates to view the latest Driver version and then follow the prompts to update the Driver if needed. 35 / 44...

  • Page 36: Digital Pen Basic Operation

    GS2401 Digital Pen Basic Operation Hold the Pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.
  • Page 37 GS2401 Position the cursor Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.
  • Page 38 GS2401 Click Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it. Move Select the object, then slide the pen tip across the screen to move it. 38 / 44...
  • Page 39 GS2401 Use the side buttons The buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area. You do not have to touch the pen tip to the device in order to use the switch. Pen Nib Replacement The nib will be wear off after using for a long time, then you need to replace a new nib.

  • Page 40: Specifications

    GS2401 3. Insert the new nib straight into the pen and push the nib slowly and firmly until it stops. Specifications Here are the product specifications for you to learn more about the device. If you have any questions, please feel free to contact us. The following data will vary in different usage environments and are for reference only.

  • Page 41: Troubleshooting Solutions

    GS2401 Technical Specifications Digital Pen PW517 Pen Technology Battery-Free Electromagnetic Resonance Pen Resolution 5080 LPI Pressure Sensitivity 8192 Levels Pen Tilt Support Sensing Height 10mm Report Rate ＞220PPS Operating Conditions Input Voltage DC 19V Output Voltage 19V 3A Power Consumption ≤20W Standby Consumption ≤0.3W...
  • Page 42 GS2401 1. Make sure power is on. 2. Correctly connect the cables. 3. If you connect the display with a laptop, please make sure the display is on the right display mode: extend or duplicate mode. 4. Check whether the side indicator shows green, if not, it means no signal in. Please reboot your computer or reconnect the cable.
  • Page 43 You may have installed other display drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It's better to restart your computer after finishing the installation.
  • Page 44 The computer can't recognize the display. Check that the USB port is normal. If there is any problem, please use another USB port. If your problem is not resolved, please click FAQs to view more troubleshooting methods or email us(service@huion.com). 44 / 44...
