Huion Kamvas 24 Plus Manual

Hide thumbs Also See for Kamvas 24 Plus:
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
Product Overview ...................................................... 2
Product Connection .................................................... 4
Driver and Setting ..................................................... 6
........................................................ 6
.................................................... 12
....................................................... 21
Pen-enabled OSD Menu ................................................ 26
Digital Pen Basic Operation .............................................. 28
Specifications ........................................................ 32
Troubleshooting Solutions .............................................. 34
................................................... 2
................................................ 2
................................................. 8
.................................................... 9
Kamvas 24 Plus
1 / 37

Advertisement

Table of Contents
loading

Related Manuals for Huion Kamvas 24 Plus

Summary of Contents for Huion Kamvas 24 Plus

  • Page 1: Table Of Contents

    Kamvas 24 Plus Contents Product Overview ............2 Display Introduction ........... 2 Product and Accessories ..........2 Product Connection ............ 4 Driver and Setting ............. 6 Install Driver ............6 Driver Interface Preview ..........8 Pen Display Setting ............ 9 Digital Pen Setting ............

  • Page 2: Product Overview

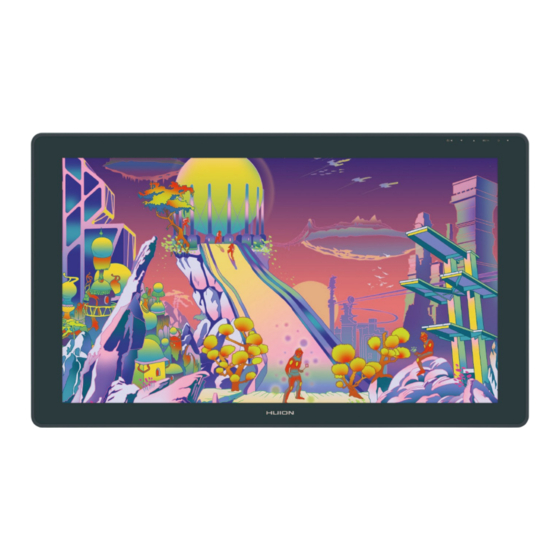

    Product Overview Display Introduction Thanks for choosing HUION KAMVAS 24 Plus creative pen display. This is a new generation of professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.
  • Page 3 Kamvas 24 Plus Accessories After unboxing your package, make sure that you have the following items: Pen Display*1 Battery-free Pen*1 Pen Holder*1 Replacement Nibs(Inside the Pen Holder)*10 3-in-1 Cable*1 Power Cable*1 Power Adapter*1 Quick Start Guide*1 Cleaning Cloth*1 3 / 37...

  • Page 4: Product Connection

    Kamvas 24 Plus Product Connection The display supports the connection of a computer and Android device, please refer to the following connection method. 3-in-1 Type-C Cable Connect the pen display to your computer with 3-in-1 Cable. ① Connect the display to your computer with 3-in-1 cable;...
  • Page 5 Kamvas 24 Plus USB-C to USB-C Cable Connect the display to your computer or Android device with USB-C to USB-C cable. ① Connect the display to your computer or Android device with USB-C to USB-C cable. ② Connect the power adapter to the power cable.

  • Page 6: Driver And Setting

    Kamvas 24 Plus Driver and Setting Install Driver Please download the driver from our website: Driver-Kamvas 24 Note: 1. Before installing driver, please close all graphic software and antivirus program. 2. If you have installed other pen tablet driver, please uninstall it before you install this driver.
  • Page 7 Kamvas 24 Plus 7 / 37...

  • Page 8: Driver Interface Preview

    Pressure Sensitivity Adjustment and Pressure Test. See Section 3. Store Huion Store, where you can get the latest information about the product such as its FAQ or sales promotion. Additionally, you can also purchase other products or accessories on Huion 8 / 37...

  • Page 9: Pen Display Setting

    Kamvas 24 Plus Store. 4. Add Programs You can customize different functions on the current device for different programs. When select All programs, the setting of the device is valid for every program. By clicking Add a Program from the drop-down list, you can set the functions for a specific program and hence have unique settings for different programs.
  • Page 10 Kamvas 24 Plus 1. Working Area Setting Define the device area that will be mapped to the screen area. [1] Full Area: the entire active area of the device. This is the default setting. [2] Screen Ratio: As a general rule, be 16:9.
  • Page 11 Kamvas 24 Plus 3. Monitor Calibration Click "Cursor Calibration" to enter the calibration page and operate according to the prompts. 11 / 37...

  • Page 12: Digital Pen Setting

    Kamvas 24 Plus Please use the digital pen to click on the center red dot of the cross in a common pen-holding posture. You can cancel Calibration and restore default. 12 / 37...
  • Page 13 Kamvas 24 Plus Digital Pen Setting 1. Press Key The function setting is the same as the Press Key setting of the tablet. Please refer to it. ①Keyboard Key Click on the input box above and enter a valid key combination to creat a shortcut. For example "Ctrl+A", "Ctrl+Z", and so on.
  • Page 14 Kamvas 24 Plus ②Mouse Key Select the function of a Mouse or Wheel. Please see the picture below for detailed functions. Mouse: Left Button, Right Button, Middle Button. Wheel: Wheel Forward, Wheel Backward. Double-Left Click. 14 / 37...
  • Page 15 Kamvas 24 Plus ③Switch Select Switch Screen or Switch Brush. Note: Some software does not support the "Switch Brush" function. ④Run Program Browse and select a program that you want to launch quickly. After the setting, you can launch that program with just a single press.
  • Page 16 Kamvas 24 Plus ⑤System Application The table below are the functions of Windows and Mac Systems that can be customized on the Keys. ⑥Multimedia 16 / 37...
  • Page 17 Kamvas 24 Plus To realize the functions such as previous song, next song, play/pause, volume up, volume down. ⑦None When select None, the keys will have no function. 2. Pen Nib Activity The pen nibs can be set to be Valid/Invalid as needed. Click the drop-down option to select. In Valid mode, the digital pen can be used normally.
  • Page 18 Kamvas 24 Plus 3. Enable Windows ink Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on. 18 / 37...
  • Page 19 Kamvas 24 Plus 4. Pressure Sensitivity Adjustment The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive. Click the Redo button at the top right of the Settings box to reset the pressure sensitivity to the default state.
  • Page 20 Kamvas 24 Plus 5. Pressure Test You can gradually apply pressure to the stylus on the screen to test the pressure level. Click the Clear button to clear all the ink. 20 / 37...

  • Page 21: Driver Setting

    Kamvas 24 Plus Driver Setting 1. Device You can view product information. 21 / 37...
  • Page 22 Kamvas 24 Plus *OSD Settings Scene Mode: You can choose the "Standard Mode", "Motion Mode", "Movie Mode" and "Gaming Mode". Brightness: You can djust the brightness of the screen. Contrast Ratio: You can adjust the contrast of the screen. Color Temperature: You can choose "6500K", "9500K", and "USER" mode. In the "USER" mode, you can customize the color temperature by adjusting the RGB value.
  • Page 23 Kamvas 24 Plus 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 23 / 37...
  • Page 24 Kamvas 24 Plus 3. General Setting [1] Language: Click the drop down menu to select a language. [2] Color: You can select the color of the Driver interface among Dark, Blue, and Light according to your preference. [3] Start Menu: Click to enable or disable AutoStart, New Message Alert, Automatic Updates.
  • Page 25 Kamvas 24 Plus 4. About Users can check the Driver version number here. Click Check for Updates to view the latest Driver version and then follow the prompts to update the Driver if needed. 25 / 37...

  • Page 26: Pen-Enabled Osd Menu

    Kamvas 24 Plus Pen-enabled OSD Menu OSD settings on Kamvas 24 Plus products can be done with the digital pen. Long press the power switch button to call up the OSD menu, and then use the digital pen to adjust the settings. The user interface is designed in a minimalist way, where options including Brightness, Color Temperature, General Settings and Exit are reserved, while seldom used ones are eliminated.
  • Page 27 Kamvas 24 Plus Color Temp. Settings There are four mode of "6500K", "9300K", "sRGB" and "User" can be choosed. In "User" mode, you can adjust the Color temperature by dragging the bar on the upper right. General Settings 27 / 37...

  • Page 28: Digital Pen Basic Operation

    Kamvas 24 Plus ①TypeC/HDMI: Display the current signal connection mode. ②FULL: Switch the display ratio to FULL. ③4:3 : Switch the display ratio to 4:3. ④16:9 : Switch the display ratio to 16:9. ⑤Reset : All the setting options will be restored to the default setting.
  • Page 29 Kamvas 24 Plus Position the cursor Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.
  • Page 30 Kamvas 24 Plus Click Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it. Move Select the object, then slide the pen tip across the screen to move it.
  • Page 31 Kamvas 24 Plus Use the side buttons The buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area. You do not have to touch the pen tip to the device in order to use the switch.

  • Page 32: Specifications

    Kamvas 24 Plus 3. Insert the new nib straight into the pen and push the nib slowly and firmly until it stops. Specifications Here are the product specifications for you to learn more about the device. If you have any questions, please feel free to contact us.
  • Page 33 Kamvas 24 Plus Full Lamination: Contrast Ratio: 1200:1 Brightness: 220cd/m2 Response Time: 14ms Viewing Angle: 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10) AGamut: 97%NTSC/140% sRGB Display Color: 16.7M(8bit) Technical Specifications Digital Pen: PW517 Pen Technology: Battery-Free Electromagnetic Resonance Pen Resolution: 5080 LPI Pressure Sensitivity: 8192 Levels Tilt Support: ±60°...

  • Page 34: Troubleshooting Solutions

    Kamvas 24 Plus Working Temp. and Humidity: 0-40°C, 20-80% Storage Temp. and Humidity: -20°C~60°C, 10-90% OS Compatibility Windows 7 or later macOS 10.12 or later Android 6.0 or later Troubleshooting Solutions 1. Possible Breakdowns Related to Display. Power indicator does not flash.
  • Page 35 Kamvas 24 Plus tower, but not into the motherboard. 3. If you use a Windows OS computer, make sure to press ''Windows+P'' on keyboard, then choose Duplicate or Extend. Don't choose Computer Only or Projector Only. 4. If there is no HDMI port on your computer, you need an extra HDMI adapter. We don't recommend a USB to HDMI adapter.
  • Page 36 You may have installed other display drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It's better to restart your computer after finishing the installation.
  • Page 37 Kamvas 24 Plus 37 / 37...
