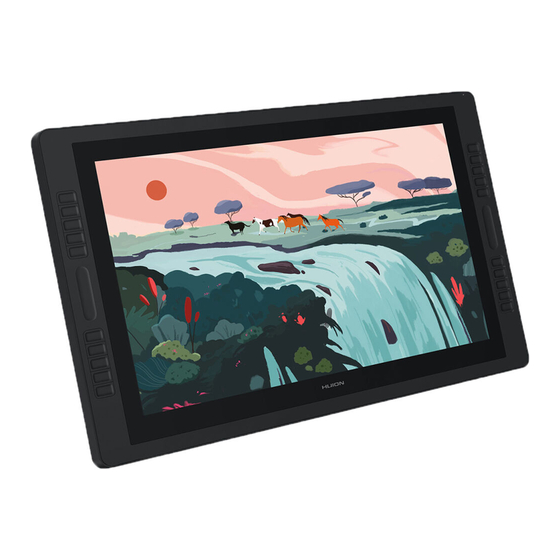

Huion KAMVAS Pro 24 Manual

Hide thumbs Also See for KAMVAS Pro 24:
Table of Contents

Advertisement

Quick Links

Contents
Product Overview ...................................................... 2
Product Connection .................................................... 4
Driver and Setting ..................................................... 6
........................................................ 6
.................................................... 22
....................................................... 31
Pen-enabled OSD Menu ................................................ 36
Digital Pen Basic Operation .............................................. 39
Specifications ........................................................ 43
Troubleshooting Solutions .............................................. 45
................................................... 2
................................................ 2
................................................ 17
................................................... 19
Kamvas Pro 24(4K)
1 / 48

Advertisement

Table of Contents
loading

Related Manuals for Huion KAMVAS Pro 24

Summary of Contents for Huion KAMVAS Pro 24

  • Page 1: Table Of Contents

    Kamvas Pro 24(4K) Contents Product Overview ............2 Display Introduction ........... 2 Product and Accessories ..........2 Product Connection ............ 4 Driver and Setting ............. 6 Install Driver ............6 Driver Interface Preview ..........17 Pen Display Setting ........... 19 Digital Pen Setting ............

  • Page 2: Product Overview

    Product Overview Display Introduction Thanks for choosing HUION KAMVAS Pro 24(4K) creative pen display. This is a new generation of professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.
  • Page 3 Kamvas Pro 24(4K) Accessories After unboxing your package, make sure that you have the following items: Pen Display*1 Battery-free Pen*1 Pen Holder*1 KD100 *1 Replacement Nibs(Inside the Pen Holder)*10 HDMI Cable*1 USB-C To USB-C Cable*1 USB-C Cable*1 Power Cable*1 Power Adapter*1...

  • Page 4: Product Connection

    Kamvas Pro 24(4K) Product Connection The display supports the connection of a computer and Android device, please refer to the following connection method. Connect to the computer Connect the pen display to your computer with HDMI Cable and USB Cable. Please refer to the follower steps.
  • Page 5 Kamvas Pro 24(4K) USB-C to USB-C Cable Connect the display to your computer or Android device with USB-C to USB-C cable. ① Connect the display to your computer or Android device with USB-C to USB-C cable. ② Connect the power adapter to the power cable.

  • Page 6: Driver And Setting

    Kamvas Pro 24(4K) Driver and Setting Install Driver How to Install and Uninstall the Drivers on Windows/Mac Device Notice: 1. Before installing driver, please close all graphic software and antivirus program. 2. If you have installed other pen tablet driver, please uninstall it before you install this driver.
  • Page 7 Kamvas Pro 24(4K) 3. Follow the instructions to complete the installation. 7 / 48...
  • Page 8 1.Please remember to close the command window and reboot your Linux device after installing the driver, or the driver will not be useful. After rebooting the device, you can access the system main menu to find the Huion Tablet driver and then open it to finish some settings.
  • Page 9 Kamvas Pro 24(4K) · deb (file format) Here are the step-by-step instructions for installing the driver packages in different file formats respectively: 1.Instructions for installing the driver package file in tar.xz format. Linux operating systems supported: Ubuntu Steps to Install: 1.Extract the contents of the driver file, huiontablet_XXXX.tar.xz, into a folder.
  • Page 10 Kamvas Pro 24(4K) 4.Enter the user password to complete the installation. 10 / 48...
  • Page 11 Kamvas Pro 24(4K) 5.Please reboot your Linux device to run the driver, or the driver will not be useful. 11 / 48...
  • Page 12 Kamvas Pro 24(4K) Steps to Uninstall: 1.Open the command window in the folder of the driver. 2.Input the following command in the command window: “sudo sh uninstall.sh”, and press the enter key on the keyboard to make your Linux device execute it.
  • Page 13 Kamvas Pro 24(4K) 3.Enter the user password to complete the uninstallation. 13 / 48...
  • Page 14 Kamvas Pro 24(4K) 2.Instructions for installing the driver package file in deb format. Linux operating systems supported: Ubuntu Steps to Install: 1.Open the folder and double-click the driver file in deb format to enter the system default interface of installing the driver on the application store, then click to install.
  • Page 15 Kamvas Pro 24(4K) 3.Please reboot your Linux device to run the driver, or the driver will not be useful. 15 / 48...
  • Page 16 Kamvas Pro 24(4K) Tips: Please ensure that your Linux device has been connected to the internet when installing the driver, or the installation will fail when entering the application store interface. Steps to Uninstall: 1.Enter the interface of the installed applications on the system’s built-in application store.

  • Page 17: Driver Interface Preview

    Kamvas Pro 24(4K) Tips: If you can't access the system’s built-in application store, you can search out the driver file, huiontablet_xxx.deb, then double-click it to enter the installation interface, and click the remove button to uninstall it. Driver Interface Preview...
  • Page 18 Pressure Sensitivity Adjustment and Pressure Test. See Section 3. Store Huion Store, where you can get the latest information about the product such as its FAQ or sales promotion. Additionally, you can also purchase other products or accessories on Huion Store.

  • Page 19: Pen Display Setting

    Kamvas Pro 24(4K) 4. Add Programs You can customize different functions on the current device for different programs. When select All programs, the setting of the device is valid for every program. By clicking Add a Program from the drop-down list, you can set the functions for a specific program and hence have unique settings for different programs.
  • Page 20 Kamvas Pro 24(4K) 1. Working Area Setting Define the device area that will be mapped to the screen area. [1] Full Area: the entire active area of the device. This is the default setting. [2] Screen Ratio: As a general rule, be 16:9.
  • Page 21 Kamvas Pro 24(4K) 3. Monitor Calibration Click "Cursor Calibration" to enter the calibration page and operate according to the prompts. 21 / 48...

  • Page 22: Digital Pen Setting

    Kamvas Pro 24(4K) Please use the digital pen to click on the center red dot of the cross in a common pen-holding posture. You can cancel Calibration and restore default. 22 / 48...
  • Page 23 Kamvas Pro 24(4K) Digital Pen Setting 1. Press Key The function setting is the same as the Press Key setting of the tablet. Please refer to it. ①Keyboard Key Click on the input box above and enter a valid key combination to creat a shortcut. For example "Ctrl+A", "Ctrl+Z", and so on.
  • Page 24 Kamvas Pro 24(4K) ②Mouse Key Select the function of a Mouse or Wheel. Please see the picture below for detailed functions. Mouse: Left Button, Right Button, Middle Button. Wheel: Wheel Forward, Wheel Backward. Double-Left Click. 24 / 48...
  • Page 25 Kamvas Pro 24(4K) ③Switch Select Switch Screen or Switch Brush. Note: Some software does not support the "Switch Brush" function. ④Run Program Browse and select a program that you want to launch quickly. After the setting, you can launch that program with just a single press.
  • Page 26 Kamvas Pro 24(4K) ⑤System Application The table below are the functions of Windows and Mac Systems that can be customized on the Keys. ⑥Multimedia 26 / 48...
  • Page 27 Kamvas Pro 24(4K) To realize the functions such as previous song, next song, play/pause, volume up, volume down. ⑦None When select None, the keys will have no function. 2. Pen Nib Activity The pen nibs can be set to be Valid/Invalid as needed. Click the drop-down option to select. In Valid mode, the digital pen can be used normally.
  • Page 28 Kamvas Pro 24(4K) 3. Enable Windows ink Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on. 28 / 48...
  • Page 29 Kamvas Pro 24(4K) 4. Pressure Sensitivity Adjustment The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive. Click the Redo button at the top right of the Settings box to reset the pressure sensitivity to the default state.
  • Page 30 Kamvas Pro 24(4K) 5. Pressure Test You can gradually apply pressure to the stylus on the screen to test the pressure level. Click the Clear button to clear all the ink. 30 / 48...

  • Page 31: Driver Setting

    Kamvas Pro 24(4K) Driver Setting 1. Device You can view product information. 31 / 48...
  • Page 32 Kamvas Pro 24(4K) *OSD Settings Scene Mode: You can choose the "Standard Mode", "Motion Mode", "Movie Mode" and "Gaming Mode". Brightness: You can djust the brightness of the screen. Contrast Ratio: You can adjust the contrast of the screen. Color Temperature: You can choose "6500K", "9500K", and "USER" mode. In the "USER" mode, you can customize the color temperature by adjusting the RGB value.
  • Page 33 Kamvas Pro 24(4K) 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 33 / 48...
  • Page 34 Kamvas Pro 24(4K) 3. General Setting [1] Language: Click the drop down menu to select a language. [2] Color: You can select the color of the Driver interface among Dark, Blue, and Light according to your preference. [3] Start Menu: Click to enable or disable AutoStart, New Message Alert, Automatic Updates.
  • Page 35 Kamvas Pro 24(4K) 4. About Users can check the Driver version number here. Click Check for Updates to view the latest Driver version and then follow the prompts to update the Driver if needed. 35 / 48...

  • Page 36: Pen-Enabled Osd Menu

    Kamvas Pro 24(4K) Pen-enabled OSD Menu OSD settings on Kamvas Pro 24(4K) products can be done with the digital pen. Long press the power switch button to call up the OSD menu, and then use the digital pen to adjust the settings. The user interface is designed in a minimalist way, where options including Brightness, Color Temperature, General Settings and Exit are reserved, while seldom used ones are eliminated.
  • Page 37 Kamvas Pro 24(4K) Color Temp Settings There are four mode of "6500K", "7500K","9300K" and "User" can be choosed. In "User" mode, you can adjust the Color temperature by dragging the bar on the upper right. 37 / 48...
  • Page 38 Kamvas Pro 24(4K) General Settings ①TypeC/HDMI/DP: Display the current signal connection mode. ②HDR:High dynamic range images. ③4:3 : Switch the display ratio to 4:3. ④16:9 : Change the aspect ratio of viewable area to 16:9. ⑤Reset : All the setting options will be restored to the default setting.

  • Page 39: Digital Pen Basic Operation

    Kamvas Pro 24(4K) Digital Pen Basic Operation Hold the Pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.
  • Page 40 Kamvas Pro 24(4K) Position the cursor Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.
  • Page 41 Kamvas Pro 24(4K) Click Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it. Move Select the object, then slide the pen tip across the screen to move it.
  • Page 42 Kamvas Pro 24(4K) Use the side buttons The buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area. You do not have to touch the pen tip to the device in order to use the switch.

  • Page 43: Specifications

    Kamvas Pro 24(4K) 3. Insert the new nib straight into the pen and push the nib slowly and firmly until it stops. Specifications Here are the product specifications for you to learn more about the device. If you have any questions, please feel free to contact us.
  • Page 44 Kamvas Pro 24(4K) Full Lamination: Contrast Ratio: 1200:1 Brightness: 220cd/m2 Response Time: 10ms Viewing Angle: 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10) AGamut: 98%NTSC/102%Adobe RGB/140%sRGB Display Color: 16.7M(8bit) Technical Specifications Digital Pen: PW517 Pen Technology: Battery-Free Electromagnetic Resonance Pen Resolution: 5080 LPI Pressure Sensitivity: 8192 Levels Tilt Support: ±60°...

  • Page 45: Troubleshooting Solutions

    Kamvas Pro 24(4K) Working Temp. and Humidity: 0-40°C, 20-80% Storage Temp. and Humidity: -20°C~60°C, 10-90% OS Compatibility Windows 7 or later macOS 10.12 or later Android 6.0 or later Troubleshooting Solutions 1. Possible Breakdowns Related to Display. Power indicator does not flash.
  • Page 46 Kamvas Pro 24(4K) tower, but not into the motherboard. 3. If you use a Windows OS computer, make sure to press ''Windows+P'' on keyboard, then choose Duplicate or Extend. Don't choose Computer Only or Projector Only. 4. If there is no HDMI port on your computer, you need an extra HDMI adapter. We don't recommend a USB to HDMI adapter.
  • Page 47 You may have installed other display drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It's better to restart your computer after finishing the installation.
  • Page 48 Kamvas Pro 24(4K) 48 / 48...
