■ Can be intercom with other interphone
■ Can be intercom with the door camera through the monitor
■ Can be combined with door opener
■ No need additional power adapter, powered by indoor monitor
Thank you for purchasing our product.
Read safety instructions and manual carefully before using the product.

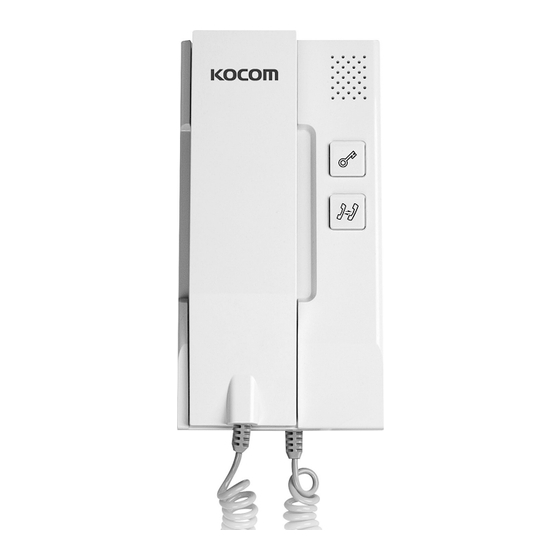

KIP-32GU MANUAL
[ 4 Wire Interphone ]
www.kocom.com
Advertisement
Table of Contents
Related Manuals for KOCOM KIP-32GU
Summary of Contents for KOCOM KIP-32GU
- Page 1 KIP-32GU MANUAL [ 4 Wire Interphone ] ■ Can be intercom with other interphone ■ Can be intercom with the door camera through the monitor ■ Can be combined with door opener ■ No need additional power adapter, powered by indoor monitor Thank you for purchasing our product.
-
Page 2: Cautions For Safety
Cautions for safety For safe use, please stick to the following cautions. ·Please, save this manual after reading these instructions carefully. ·Read and understand all instructions to set up rightly. ·This Cautions for Safety may include items that are not contained in specifications of the product that consumer purchases. ·If you need assistance with the set-up or operation, please contact with A/S center. -
Page 3: Cautions For Use
Safety Instructions, Warnings and Cautions of Each System ·Do not disassemble this unit at will as this device is composed by precision parts. 쪾 ·Install the unit by following the set-up instructions of Kocom. ·Do not touch or insert any foreign substances, for example, sticker, magnetic, opener and the like. -
Page 4: Installation Location
Installation location ■Interphone Installation ④ ①... -
Page 5: Components Of Product
■ Interphone ■ Wall hanger frame 4Pin cable for camera x 1ea ■ Screws Screws for fixing hanger frame body on the wall x 4ea Name and Functions of Each Part ■ Interphone (KIP-32GU) ⑤ ② ① ④ ③ Front... - Page 6 How to operate (Instruction for operating) ■ Call and communication from door camera & door open When visitor push the The indoor monitor and Pick up the handset to talk with visitor. Put down the handset outdoor camera call button. interphone will start ringing.
-
Page 7: Wiring Connection
Wiring Connection ■ Wiring diagram of between Indoor station and door camera KC-S81MU KCV-S701EBU / KCV-S701EBC KIP-32GU ■ Network wiring diagram of between one family Indoor station and door camera... -
Page 8: Warranty Card
2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period: a.
