This manual is based on the date as shown in the right and specifications
are subject to change without notice for quality improvement.

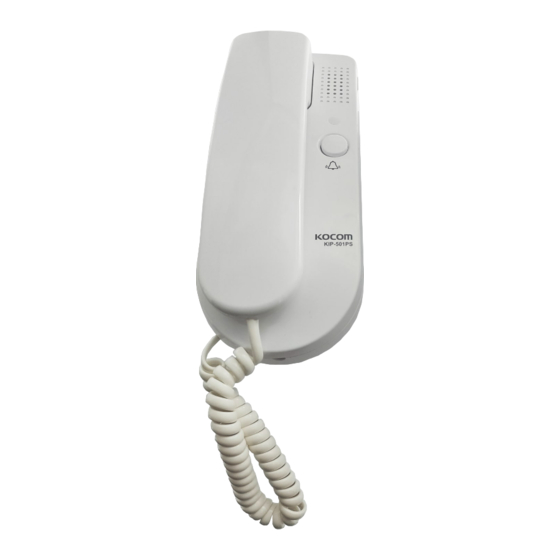

DIRECT INTERPHONE
KIP-501PM & KIP-501PS
Features
�
Perfect for private conversations
�
Delightful sound
�
Easy wiring with 2 lines of polarity
�
Power : D.C 6V (main only) 4 Piece of 1.5V
batteries (one side insert)
�
Range: � 0.65mm wire, 300m line
�
Easily mounted on wall,desk
0507
MANUAL FOR OPERATION AND INSTALLATION
Thank you very much
for purchasing KOCOM
Interphone.
please read this manual
thoroughly to ensure
correct usage,
before operating
KIP-501PM(MAIN)
KIP-501PS(SUB)
Advertisement
Table of Contents
Related Manuals for KOCOM KIP-501PM
Summary of Contents for KOCOM KIP-501PM
- Page 1 DIRECT INTERPHONE MANUAL FOR OPERATION AND INSTALLATION KIP-501PM & KIP-501PS Features � Perfect for private conversations � Delightful sound Thank you very much � Easy wiring with 2 lines of polarity for purchasing KOCOM Interphone. � Power : D.C 6V (main only) 4 Piece of 1.5V...
- Page 2 1) This product is produced under strict quality control and inspection procedures. 2) If this product breaks down during proper use as a result of product defect, KOCOM 2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge.
- Page 3 Warnings Cautions for Safety Warnings for disposal For safe use, please stick to the following cautions. � Do not throw used-up battery into fire places, which may cause fire and explosion. Cautions �Read this cautions carefully and keep it within easy reach of you. �For right installation, read this cautions thoroughly.
- Page 4 Warnings Warnings Cautions for Use Cautions for Use �Do not install the product at bathroom or at the place near a washing machine, or at other humid places. It may cause fire or � This product is only for home. Do not the product for industrial or military use. electric shock.
- Page 5 - This equipment is electronically precision equipment, so do not arbitrarily disassemble it. Home Auto: KHV-444/454/446/456 - In installation of the product, do not fail to follow the specifications (specifications offered by KOCOM). - Do not insert any metallic materials into the inside of fuse cover. It may cause electric shock.
- Page 6 C- Indoor station can be hung on the wall hanger easily now. Specifications Description KIP-501PM KIP-501PS KIP-501P KIP-501P KIP-501P Electric source DC 6V Power from Main (KIP-501PM) Consumption Un Load: 0.2mW, In Load: 3W Un Load: 0.2mW, In Load: 3W Signal Sound Telephone Chime Telephone Chime Wiring 2Wired polarity 2Wired polarity...
