Metra Electronics 70-6504 Installation Instructions

70-6504
Amplifier locations and wiring
Dakota 2005-2007***
Wire Colors for Bypass Harness:
Brown/White
Blue Dark/Pink
Yellow/Blue**
Yellow/Black**
Yellow/Red**
Yellow/Orange**
Green/White Left Front Tweeter (+)
White/Red
Brown/Yellow Right Front Tweeter (+)
Brown/Blue Right Front Tweeter (-)
The rest of the speaker wires are standard Metra/AEI color
code that can be found on the back of this package.
NOTE
The factory amplifier has the crossover built in. When bypass-
ing the factory
amplifier be sure to use crossovers to protect the factory
speakers.
** NOT USED IN 2005 DAKOTA
*** TO RATAIN FACTORY SUBWOOFER IN DODGE DAKOTA CLUB
CAB HOOK UP AMPLIFIER TURN ON WIRE ON THE RADIO
POWER HARNESS
4
Amplifier locations and wiring
Caravan 2005-2007
Right front kick panel
Town & Country 2005-2007
Wire Colors for Bypass Harness:
Not Used
Brown/White
Not Used
Blue Dark/Pink
Subwoofer 1 (+)
Yellow/Blue
Subwoofer 1 (-)
Yellow/Black
Subwoofer 2 (+)
Yellow/Red
Subwoofer 2 (-)
Yellow/Orange
Green/White
Left Front Tweeter (-)
White/Red
Brown/Yellow
Brown/Blue
The rest of the speaker wires are standard Metra/AEI color code
that can be found on the back of this package.
NOTE
The factory amplifier has the crossover built in. When bypassing
the factory
amplifier be sure to use crossovers to protect the factory
speakers.
REV. 03/31/09
1-800-221-0932
©Copyright 2007-2009 Metra Electronics Corporation
70-6504
Behind Right rear speaker
Behind Right rear speaker
Not Used
Not Used
Left Front Tweeter (+)
Left Front Tweeter (-)
Right Front Tweeter (+)
Right Front Tweeter (-)
Left Rear Tweeter (+)
Left Rear Tweeter (-)
Right Rear Tweeter (+)
Right Rear Tweeter
K P
NOWLEDGE IS OWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
INST70-6504
www.axxessinterface.com
CHRYSLER, DODGE, JEEP

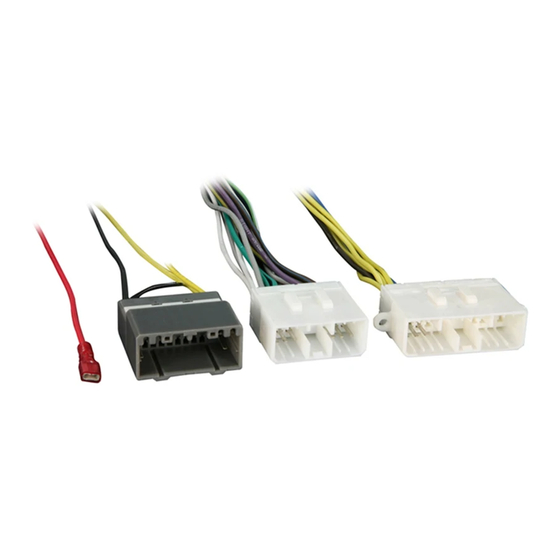

AMPLIFIER BYPASS HARNESS
70-6504
INSTALLATION INSTRUCTIONS
A A P P P P L L I I C C A A T T I I O O N N S S : :
Chrysler
300 2005-2007
Aspen 2007
Town & Country 2005-2007
Dodge
Caliber 2007-2008
Caravan 2005-2007
Charger 2005-2007
Dakota 2005-2007
Durango 2004-2007
Magnum 2005-2007
Ram 2006-2009
(-)
Jeep
Commander 2006-2007
Compass 2007-2009
Grand Cherokee 2005-2007
Patriot 2007-2009
This harness is designed to be
used with all vehicles listed above
that are equipped with the
amplified Infinity sound system.
1-800-221-0932 www.axxessinterface.com
©Copyright 2007-2009 Metra Electronics Corporation
