Metra Electronics 70-6514 Installation Instructions

70-6514
Amplifier locations and wiring
Caravan 2005-2007 Behind Right rear speaker
Wire Colors for Bypass Harness:
Brown/White
Blue Dark/Pink
Yellow/Blue Left Front Tweeter (+)
Yellow/Black Left Front Tweeter (-)
Yellow/Red Right Front Tweeter (+)
Yellow/Orange Right Front Tweeter (-)
Green/White
White/Red Left Rear Tweeter (-)
Brown/Yellow Right Rear Tweeter (+)
Brown/Blue Right Rear Tweeter (-)
The rest of the speaker wires are standard Metra/AEI color
code that can be found on the back of this package.
NOTE
The factory amplifier has the crossover built in. When
bypassing the factory
amplifier be sure to use crossovers to protect the factory
speakers.
4
Not Used
Not Used
Left Rear Tweeter (+)
REV. 08/22/11
1-800-221-0932
©Copyright 2007-2009 Metra Electronics Corporation
70-6514
K P
NOWLEDGE IS OWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
INST70-6514
www.axxessinterface.com
CHRYSLER, DODGE

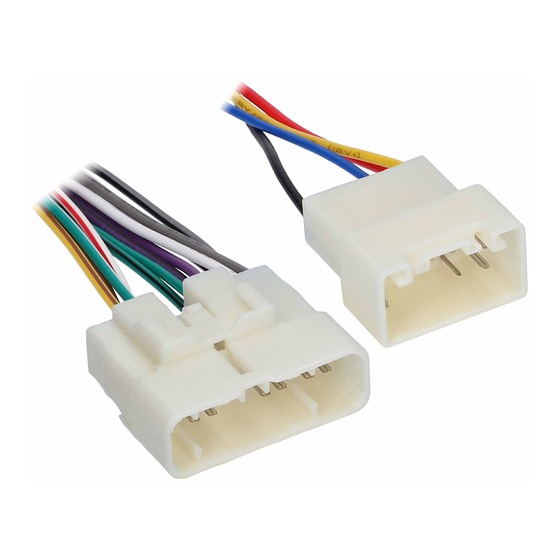

AMPLIFIER BYPASS HARNESS
70-6514
INSTALLATION INSTRUCTIONS
APPLICATIONS:
Chrysler
300 2005-2007
Aspen 2007
Dodge
Charger 2005-2007
Dakota 2005-2007
Durango 2004-2007
Magnum 2005-2007
Ram 2006-2009
This harness is designed to be
used with all vehicles listed above
that are equipped with the
amplified Infinity sound system.
1-800-221-0932 www.axxessinterface.com
©Copyright 2007-2009 Metra Electronics Corporation
