M/B For Socket 370 Pentium
Trademark:
* Pentium is registered trademark and MMX is a trademark of Intel Corporation,
the other names and brands are the property of their respective owners
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

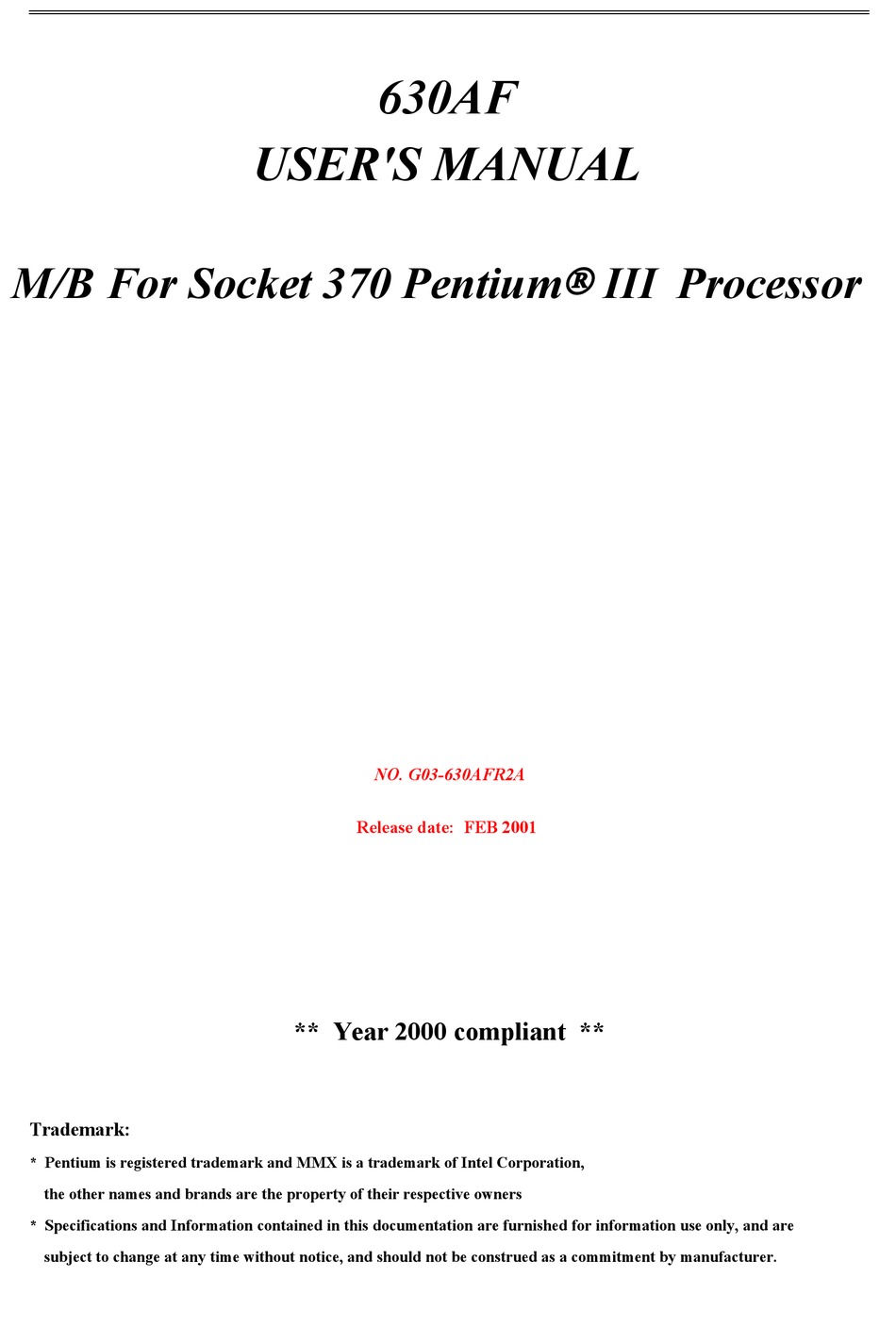

630AF
USER'S MANUAL
NO. G03-630AFR2A
Release date: FEB 2001
** Year 2000 compliant **
III
Processor
Advertisement
Table of Contents
Related Manuals for JETWAY J-630AF
Summary of Contents for JETWAY J-630AF
- Page 1 630AF USER'S MANUAL M/B For Socket 370 Pentium Processor NO. G03-630AFR2A Release date: FEB 2001 ** Year 2000 compliant ** Trademark: * Pentium is registered trademark and MMX is a trademark of Intel Corporation, the other names and brands are the property of their respective owners * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
-
Page 2: Table Of Contents
TABLE OF CONTENT USER’S NOTICE................1 MANUAL REVISION INFORMATION..........2 THERMAL SOLUTIONS ..................2 CHAPTER 1 INTRODUCTION OF 630AF MOTHERBOARD 1-1 FEATURE OF MOTHERBOARD...............3 1-2 SPECIFICATION...................4 1-3 PERFORMANCE LIST.................5 1-4 LAYOUT DIAGRAM & JUMPER SETTING..........6 CHAPTER 2 HARDWARE INSTALLATION 2-1 HARDWARE INSTALLATION STEPS............8 2-2 CHECKING MOTHERBOARD'S JUMPER SETTING......8 2-3 INSTALL CPU....................9 ... - Page 3 3-7-3 WINBOND SUPERIO DEVICE..............3-8 POWER MANAGEMENT SETUP..............34 3-8-1 PM WAKE UP EVENTS................3-9 PNP/PCI CONFIGURATION SETUP............37 3-9-1 IRQ RESOURCES..................3-10 PC HEALTH STATUS.................38 3-11 FREQUENCY/VOLTAGE CONTROL .............39 3-12 LOAD STANDARD/OPTIMIZED DEFAULTS........40 3-13 SET SUPERVISOR/USER PASSWORD............40 CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION MAGIC INSTALL SUPPORTS WINDOWS 95/98/98SE/NT4.0/2000....41 4-1 AGPVXD ........42...
-
Page 4: User's Notice
USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF MANUFACTURER. -
Page 5: Manual Revision Information
Reversion Revision History Date Second Edition Feb 2001 Item Checklist Motherboard Cable for IDE/Floppy CD for motherboard utilities □ Cable for USB Port 3/4 (Option) Cable for COM2 User’s Manual Intel Processor Family Thermal Solutions As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. -
Page 6: Chapter 1 Introduction Of 630Af Motherboard
Introduction of 630AF Motherboard 1-1 Feature of motherboard The 630AF motherboard is design for use Intel’s new generation Pentium processors, which utilize the Socket 370 design supports Pentium III/Celeron FC-PGA/PPGA processors, and the memory size expandable to 1.5GB. This motherboard use the newest SiS 630S chipset provides a high performance/low cost solution for socket 370 series CPUs based system, by integrating a high performance North Bridge, advanced hardware 2D/3D GUI engine and Super-South Bridge. -
Page 7: Performance List
SiS 630S Chipset Chipset Clock Generator Support 66/100/133MHz system Bus Clock (CPU Bus Clock) Support 100/133 MHz system memory clock Support 33MHz PCI Bus clock CPU Socket Support Pentium III 5001GHz processor Support Celeron 300800MHz processor ... -
Page 8: Layout Diagram & Jumper Setting
CPU: Intel PIII 866MHz FC-PGA package DRAM: 128M SDRAM x2 (Hyundai GM 72V66841ET75) VGA Expansion Card: On Board VGA (Driver V1.05) Hard Disk Driver: Quantum Fireball KX20A11 BIOS: Award Optimal default Win 98SE Performance Test Report Share 8M Share 16M Share 32M 3D Mark 99 2406... - Page 9 Jumpers Jumper Name Description Page CPU & SDRAM Frequency Setting 3-pin Block Keyboard Power ON Function Setting 3-pin Block CMOS RAM Clear 3-pin Block...
-
Page 10: Chapter 2 Hardware Installation
Connectors Connector Name Description Page ATX Power Connector 20-pin Block p.16 KBMS1 PS/2 Mouse & PS/2 Keyboard 6-pin Female p.16 Connector LAN _ USB1 USB Port Connector 2x4-pin Connector p.16 PRINT Parallel Port Connector 25-pin Female p.17 VGA Port Connector 15-pin Female p.17 GAME... -
Page 11: Checking Motherboard's Jumper Setting
1. Check motherboard setting 2. Install CPU 3. Install Memory 4. Install Expansion cards 5. Connect Ribbon cables, Panel wires, and power supply 6. Setup BIOS 7. Install software driver & utility 2-2 Checking Motherboard’s Jumper Setting CPU & SDRAM Clock Setting (8-pin): JP2 The motherboard’s CPU &... -
Page 12: Install Cpu
A battery must be used to retain the motherboard configuration in CMOS RAM short 2-3 pins of JP4 to store the CMOS data. Note: You can clear CMOS by shorting 1-2 pin, while the system is off. Then return to 2-3 pin position. Avoid clearing the CMOS while the system is on, it will damage the motherboard always unplug the power cord from the wall socket. -
Page 13: Setting Cpu Bus Clock & Memory Clock Jumper
2-3-2 Setting CPU Bus Clock & Memory Clock Jumper Setting the front side bus frequency and SDRAM frequency The motherboard uses jumper JP2 for the front side bus frequency and SDRAM frequency setting as shown from the table below: CPU/SDRAM (MHz) 66/66 66/100 100/100... -
Page 14: Overclock Running
When you put the CPU into the ZIF socket. No forces require to insert of the CPU, then press the level to locate position slightly without any extra force. 2-3-4 Over clock Running WARNING! This section is for experienced motherboard installer only. Over clocking can result in system instability or even shortening life of the processor. -
Page 15: Glossary
adjust x DRAM clock at next boot is 66 MHz CPU Clock Ratio x 3.0 If you select option “NA/x12”, default HW setting is used for CyrixIII. x12 is used If Samue12 is plugged. ↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults... -
Page 16: Install Memory
other software. Processor - the "central processing unit" (CPU); the principal integrated circuit used for doing the "computing" in "personal computer" Front Side Bus Frequency The working frequency of the motherboard, which is generated by the clock generator for CPU, DRAM and PCI BUS. CPU Internal Frequency The frequency of CPU, which is also the actual working frequency of CPU. -
Page 17: Expansion Card
NOTE! When you install DIMM module fully into the DIMM socket the eject tab should be locked into the DIMM module very firmly and fit into its indention on both sides. WARNING! For the SDRAM CLOCK is set at 133MHz, use only PC133- compliant DIMMs. -
Page 18: Interrupt Request Table For This Motherboard
Floppy Disk Controller Printer Port (LPT1) System CMOS/Real Time Clock ACPI Mode when enabled 10 * IRQ Holder for PCI Steering 11 * IRQ Holder for PCI Steering 12 * PS/2 Compatible Mouse Port Numeric Data Processor 14 * Primary IDE Channel 15 * Secondary IDE Channel * These IRQs are usually available for ISA or PCI devices. - Page 19 PS/2 Mouse & PS/2 Keyboard Connector: KBMS1 The connectors for PS/2 keyboard and PS/2 Mouse. USB Port connector: LAN_USB1 The connectors are 4-pins connector that connects USB devices to the system board. Parallel Port Connector (25-pin female): PRINT Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The On-board Parallel Port can be disabled through the BIOS SETUP.
- Page 20 VGA Connector (15-pin female): VGA Audio and Game Connector: GAME This Connector has 3 phone jacks for LINE-OUT, LINE-IN, MIC and a 15-pin D-Subminiature Receptacle Connector for joystick/MIDI Device. Line-out : Audio output to speaker Line-in : Audio input to sound chip MIC : Microphone Connector Game/MIDI : For joystick or MIDI Device...
- Page 21 Floppy drive Connector (34-pin block): FDD This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives. Primary IDE Connector (40-pin block): IDE1 This connector supports the provided IDE hard disk ribbon cable.
-
Page 22: Headers
Two hard disks can be connected to each connector. The first HDD is referred to as the “Master” and the second HDD is referred to as the “Slave”. For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM drive on the same IDE channel as a hard disk. - Page 23 Reset switch lead: RESET This 2-pin connector connects to the case-mounted reset switch for rebooting your computer without having to turn off your power switch. This is a preferred method of rebooting in order to prolong the lift of the system’s power supply. See the figure below.
- Page 24 (11) FAN Speed Headers (3-pin): CPUFAN, SYSFAN1, SYSFAN2 These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive, while the black should be ground. Connect the fan’s plug to the board taking into consideration the polarity of connector.
-
Page 25: Starting Up Your Computer
2-7 Starting Up Your Computer 1. After all connection are made, close your computer case cover. 2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V240V or 110V120V depending on your country’s voltage used. -
Page 26: Chapter 3 Introducing Bios
is working System running at a lower frequency 6. During power-on, press <Delete> key to enter BIOS setup. Follow the instructions in BIOS SETUP. 7. Power off your computer: You must first exit or shut down your operating system before switch off the power switch. For ATX power supply, you can press ATX power switching after exiting or shutting down your operating system. -
Page 27: Getting Help
If the message disappears before your respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “RESET” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt> and <Delete>... -
Page 28: Standard Cmos Features
Standard CMOS Features Use this Menu for basic system configurations. Advanced BIOS Features Use this menu to set the Advanced Features available on your system. Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize your system’s performance. - Page 29 3-4 Standard CMOS Features The items in Standard CMOS Setup Menu are divided into several categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
-
Page 30: Advanced Bios Features
If the controller of HDD interface is CD-ROM, the selection shall be “None” Access Mode The settings are Auto Normal, Large, and LBA. Cylinder number of cylinders Head number of heads Precomp write precomp Landing Zone landing zone Sector number of sectors 3-5 Advanced BIOS Features CMOS Setup Utility –... - Page 31 Enabled (default) Enable cache Disabled Disable cache Note: The internal cache is built in the processor. External Cache Choose Enabled or Disabled. This option enables the Level 2 cache memory. CPU L2 Cache ECC Checking Choose Enabled or Disabled. This option enables the Level 2 cache memory ECC (error check correction).
-
Page 32: Advanced Chipset Features
Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000. Security Option This category allows you to limit access to the system and Setup, or just to Setup. System The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt. -
Page 33: Advanced Dram Control
Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled. Video RAM Cacheable Select Enabled allows caching of the video BIOS, resulting in better system performance. However, if any program writes to this memory area, a system error may result. -
Page 34: Integrated Peripherals
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults 3-7 Integrated Peripherals CMOS Setup Utility – Copyright(C) 1984-2000 Award Software Integrated Peripherals > OnChip IDE Function Press Enter Item Help > OnChip Device Function Press Enter > Winbond SuperIO Device Press Enter Init Display First PCI Slot Menu Level >... -
Page 35: Onchip Ide Function
3-7-1 OnChip IDE Function CMOS Setup Utility – Copyright(C) 1984-2000 Award Software OnChip IDE Function Internal PCI/IDE Both Item Help Primary Master Auto Primary Slave Auto Secondary Master PIO Auto Menu Level >> Secondary Slave Auto Primary Master UDMA Auto Primary Slave UDMA Auto... -
Page 36: Onchip Device Function
detection of the optimal number of block read/writes per sector the drive can support. The settings are: Enabled, Disabled. 3-7-2 OnChip Device Function CMOS Setup Utility – Copyright(C) 1984-2000 Award Software OnChip Device Function AC97 Sound Device Enabled Item Help Game Port Address Midi Port Address Midi Port IRQ... - Page 37 Onboard Serial Port 2 2F8/IRQ3 Menu Level >> UART 2 Mode Normal RxD,TxD Active Hi,Hi IR Transmission Delay Enabled IR Duplex Mode Half Use IR Pins IR-Rx2Tx2 Onboard Parallel Port 378/IRQ7 Parallel Port Mode EPP Mode Select EPP1.7 ECP Mode Use DMA ↑↓→←...
-
Page 38: Power Management Setup
screen: “EPP Mode Select.” At this time either EPP 1.7 spec. or EPP 1.9 spec. can be chosen. 3-8 Power Management Setup The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use. CMOS Setup Utility –... -
Page 39: Pm Wake Up Events
Power Button Function Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state. The settings are: Delay 4 Sec, Instant-Off. PM Wake-Up Events Please refer to section 3-8-1 3-8-1 PM Wake up Events CMOS Setup Utility –... -
Page 40: Pnp/Pci Configuration Setup
You can choose which month the system will boot up. Set to 0, to boot every day. Time(hh:mm:ss) Alarm You can choose what hour, minute and second the system will boot up. Note: If you have change the setting, you must let the system boot up until it goes to the operating system, before this function will work. -
Page 41: Irq Resources
field (a sub menu is preceded by a “>”). The settings are: Auto(ESCD), Manual. IRQ Resources When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt. Please refer to section 3-9-1 PCI/VGA Palette Snoop Leave this field at Disabled. -
Page 42: Frequency/Voltage Control
5VSB(V) 5.45V ↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults Show PC Health in Post During Enabled, it displays information list below. The choice is either Enabled or Disabled Current CPU Temperature/Current System Temp/Current CPUFAN, SYSFAN Speed/ Vcore/ Vcc/3.3V/+5V/+12V/-12V/5VSB(V) This will show the CPU/System voltage chart and CPUFAN, SYSFAN1 Speed. -
Page 43: Load Standard/Optimized Defaults
1. When Host clock setting between 66MHz to 99MHz the DRAM clock can setting Synchronous from 66MHz to 99MHz or Asynchronous from 100MHz to 132MHz. 2. When Host clock setting between 100MHz to 120MHz the DRAM clock can setting Synchronous from 100MHz to 120MHz, or Asynchronous from 133MHz to 160MHz. 3. -
Page 44: Chapter 4 Driver & Free Program Installation
Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security option. -
Page 45: Agpvxd
3. SOUND Install On-chip AC’97 Audio driver 4. PC-HEALTH Install Winbond Hardware Doctor Monitoring Software 5. PC-CILLIN Install PC-CILLIN2000 Anti-virus program 6. AUDIORACK Install Sound Application software 7. BROWSE CD To browse the contents of the CD 8. EXIT To exit from Magic Install menu 4-1 AGPVXD Install SiS 630 AGPVXD Driver The AGPVXD Driver Is Only For AGP Slot VGA CARD User, On Board VGA User No... -
Page 46: Vga
my computer now and click Finish to the path For the file to be stored complete setup 4-2 VGA Install SiS 630 VGA Driver The path of the file: for WINDOWS 9X is X:\SIS630\VGA\WIN9X\SETUP.EXE (including WIN95/98/ 98SE/ME) for WIN95NT4.0 is X:\SIS630\VGA\WINNT40 for WINDOWS 2000 is X:\SIS630\VGA\WIN2000\SETUP.EXE for LINUX is X:\SIS630\LINUX A. -
Page 47: Install Sis 7018 Ac'97 Audio Driver And Application Software
of Setup: Typical, Compact, Custom Program Folder listed. Click Next to continue, and after “Start Copying Files” Please choice Typical and Click Next to window appears click Next continue step System starting install VGA driver Install Microsoft Direct X After Setup complete please select restart my computer now and click Finish to complete setup 4-3 SOUND... - Page 48 Click SOUND when Magic Install Menu Click Next when SiS PCI Audio Driver window appears Setup window appears Click Next to install the driver in Select restart my computer now and click Program Files Folder Finish to complete setup After restart computer the system will Click Audio Rack when Magic Install auto detect SiS 7018 Audio Driver and Menu appears...
-
Page 49: Pc-Health Winbond Hardware Doctor Monitoring Software
Run Programs Audio Rack will show next screen 4-4 PC-HEALTH Winbond Hardware Doctor Monitoring Software The path of the file is X:\SIS630\HEALTH-W\SETUP.EXE (Only support WINDOWS 95/98/98SE/ME) In Windows 95/98 Winbond Hardware Doctor Monitoring Software needs some system files to copy in Utility that’s why it needs install PC-HEALTH twice to complete setup. -
Page 50: How To Utilize Pc-Health
Click the Button to start installation Select Program Group name or enter a new group name, click continue to setup and click OK after setup complete 4-4-1 How To Utilize PC-HEALTH 2. After executing Winbond Hardware 1. Click Program Winbond Hardware Doctor it supports system voltage, Fan Doctor ... - Page 51 Click PC-CILLIN when MAGIC Click NEXT when PC-CILIN 2000 INSTALL MENU Appears SETUP APPEARS. Then click YES when the announcement of copywrite appears. Software is starting to detect HD for virus Click NEXT and Enter User Click NEXT and Choose all Internet Information, Click NEXT or choose Protection BROWSE to change the path For the file...
-
Page 52: How To Disable On-Board Sound
If you want to make a rescue disc, insert Setup Complete and click Finish a 1.44 MB disc Enter Your name and E-mail address 10. After install PC-cillin 2000 complete we Register PC-cillin 2000 or Click Cancel recommend select update item to Register Later download newest virus code and setting Auto refresh virus code... - Page 53 STEP 3. Copy latest BIOS for 630AF from our web site to your boot disc. STEP 4. Insert your boot disc into A:, start the computer, type “Awdflash A:\630AFxxx.BIN /SN/PY/CC/R” 630AFxxx.BIN is the file name of latest BIOS it can be 630AFA03.BIN or 630AFB02.BIN SN means don’t save existing BIOS data PY means renew existing BIOS data...
