JETWAY 695AS User Manual

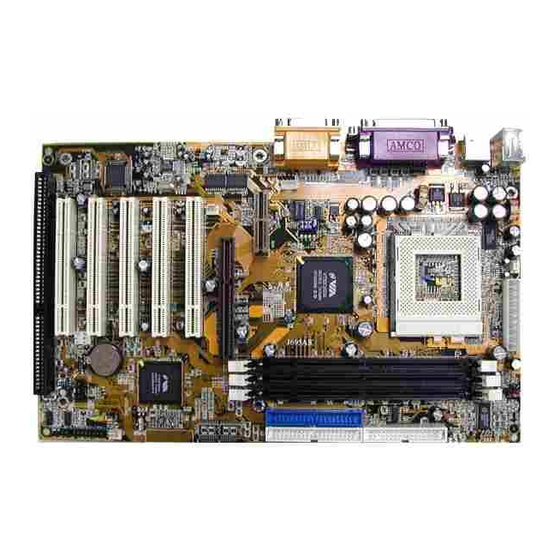

M/b for socket 370 pentium iii processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

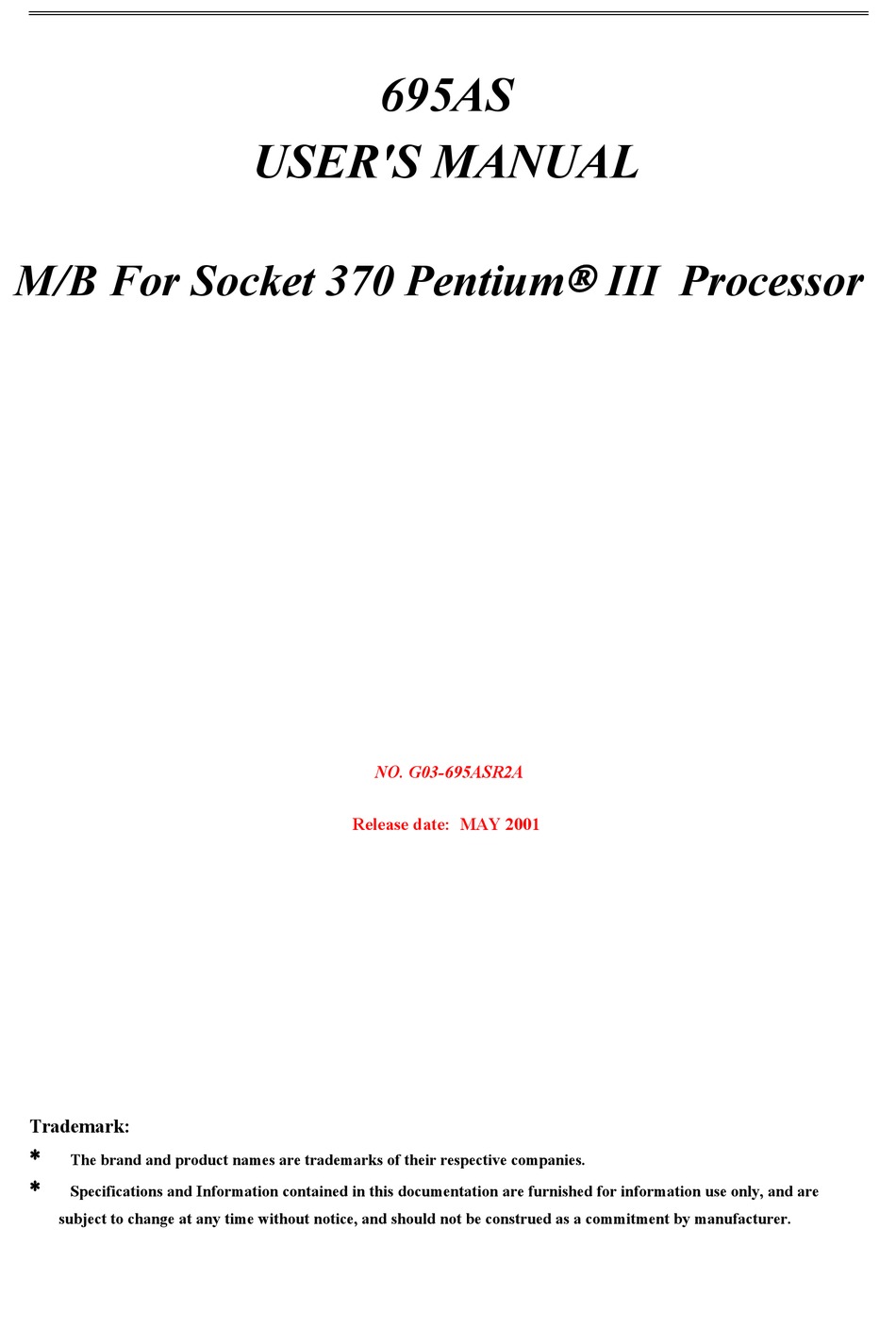

M/B For Socket 370 Pentium
Trademark:
The brand and product names are trademarks of their respective companies.
Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
695AS
USER'S MANUAL
NO. G03-695ASR2A
Release date: MAY 2001
III
Processor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 695AS and is the answer not in the manual?

Questions and answers

Related Manuals for JETWAY 695AS

Summary of Contents for JETWAY 695AS

  • Page 1 695AS USER'S MANUAL   M/B For Socket 370 Pentium Processor NO. G03-695ASR2A Release date: MAY 2001 Trademark:  The brand and product names are trademarks of their respective companies.  Specifications and Information contained in this documentation are furnished for information use only, and are...

  • Page 2: Table Of Contents

    TABLE OF CONTENT USER’S NOTICE................1 MANUAL REVISION INFORMATION..........2 COOLING SOLUTIONS..................2 CHAPTER 1 INTRODUCTION OF 695AS MOTHERBOARD 1-1 FEATURE OF MOTHERBOARD...............3 1-2 SPECIFICATION...................4 1-3 PERFORMANCE LIST.................5 1-4 LAYOUT & JUMPER SETTING..............6 CHAPTER 2 HARDWARE INSTALLATION 2-1 HARDWARE INSTALLATION STEPS............8 2-2 CHECKING MOTHERBAORD'S JUMPER SETTING......8 2-3 INSTALL CPU....................10...
  • Page 3 3-7-3.1 ONCHIP SOUND FUNCTION............. 3-8 POWER MANAGEMENT SETUP..............36 3-8-1 WAKE UP EVENTS................37 3-8-1.1 IRQS ACTIVITY................3-9 PNP/PCI CONFIGURATION SETUP............39 3-10 PC HEALTH STATUS.................40 3-11 MISCELLANEOUS CONTROL ..............40 3-12 LOAD STANDARD/OPTIMIZED DEFAULTS........41 3-13 SET SUPERVISOR/USER PASSWORD............41 CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION MAGIC INSTALL SUPPORTS WINDOWS 95/98/98SE/NT4.0/2000....43 4-1 IDE ........44...

  • Page 4: User's Notice

    MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF MANUFACTURER. THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE 695AS MOTHER- BOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE.
  • Page 5 Cable for IDE/Floppy  CD for motherboard utilities □ Cable for USB Port 3/4 (Option)  695AS User’s Manual  Intel Processor Family Thermal Solutions As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. Maintaining the proper thermal environment is key to reliable, long-term system operation.

  • Page 6: Chapter 1 Introduction Of 695As Motherboard

    Sound Blaster Pro that gives you the best sound quality and compatibility. With 2 USB control as well as capability of expanding to 4 USB connectors, the 695AS meet future USB demand also this motherboard has built-in hardware monitor function. This will monitor and protect your computer.

  • Page 7: Performance List

     ATX form factor 4 layers PCB size: 30.5x19.0cm Design  VIA Apollo Pro VT82C693A/82C686A Chipset Chipset  Support Intel Pentium III /Celeron PPGA/FC-PGA CPU Socket 370  Support Cyrix M processor  Support Front Side Bus 66Mhz/100Mhz/133Mhz CPU  168-pin DIMM socket x 3 Memory Socket ...

  • Page 8: Layout & Jumper Setting

    The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) ...
  • Page 9 Jumpers Jumper Name Description Page JCK1, JCK2 CPU Bus Frequency Selection 3-pin Block p. 8...

  • Page 10: Chapter 2 Hardware Installation

    CPU Ratio Selector 2x4-pin Block p. 8 JBAT CMOS RAM Clear 3-pin Block p. 9 Connectors Connector Name Description Page POWER ATX Power Connector 20-Pin Block p.15 PS2KBMS PS/2 Keyboard/PS/2 Mouse 6-Pin Female p.15 USB1 USB Port Connector 4-Pin Connector p.16 PARALLEL Parallel Port Connector...

  • Page 11: Hardware Installation Steps

    2-1 Hardware installation Steps Before using your computer, you had better complete the following steps: Check motherboard setting Install CPU Install Memory Install Expansion cards Connect Ribbon cables, Panel wires, and power supply Setup BIOS Install software driver & utility 2-2 Checking Motherboard’s Jumper Setting 1.
  • Page 12 Table for the Pentium III and Celeron Socket 370 CPU Celeron Pentium III Pentium III Speed Ratio Speed Ratio Speed Ratio 300/66 66MHz 4.5x 500E/100 100MHz 5.0x 700E/100 100MHz 7.0x 333/66 66MHz 5.0x 533EB/133 133MHz 4.0x 733/133 133MHz 5.5x 366/66 66MHz 5.5x 550E/100...

  • Page 13: Glossary

    2-3 Install CPU 2-3-1 Glossary Chipset (or core logic)  two or more integrated circuits which control the interfaces between the system processor, RAM, I/O devises, and adapter cards. Processor slot/socket  the slot or socket used to mount the system processor on the motherboard.

  • Page 14: Over Clock Running

    This motherboard Provides a ZIF Socket 370. The CPU that comes with the motherboard should have a cooling FAN attached to prevent overheating. If this is not the case, then purchase a correct cooling FAN before you turn on your system. WARNING! Be sure that there is sufficient air circulation across the processor’s heatsink and CPU cooling FAN is working correctly, otherwise it may...

  • Page 15: Install Memory

    CyrixIII Clock Ratio Default Item Help Auto Detect DIMM/PCI Clock Enabled Spread Spectrum Disabled ** Current Host Clock is 66Mhz ** Menu Level > Host Clock at Next Boot is 66Mhz ** Current DRAM Clock is 66Mhz ** CyrixIII CPU Ratio DRAM Clock at Next Boot is 66Mhz (HOST CLK) Adjustment ↑↓→←...

  • Page 16: Expansion Card

    Figure 2-4 NOTE! When you install DIMM module fully into the DIMM socket the eject tab should be locked into the DIMM module very fimly and fit into its indention on both sides. WARNING! For the SDRAM CLOCK is set at 133MHz, use only PC133-compliant DIMMs.

  • Page 17: Interrupt Request Table For This Motherboard

    2-5-2 Assigning IRQs For Expansion Card Some expansion cards need an IRQ to operate. Generally, an IRQ must exclusively assign to one use. In a standard design, there are 16 IRQs available but most of them are already in use. Standard Interrupt Assignments Priority Standard function...

  • Page 18: Connectors, Headers

    This motherboard provides an AGP Slot, support the 1X/2X AGP VGA card. 2-6 Connectors, Headers 2-6-1 Connectors Power Connector (20-pin block) : POWER ATX Power Supply connector. This is a new defined 20-pins connector that usually comes with ATX case. The ATX Power Supply allows to use soft power on momentary switch that connect from the front panel switch to 2-pins Power On jumper pole on the motherboard.
  • Page 19 USB Port connector: USB1 The connectors are 4-pin connector that connect USB devices to the system board. PARALLEL Parallel Port Connector (25-pin female): Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The On- board Parallel Port can be disabled through the BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP”...
  • Page 20 Serial Port COMA, COMB: COM1, COM2 Both COMA & COMB are the 9-pin D-Subminiature mail connector. The On-board serial port can be disabled through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail information. Floppy drive Connector (34-pin block): FDD This connector supports the provided floppy drive ribbon cable.

  • Page 21: Headers

    Secondary IDE Connector (40-pin block): IDE2 This connector connects to the next set of Master and Slave hard disks. Follow the same procedure described for the primary IDE connector. You may also configure two hard disks to be both Masters using one ribbon cable on the primary IDE connector and another ribbon cable on the secondary IDE connector.
  • Page 22 Turbo LED switch: TURBO LED Since the motherboard’s turbo function is always on. The turbo LED will remain constantly on while the system power is on. You may wish to connect the Power LED from the system case to this lead. See the figure below. Reset switch lead: RESET This 2-pin connector connects to the case-mounted reset switch for rebooting your computer without having to turn off your power switch.
  • Page 23 (9) FAN Speed Headers (3-pin ) : FAN, CPU _ FAN, SYS _ FAN These connectors cupport cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive, while the black should be ground.

  • Page 24: Starting Up Your Computer

    2-7 Starting Up Your Computer 1. After all connection are made, close your computer case cover. 2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V240V or 110V120V depending on your country’s voltage used.

  • Page 25: Chapter 3 Introducing Bios

    If you do not see any thing within 30 seconds from the time you turn on the power. The system may have failed on power-on test. Recheck your jumper settings and connections or call your retailer for assistance. Beep Meaning One short beep when displaying logo No error during POST Long beeps in an endless loop...

  • Page 26: Entering Setup

     Press <F10> when you have completed the setup of BIOS parameters to save these parameters and to exit the BIOS Setup menu.  Press Page Up/Page Down or +/– keys when you want to modify the BIOS parameters for the active option. 3-1 Entering Setup Power on the computer and by pressing <Del>...
  • Page 27 Advanced BIOS Features Load optimized Defaults Advanced Chipset Features Load Standard Defaults Integrated Peripherals Set Supervisor Password Power Management Setup Set User Password PnP/PCI Configurations Save & Exit Setup PC Health Status Exit Without Saving Esc : Quit : Select Item ↑↓→...

  • Page 28: Standard Cmos Features

    Use this menu to load the BIOS default values that are factory settings for optimal performances system operations. Load Standard Defaults Use this menu to load the BIOS default values for the minimal/stable performance system operation. Set Supervisor/User Password Use this menu to set User and Supervisor Passwords. Save &...

  • Page 29: Advanced Bios Features

    Date The date format is <day><month><date><year>. Day of the week, from Sun to Sat, determined by BIOS. Read-only. Month The month from Jan. through Dec. Date The date from 1 to 31 can be keyed by numeric function keys. Year The year depends on the year of the BIOS.
  • Page 30 CPU L1 Cache Enabled Menu Level > CPU L2 Cache Enabled CPU L2 Cache ECC Checking Disabled Allows you to choose Processor Number Feature Disabled the VIRUS warning Quick Power On Self Test Enabled feature for IDE Hard First Boot Device Floppy disk boot sector Second Boot Device...
  • Page 31  This option is for Pentium III processor. During Enabled, this will check the CPU Serial number. Disabled this option if you don’t want the system to know the Serial number. Quick Powr On Self-Test This category speeds up Power On Self Test (POST) after you power on the computer. If this is set to Enabled.

  • Page 32: Advanced Chipset Features

    Sets the delay time after the key is held down before is begins to repeat the keystroke. The settings are 250, 500, 750, and 1000. Security Option This category allows you to limit access to the system and Setup, or just to Setup. System The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

  • Page 33: Dram Timing Settings

    DRAM Timing Settings Please refer to section 3-6-1 AGP Function Settings Please refer to section 3-6-2 Memory Hole You can reserve this area of system memory for ISA adapter ROM. When this area is reserved, it cannot be cached. The user information of peripherals that need to use this area of system memory usually discusses their memory requirements.

  • Page 34: 3-6-1.1 Dimm1/Dimm2/Dimm3 Timing Settings

    DRAM Drive Control This field let’s you choose the Memory Address, Memory Data drive current to suit your SDRAM Module, the Default setting is Auto. 3-6-1.1 DIMM1/DIMM2/DIMM3 Timing Settings CMOS Setup Utility – Copyright(C) 1984-2000 Award Software DIMM1/DIMM2/DIMM3 Timing Settings RAS Precharge Time Auto Item Help...

  • Page 35: Integrated Peripherals

    AGP Master 1 WS Write Enabled Menu Level >> AGP Master 1 WS Read Enabled ↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults Note: Change these settings only if you are familiar with the chipset. 3-7 Integrated Peripherals CMOS Setup Utility –...

  • Page 36: Onchip Sio Function

    Primary Master Auto Menu Level >> Primary Slave Auto Secondary Master PIO Auto Secondary Slave Auto Primary Master UDMA Auto Primary Slave UDMA Auto Secondary Master UDMA Auto Secondary Slave UDMA Auto IDE 32-bit Transfer Mode Enabled IDE HDD Block Mode Enabled IDE Prefetch Mode Enabled...
  • Page 37 Onboard Serial Port 2 Auto Menu Level >> UART 2 Mode Normal IR Duplex Mode Half TX,RX inverting enable No, Yes Onboard Parallel Port 378/IRQ7 Onboard Parallel Mode Parallel Port EPP Type EPP1.9 ECP Mode Use DMA ↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults...

  • Page 38: Onchip Device Function

    parallel port with the ECP feature. After selecting it, the following message will appear: “ECP Mode Use DMA” at this time, the user can choose between DMA channels 3 to 1. The onboard parallel port is EPP Spec. compliant, so after the user chooses the onboard parallel port with the EPP function, the following message will be displayed on the screen: “EPP Mode Select.”...

  • Page 39: Power Management Setup

    AC97 Sound Device Enabled Item Help Sound Blaster Disabled SB I/O Base Address 220H SB IRQ Select IRQ 5 Menu Level >>> SB DMA Select DMA 1 MPU-401 Enabled MPU-401 I/O Address 330-333H Game Port (200-207H) Enabled ↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults...
  • Page 40 F5:Previous Values F6:Optimized Defaults F7:Standard Defaults ACPI Function This item allows you to Enabled/Disabled the Advanced Configuration and Power Management (ACPI). The settings are Enabled and Disabled. Power Management This category allows you to select the type (or degree) of power saving which is directly related to the following modes: User Define(default) Allows you to set each mode individually.

  • Page 41: Wake Up Events

    Wake-Up Events Please refer to section 3-8-1 3-8-1 Wake up Events CMOS Setup Utility – Copyright(C) 1984-2000 Award Software Wake Up Events Item Help LPT & COM LPT/COM HDD & FDD DMA/Master Menu Level >> Wake-Up On Ring/LAN(WOL) Disabled Wake-Up On PCI PME Disabled Wake-Up RTC Alarm Disabled...

  • Page 42: 3-8-1.1 Irqs Activity

    IRQs Activity Please refer to section 3-8-1.1 3-8-1.1 IRQs Activity CMOS Setup Utility – Copyright(C) 1984-2000 Award Software IRQs Activity Primary INTR Item Help IRQ3 (COM 2) Primary IRQ4 (COM 1) Primary IRQ5 (LPT 2) Primary Menu Level >>> IRQ6 (Floppy Disk) Primary IRQ7...

  • Page 43: Pc Health Status

    ↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults Reset Configuration Data Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system can not boot.

  • Page 44: Miscellaneous Control

    During Enabled, it displays information list below. The choice is either Enabled or Disabled Current CPU Temperature/Current System Temp/Current FAN1, FAN2 Speed/Vcore/ Vdd/3.3V/+5V/+12V (V) This will show the CPU/FAN/System voltage chart and FAN Speed. 3-11 Miscellaneous Control This section is for setting CPU Frequency Control. CMOS Setup Utility –...

  • Page 45: Set Supervisor/User Password

    Load Standard Defaults (Y/N)? N Pressing <Y> loads the BIOS default values for the most stable, minimal-performance system operations. Load Optimized Defaults When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Load Optimized Defaults (Y/N)? N Pressing <Y>...

  • Page 46: Chapter 4 Driver & Free Program Installation

    Chapter 4 DRIVER & FREE PROGRAM INSTALLATION Check your package and there is A MAGIC INSTALL CD included. This CD consists of all DRIVERS you need and some free application programs and utility programs. In addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly.

  • Page 47: Ide Install Via Service Pack 4 In 1 Driver

    From MAGIC INSTALL MENU you may make 6 selections: 1. IDE install VIA Service Pack 4 IN 1 driver 2. PC-HEALTH install VIA PC-HEALTH hardware monitor driver 3. SOUND install AC97 Audio Codec Installing driver 4. PC-CILLIN install PC-CILLIN98 anti-virus program 5.
  • Page 48 Click IDE when MAGIC INSTALL MENU Click NEXT when VIA Service Pack Wizard appears appears This is to announce the Copy Write, click Click NEXT to choose all driver NEXT Click NEXT to Install ATAPI Vender Click NEXT to choose enabled DMA Mode Support Driver...

  • Page 49: Pc-Health Install Via Hardware Monitor Driver

    Click NEXT to Install VIA AGP VXD Click NEXT to Install VIA IRQ Routing Driver Mini port Driver Click Finish to restart computer 4-2 PC-HEALTH Install VIA Hardware Monitor Driver Click PC-HEALTH when Magic Install Click NEXT when VIA Hardware Monitor...

  • Page 50: How To Use Via Hardware Monitor Application Software

    MENU appears Wizard appears Click Next to install Driver in C:\VIAHM Click Next to use default Program Folders name 4-2-1 How To Use VIA Hardware Monitor Application Software Click Programs, VIA HM and will show next screen 4-3 Sound VIA AC97 Audio Codec Installing Driver Click SOUND when Magic Install MENU Click Next when VIA Audio Driver Wizard appears...

  • Page 51: Pc-Cillin Install Pc-Cillin98 Anti-Virus Program

    Click Next to Install VIA Audio Driver After Copy files please click finish to finish Installing System will Auto detect and find the device Wait about 1020 sec system will auto Install to copy driver Game port Joystick driver 4-4 PC-CILLIN install PC-CILLIN98 anti-virus program Click PC-CILLIN when MAGIC INSTALL Click NEXT when PC-CILIN 98 OEM MENU Appears...

  • Page 52: How To Disable On-Board Sound

    is starting to detect HD for virus Click NEXT or choose BROWSE to change Start to install the software, choose YES or the path For the file to be stored NO when asked if you want PC-CILLIN To be added in ACTIVE CHANNEL or in Your internet browser If you want to make a rescue disc, insert a Choose if you want to re-start and click...
  • Page 53 STEP 3. Copy latest BIOS for 695AS from our web site to your boot disc. STEP 4. Insert your boot disc into A:, start the computer, type “Awdflash A:\695ASxxx.BIN /SN/PY/CC/R” 695ASxxx.BIN is the file name of latest BIOS it can be 695ASA03.BIN or 695ASB02.BIN...
