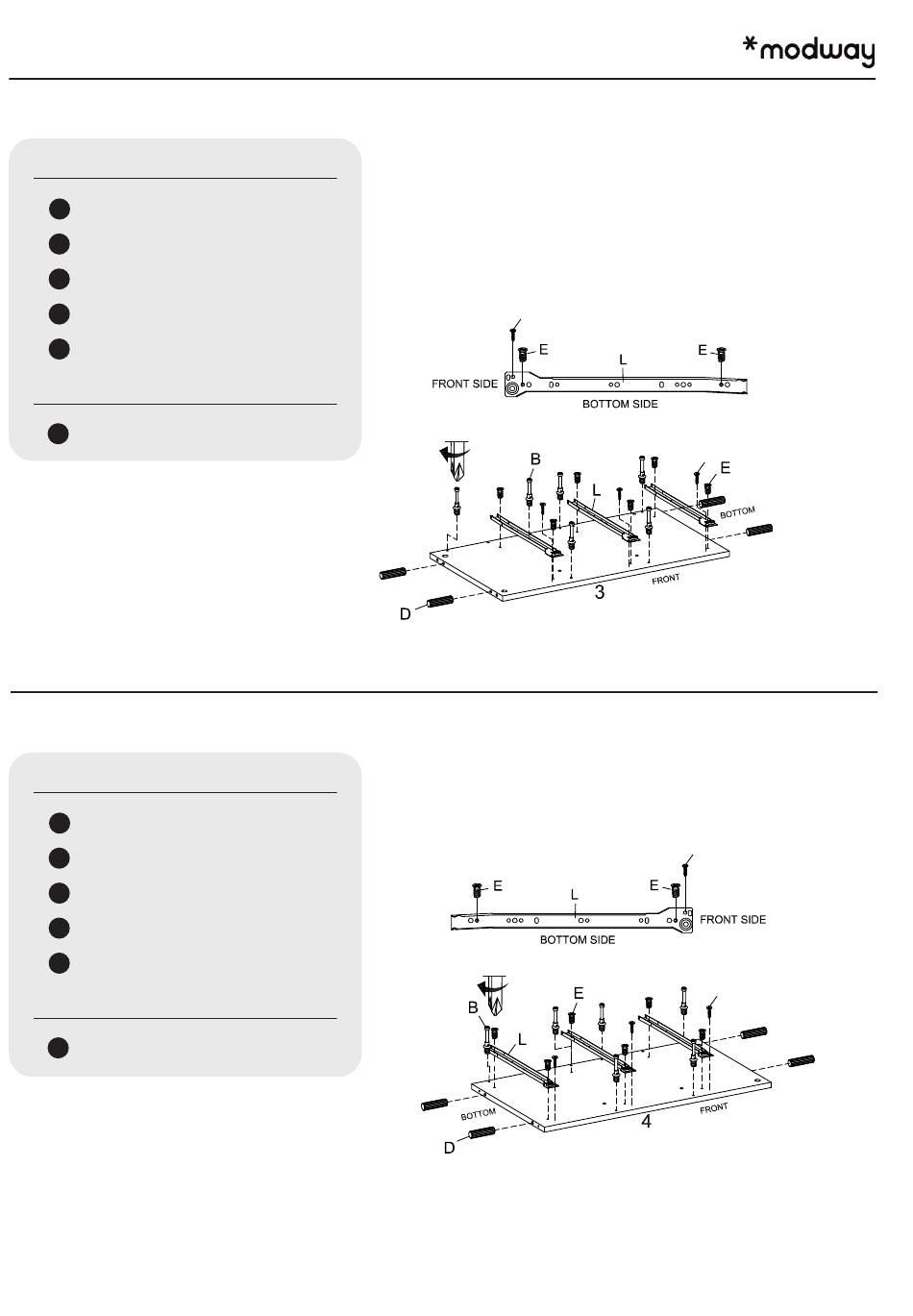

Step 3
H A R D WA R E
B
Cam Bolt Ø7.5 x 32 mm
D
Plastic Dowel Ø6 x 30 mm
E
Screw M 6 x 8 mm
L
Drawer Rail (Left)
Q
Screw M 6 x 9 mm
C O M P O N E N T S
3
Left Side Board
Step 4
H A R D WA R E
B
Cam Bolt Ø7.5 x 32 mm
D
Plastic Dowel Ø6 x 30 mm
E
Screw M 6 x 8 mm
L
Drawer Rail (Right)
Q
Screw M 6 x 9 mm
C O M P O N E N T S
4
Right Side Board
x6
x4
x6
x3
x3
x1
x6
x4
x6
x3
x3
x1
Q
Q
Q
Q
PAGE 5 OF 17
