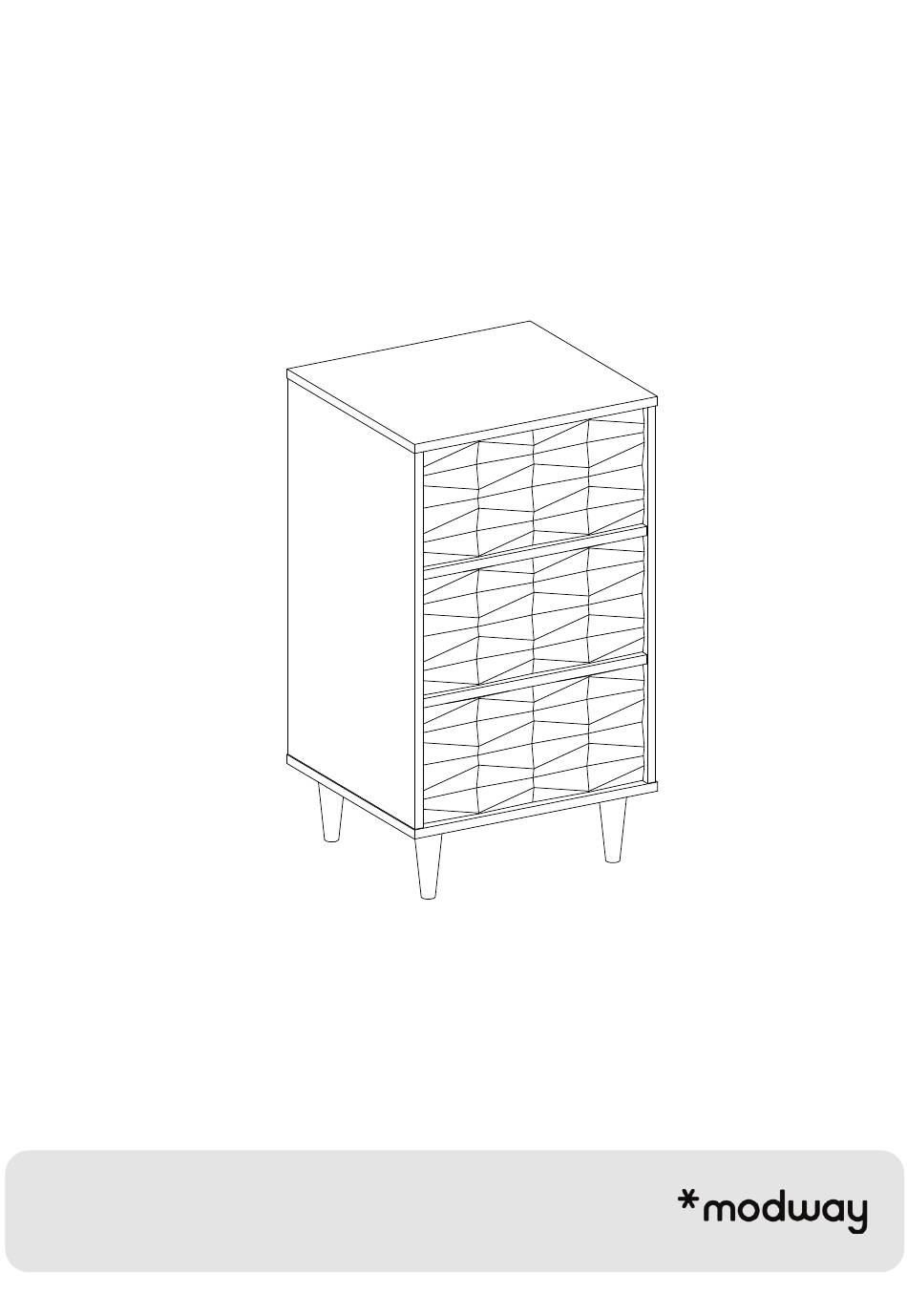

- Page 1 A S S E M B LY I N S T R U C T I O N S MOD-7081 V0.02.02.23 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: Let's Get Started
Screw M 4 x 19 mm Screw M 10 x 33.5 mm Sleeve Nut Allen Key Push to Open Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 9... - Page 3 Step 1 H A R D WA R E Cam Bolt Ø7.5 x 32 mm Plastic Dowel Ø6 x 30 mm Screw M 6 x 8 mm Push to Open C O M P O N E N T S Top Board Bottom Board Middle Support...
- Page 4 Step 3 H A R D WA R E Plastic Dowel Ø6 x 30 mm Sleeve Nut Allen Key C O M P O N E N T S Bottom Board Back Board Step 4 H A R D WA R E Cam Lock Ø15 mm Cam Cover Ø17 mm C O M P O N E N T S...
- Page 5 Step 5 H A R D WA R E Screw M 10 x 33.5 mm C O M P O N E N T S Bottom Board Left Side Board Right Side Board Back Board Step 6 H A R D WA R E Cam Lock Ø15 mm Cam Cover Ø17 mm C O M P O N E N T S...
- Page 6 Step 7 H A R D WA R E Cam Bolt Ø7.5 x 32 mm Plastic Dowel Ø6 x 30 mm C O M P O N E N T S Drawer Front Board Drawer Back Board Drawer Left Board Drawer Right Board Step 8 H A R D WA R E...
- Page 7 Step 9 H A R D WA R E Cam Lock Ø12 mm Cam Cover Ø15 mm C O M P O N E N T S Drawer Front Board Drawer Back Board Drawer Left Board Drawer Right Board Drawer Bottom Board Step 10 H A R D WA R E Screw M 4 x 19 mm...
- Page 8 Step 11 H A R D WA R E Screw M 6 x 13 mm Drawer Runner Step 12 PAGE 8 OF 9...
- Page 9 Never use harsh chemicals, as they could damage the fi nish or integrity of the item. CONNECT WITH US! Max 35Kgs Tag us @modway_furniture and #modway for a chance to be featured. Max 9.9Kgs Max 9.9Kgs Max 9.9Kgs PAGE 9 OF 9...
- Page 10 4. Lace the end of the restrains strap through the larger hole in each bracket. Ensure the restrains strap with grids surface facing the inner loops. Bring both ends together and slide the flat end through the locking end and draw it through until all slack is removed. 5. Make sure that the strap is securely laced & locked. Customer Service 609.256.9000 | www.modway.com...
