I
NSTALLING THE
Note: SFP transceivers are hot-swappable. The switch does not need to
be powered off before installing or removing a transceiver.
However, always first disconnect the network cable before
removing a transceiver.
Note: SFP transceivers are not provided in the switch package.
Connecting to a Power Source
To connect a device to a power source:
1. Insert the power cable plug directly into the socket located at the back
of the device.
2. Plug the other end of the cable into a grounded, 3-pin, AC power
source.
Note: For international use, you may need to change the AC line
3. Check the front-panel LEDs as the device is powered on to be sure
the Power LED is on. If not, check that the power cable is correctly
plugged in.
3-8
S
WITCH

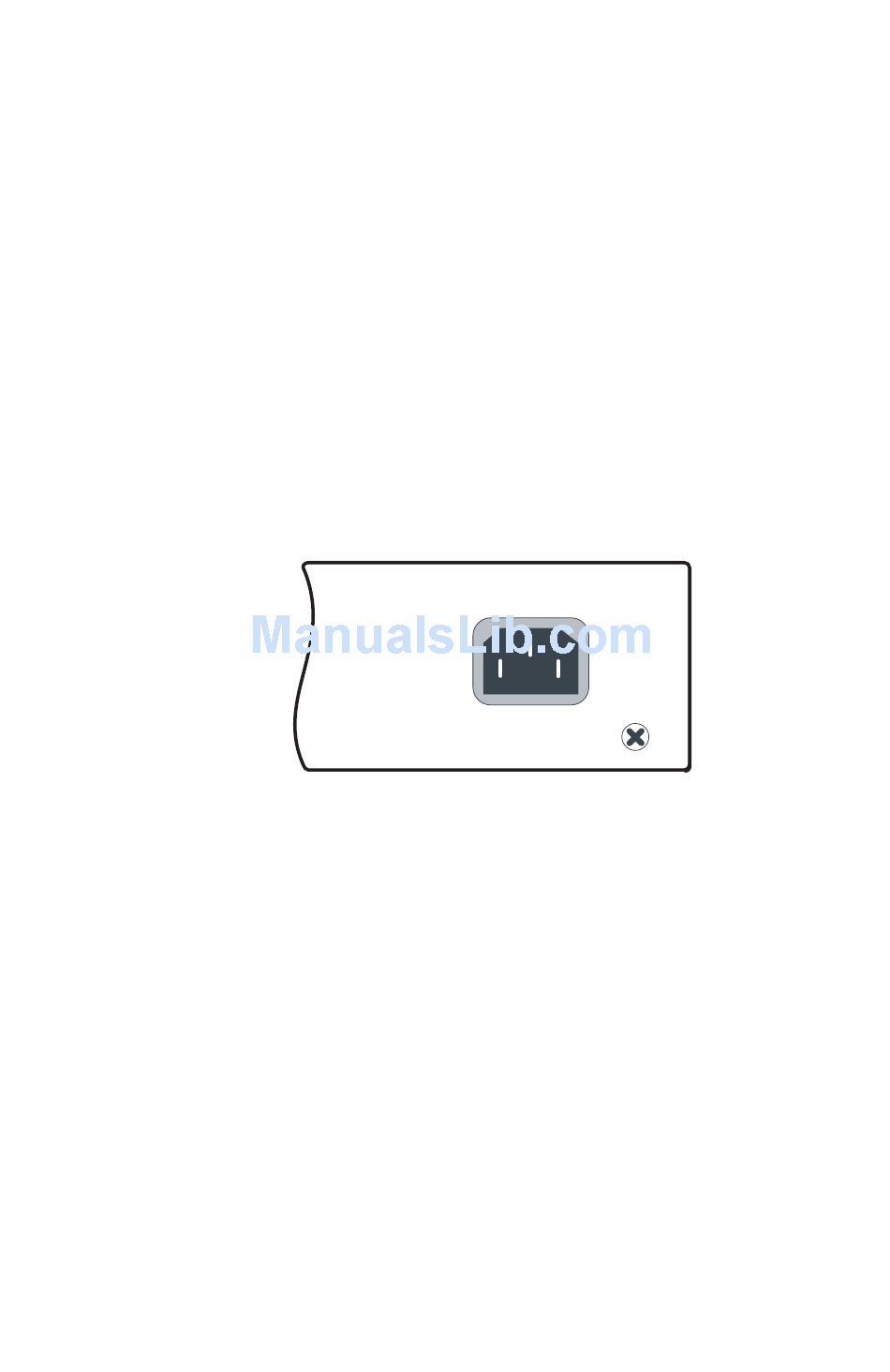

Figure 3-6 Power Socket
cord. You must use a line cord set that has been approved for
the socket type in your country.
100-240V ~50-60Hz 0.8A
