eSATA II 2-Port ExpressCard-M
Quick Installation Guide

Introducing the eSATA II 2-Port ExpressCard-M

The eSATA II 2-Port ExpressCard-M is an ultra high-speed
dual channel Serial ATA Generation 2 controller.

Features and Benefits

Adds two external (eSATA) ports to your
ExpressCard
(MacBook Pro) or desktop computer for external
drive connections
Supports data transfer speeds up to 3.0 Gbp/s
(300MB/s)
Adds high-speed, large capacity external drives via
Serial ATA(eSATA)
Compliant with Serial ATA 1.0a specification
Compliant with eSATA (external SATA) connector
specifications
Supports SATA hard disk hot-plugging
Breaks the 137GB barrier! Works with various
brands of large capacity Serial ATA hard disks

System Requirements

MacBook Pro (or newer) with an available
ExpressCard slot
Mac OS X 10.4.6 or newer
04-0436A
equipped
Mac
notebook
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-SAEE12-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIIG SC-SAEE12-S1

  • Page 1 eSATA II 2-Port ExpressCard-M Quick Installation Guide Introducing the eSATA II 2-Port ExpressCard-M The eSATA II 2-Port ExpressCard-M is an ultra high-speed dual channel Serial ATA Generation 2 controller. Features and Benefits • Adds two external (eSATA) ports to your ExpressCard (MacBook Pro) or desktop computer for external drive connections...

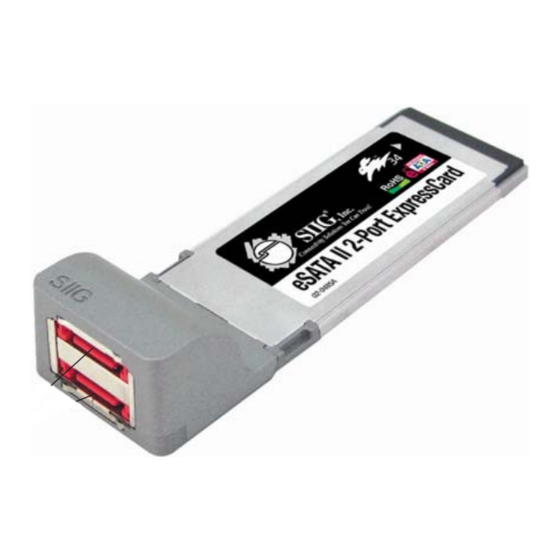

  • Page 2 Package Contents • eSATA II 2-Port ExpressCard-M • Driver CD • This quick installation guide Layout eSATA connectors Figure 1: eSATA II 2-port ExpressCard-M Hardware Installation General instructions for installing the card are provided below. Since the design of systems may vary, refer to your system’s reference manual for further information, if needed.
  • Page 3 Driver Installation After installing the ExpressCard, boot up your system. Insert the driver CD. Double click the eSATA CD icon on the desktop. Double click SIIGeSATA.pkg Click Continue, Continue. When prompted to select the destination disk to install the ExpressCard driver, choose the disk where your Mac OS is installed.
  • Page 4 External Device Connection External Serial ATA devices should come with their own accessories. In most cases, you just need to power up the external device and connect it to the external port. For more information, please refer to the external device's manual.
  • Page 5 Blank Page...
  • Page 6 Blank Page...
  • Page 7 This product comes with a lifetime manufacturer warranty. Please see SIIG website for more warranty details. If you should happen to have any problems with this product, follow the procedures below. A) If it is within the store's return policy period, please return the product to the store where you purchased from.
  • Page 8 II 2-Port ExpressCard-M is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Mac and Mac OS are registered trademarks of Apple Computer, Inc. Other names used in this publication are for identification only and may be trademarks of their respective companies.
