Trevi 213 Assembly Instructions Manual

Dear Customer
Congratulations! You have purchased a pool of superior quality and durability. To achieve the best possible results,
follow the instructions carefully. Failure to follow the installation procedures may result in damage to your pool or
property and void your warranty. We recommend that you make a preliminary study of the instruction booklet to
familiarize yourself with the different parts of your pool. Make sure that you understand each step thoroughly before
you begin assembling.
WARNING: Be sure you have read and understand the "Safety Information" sheets
before you begin your pool installation.
WARNING: For your safety, your pool is not designed for diving and/or jumping head first.
1
When selecting the site for your pool, take into account city by-
laws regarding fences and utilities laws pertaining to electrical
cables as well as the landscaping which you are planning once
the pool is installed.
1) Drive a stake into the ground at points A and B respecting the
distance of the straight section between those two points (A-B).
2) Draw two half circles respecting the radius (R).
3) Join the two half circles with straight lines respecting the width
between these two lines (D).
4) Verify that the total length is consistent. (E)

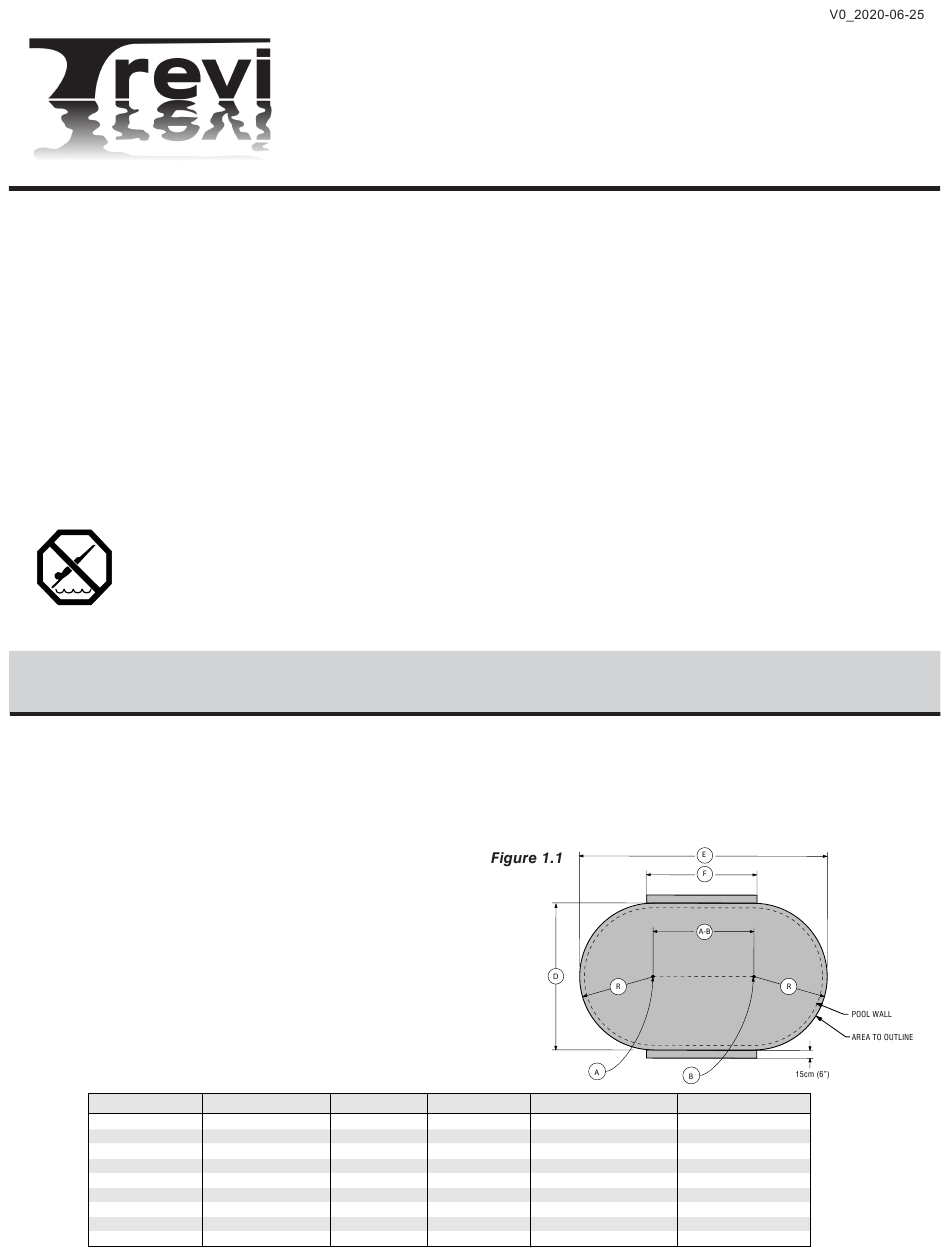

Chart 1.1 - Grass removal area (Figure 1.1)
MODEL
10'x16'
10'x19'
10'x22'
12'x18'
12'x21'
12'x24'
15'x24'
15'x30'
18'x33'
Please do not dive. Diving may result in permanent injury or death.
SITE PREPARATION
DISTANCE (A-B) RADIUS (R)
1.82m (6' 0") 1.67m (5' 6")
2.75m (9' 0") 1.67m (5' 6")
3.65m (12' 0") 1.67m (5' 6")
1.82m (6' 0")
1.98m (6' 6")
2.75m (9' 0") 1.98m (6' 6")
3.65m (12' 0") 1.98m (6' 6")
2.75m (9' 0") 2.43m (8' )
4.57m (15' 0") 2.43m (8' )
4.57m (15' 0") 2.89m (9' 6")
ASSEMBLY INSTRUCTIONS
We wish you a most pleasant and refreshing summer.
5) Add 15cm (6") wide trenches on each side, respecting the length
(F).
6) Remove all grass from the area you have just outlined.
WIDTH (D) TOTAL LENGHT (E)
3.35m (11') 5.18m (17' 0")
3.35m (11') 6.09m (20' 0")
3.35m (11') 7.01m (23' 0")
3.96m (13') 5.79m (19' 0")
3.96m (13') 6.70m (22' 0")
3.96m (13') 7.62m (25' 0")
4.87m (16')
7.62m (25' 0")
4.87m (16') 9.44m (31' 0")
5.79m (19') 10.36m (34' 0")
OVAL POOLS
Trevi 211 / 213
CORRIDOR (F)
2.08m (6' 10")
2.99m (9' 10")
3.91m (12' 10")
2.08m (6' 10")
2.99m (9' 10")
3.91m (12' 10")
2.99m (9' 10")
4.82m (15' 10")
4.82m (15' 10")
