Dear Customer
Congratulations! You have purchased a pool of superior quality and durability. To achieve the best possible results,
follow the instructions carefully. Failure to follow the installation procedures may result in damage to your pool or
property and void your warranty. We recommend that you make a preliminary study of the instruction booklet to
familiarize yourself with the different parts of your pool. Make sure that you understand each step thoroughly before
you begin assembling.
We strongly recommend having your pool installed by a professional.
WARNING: Be sure you have read and understand the "Safety Information" sheets
before you begin your pool installation.
WARNING: For your safety, your pool is not designed for diving and/or jumping head first.
1
When selecting a site for your pool, take into account city by-
laws regarding fences and utilities laws pertaining to electrical
cables, as well as the landscaping which you are planning once
the pool is installed.
TURF
REMOVAL DIAMETER
Please do not dive. Diving may result in permanent injury or death.
SITE PREPARATION
WALL
DIAMETER
ASSEMBLY INSTRUCTIONS
MODEL 130-178-179-180
We wish you a most pleasant and refreshing summer.

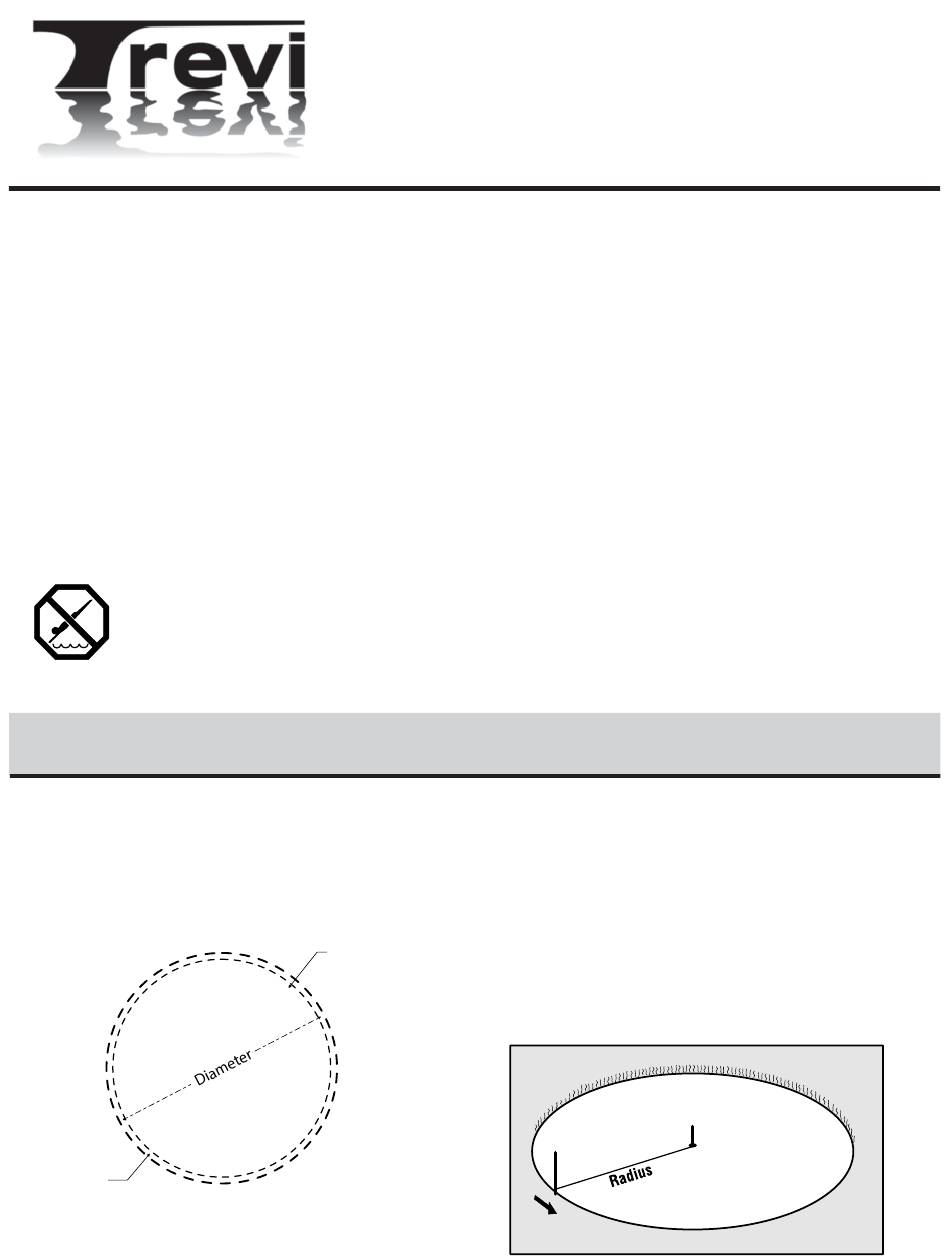

Drive a stake into the ground at the center of the site. Using a meas-
uring tape, draw a circle 15 cm to 20 cm (6" to 8") longer in radius
than the pool, depending on the width of the uprights (See Illustra-
tion 1.1).
Remove all grass from the area which you have just outlined.
Make sure to order the required quantity of sand and stone dust
(See Chart).
Illustration 1.1
40306_V7_2021-11-24
ROUND POOL
