Aztech DSL5029EN Easy Start Manual

Easy Start Guide
This Easy Start Guide will help you setup the modem and connect to the Internet . Before proceeding with the installation,
please prepare your Internet account settings given by your Internet Service Provider.
STEP 1 STEP 2
Equipment Check Setting up your
Hardware
Step 1: Equipment Check
The following items are pre-packaged with your modem.
1 2 3

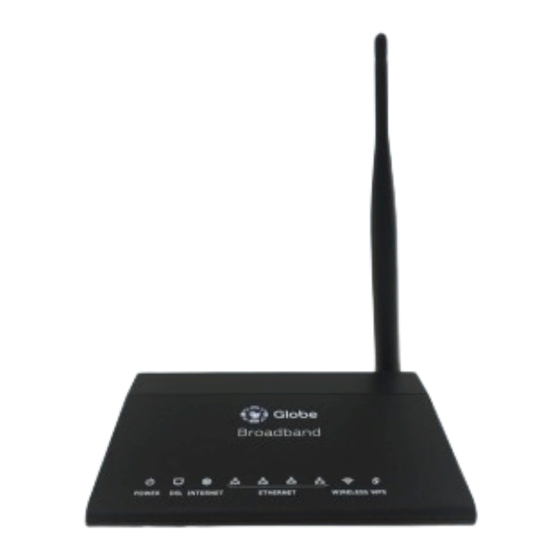

DSL5029EN(1T1R) DSL Ethernet Cable
Microfilter (RJ45)
Power LED
DSL LED
Internet LED
Step 2: Setting Up Your Hardware
A Connect the Microfilter to the Telephone Outlet.
B
Using the Telephone Cable, connect the Modem to the Microfilter.
C Using the Ethernet Cable, connect the Modem to the Computer.
D Connect the Power Adapter to the Modem.
Power ON the Modem.
E
STEP 3
Configuring the Wireless
Network Settings
4 5 6
Telephone Cable Power Easy Start
(RJ11) Adapter Guide
DSL Port
WPS
Ethernet
Status
Ports 1-4
Power Button
WiFi Status
DC Jack
Ethernet Link
Hardware Setup
D
Step 3: Configuring the Wireless Network Settings
Kindly follow the steps below in configuring your modem's Wireless
Network Settings.
TO ENABLE/DISABLE THE WIRELESS AND SSID BROADCAST:
Launch a Web Browser and input http://192.168.254.254 on the
A
address bar then press Enter. You will be redirected to the Basic
Mode of your modem's Web User Interface.
On the Web User Interface, click the Login button then input user
B
for username and user for password to login.
On the main menu, click on Setup. On the left pane, click WLAN
C
then Basic.
C
A
E
B
